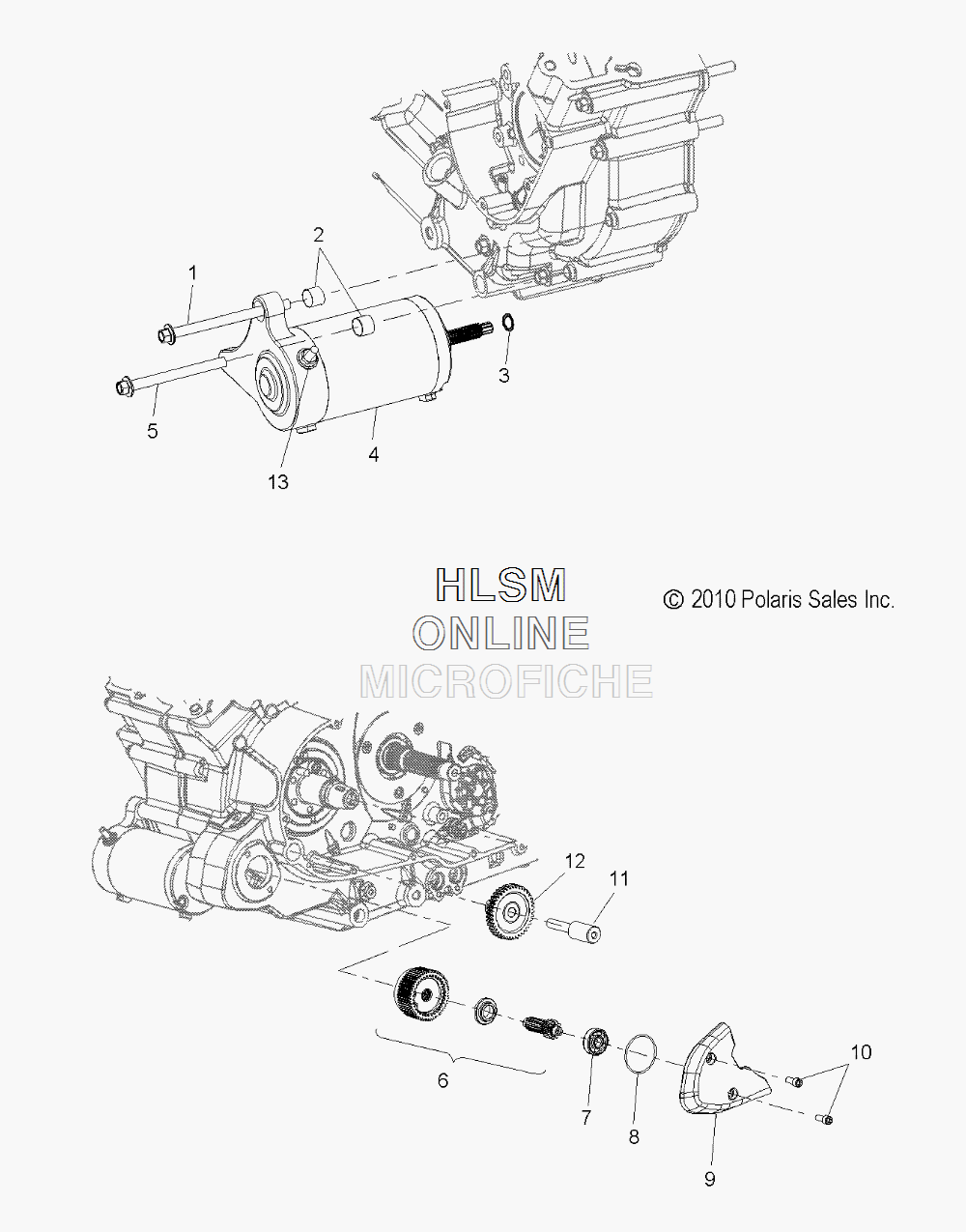

STARTING SYSTEM для Polaris HIGHBALL - 2012 года выпуска`
-
№АртикулНазвание
-
17517409 SCREWSCREW
-
27663005 DOWELDOWEL
-
35412175 O-RINGO-RING
-
44012419 STARTER, BLACKSTARTER, BLACK
-
57517719 SCREWSCREW
-
63234256 CLUTCH, TORQUE LIMITINGCLUTCH, TORQUE LIMITING
-
73513518 BEARING, BALLBEARING, BALL
-
85412531 O-RINGO-RING
-
95134218 CAP, BEARINGCAP, BEARING
-
107517272 SCREWSCREW
-
115020905 SHAFT, IDLER, MOUNTINGSHAFT, IDLER, MOUNTING
-
126230297 GEAR, IDLERGEAR, IDLER
-
137547091 NUTNUT
