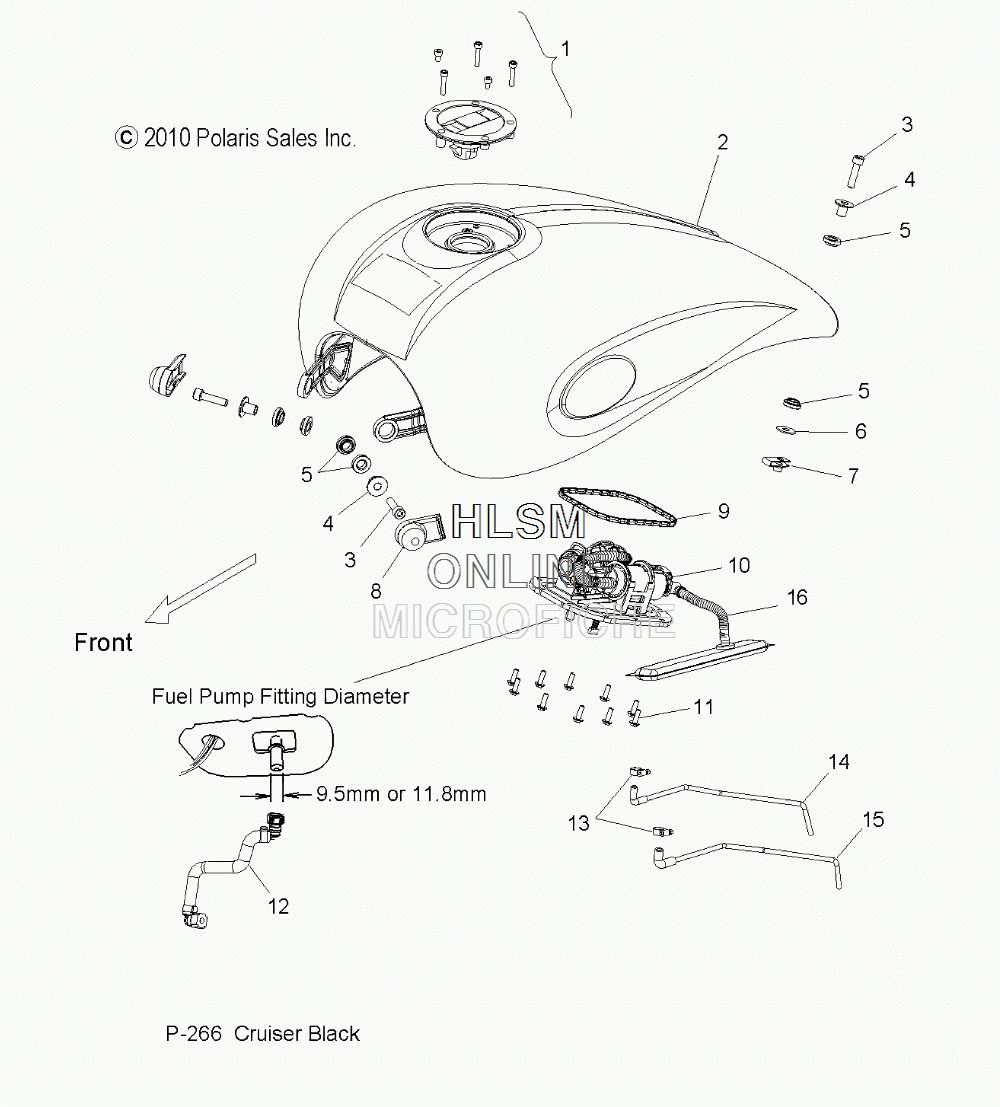

FUEL TANK для Polaris HIGHBALL - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    4012376-266 ASM., IGNITION SWITCH/FUEL CAP, BLACK
    ASM., IGNITION SWITCH/FUEL CAP, BLACK
  • 1
    4012377-266 ASM., IGNITION/FORK LOCK, INT'L, BLACK (EU) (UK)
    ASM., IGNITION/FORK LOCK, INT'L, BLACK (EU) (UK)
  • 1
    7518086 SCREW
    SCREW
  • 1
    7517845 SCREW
    SCREW
  • 1
    7517515 SCREW
    SCREW
  • 2
    1018003-1324 TANK, FUEL, SPINE, FLAT BLACK/VICTORY GRAPHICS
    TANK, FUEL, SPINE, FLAT BLACK/VICTORY GRAPHICS
  • 3
    7517525 SCREW
    SCREW
  • 4
    5136665 BUSHING, FLANGE
    BUSHING, FLANGE
  • 5
    5414144 ISOLATOR, TANK
    ISOLATOR, TANK
  • 6
    7556260 WASHER, FLAT
    WASHER, FLAT
  • 7
    7547233 U-NUT
    U-NUT
  • 8
    5412414 COVER, MOUNT, LEFT HAND
    COVER, MOUNT, LEFT HAND
  • 8
    5412415 COVER, MOUNT, RIGHT HAND
    COVER, MOUNT, RIGHT HAND
  • 9
    5413346 SEAL, FUEL, MOLDED
    SEAL, FUEL, MOLDED
  • 10
    2521169 PUMP, FUEL
    PUMP, FUEL
  • 11
    7518923 SCREW
    SCREW
  • 12
    5413413 LINE, FUEL, TANK TO FUEL RAIL (FOR 9.5 MM FUEL TANK FITTING)
    LINE, FUEL, TANK TO FUEL RAIL (FOR 9.5 MM FUEL TANK FITTING)
  • 12
    5414150 LINE, FUEL, TANK TO FUEL RAIL (FOR 11.8 MM FUEL TANK FITTING)
    LINE, FUEL, TANK TO FUEL RAIL (FOR 11.8 MM FUEL TANK FITTING)
  • 13
    7081151 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    5435764 LINE, WATER DRAIN
    LINE, WATER DRAIN
  • 15
    5437376 LINE, FUEL VENT
    LINE, FUEL VENT
  • 16
    2520909 ASM., FILTER, FUEL
    ASM., FILTER, FUEL
