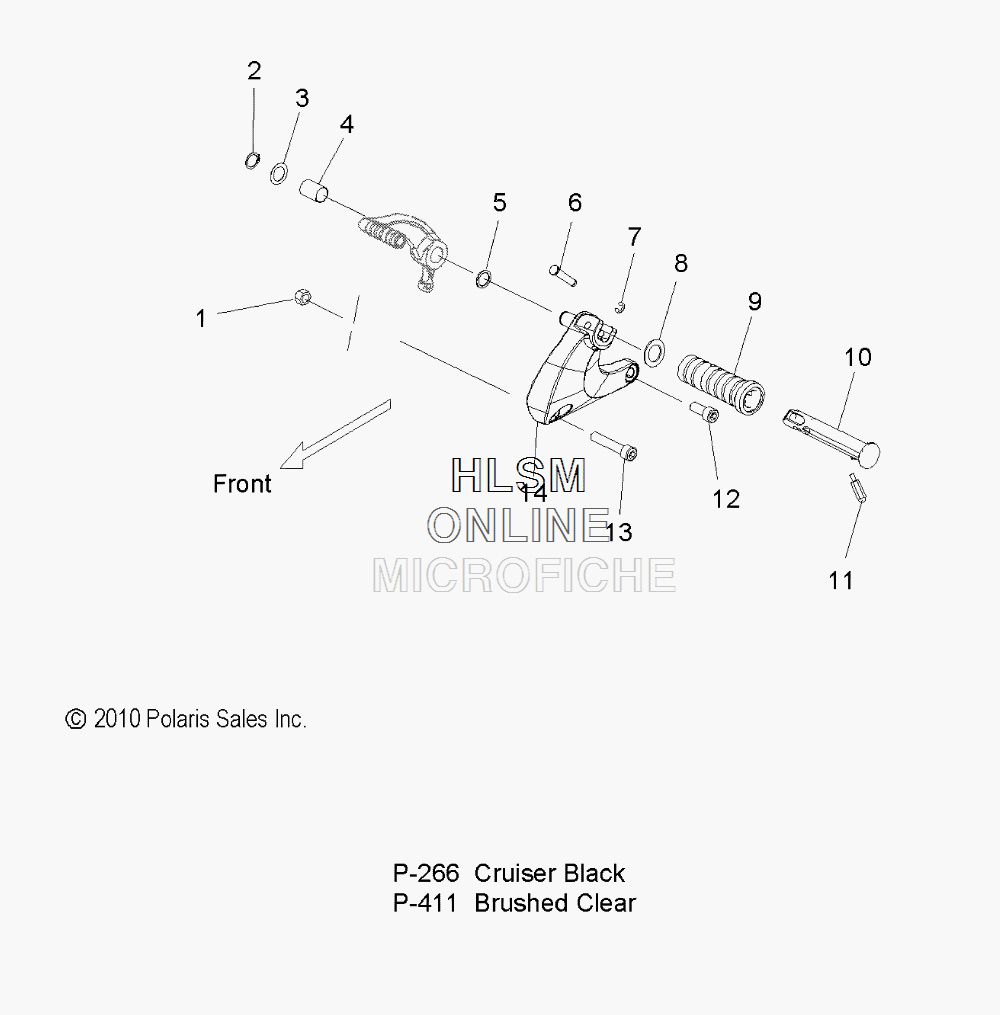

FOOTPEG- L.H. для Polaris HIGHBALL - 2012 года выпуска
-
№АртикулНазвание
-
17547039 NUTNUT
-
27710499 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
37556075 WASHER, FLATWASHER, FLAT
-
43514335 BEARING, SHIFT PEDALBEARING, SHIFT PEDAL
-
57556273 WASHER, WAVEWASHER, WAVE
-
67661980 PIN, PIVOTPIN, PIVOT
-
77710644 RING, RETAININGRING, RETAINING
-
87556274 WASHER, FOOTPEG, PIVOTWASHER, FOOTPEG, PIVOT
-
95412256 PAD, FOOTPEGPAD, FOOTPEG
-
105136035-411 FOOTPEG, LEFT HAND, BRUFOOTPEG, LEFT HAND, BRU
-
115137442 FEELER, FOOTPEGFEELER, FOOTPEG
-
127518101 SCREWSCREW
-
137518146 SCREWSCREW
-
145136080-266 SUPPORT, FOOTPEG, BLACK, LEFT HANDSUPPORT, FOOTPEG, BLACK, LEFT HAND
