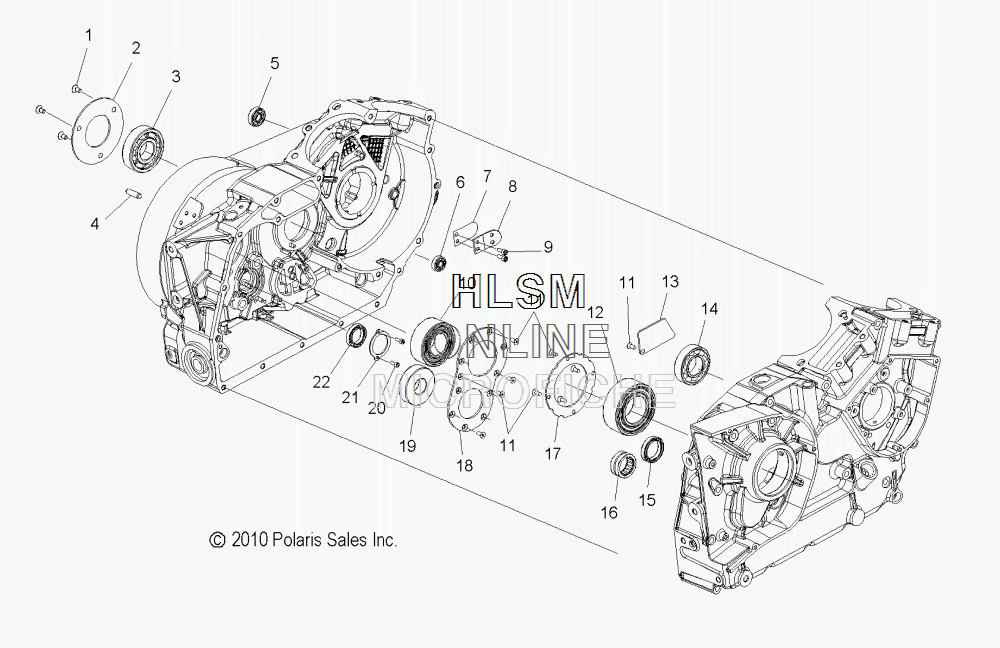

CRANKCASE BEARINGS для Polaris HIGHBALL - 2012 года выпуска
-
№АртикулНазвание
-
17517598 SCREWSCREW
-
25211773 PLATE, RETAINING, BEARING (BALANCE)PLATE, RETAINING, BEARING (BALANCE)
-
33514447 BEARING, BALLBEARING, BALL
-
47661965 DOWEL, OIL, JET COMPENSATORDOWEL, OIL, JET COMPENSATOR
-
53513518 BEARING, BALL (MAIN)BEARING, BALL (MAIN)
-
63514313 BEARING, BALLBEARING, BALL
-
75131793 PLATE, REED VALVEPLATE, REED VALVE
-
85131791 PLATE, REED BACKERPLATE, REED BACKER
-
97517276 SCREWSCREW
-
103514676 BEARING, BALL, DOUBLE ROWBEARING, BALL, DOUBLE ROW
-
117517255 SCREWSCREW
-
123514772 BEARINGBEARING
-
135131792 PLATE, BREATHER BAFFLEPLATE, BREATHER BAFFLE
-
143514426 BEARING, BALLBEARING, BALL
-
153514477 BEARING, JTBEARING, JT
-
163514467 BEARINGBEARING
-
175134240 PLATE, BEARING RETAINING, RIGHT HAND (MAIN)PLATE, BEARING RETAINING, RIGHT HAND (MAIN)
-
185136755 RETAINER, BEARINGRETAINER, BEARING
-
193514677 BEARING, BALLBEARING, BALL
-
207517797 SCREWSCREW
-
215244477 PLATE, BEARINGPLATE, BEARING
-
223513511 BEARING, BALLBEARING, BALL
