SHOCK для Polaris JACKPOT [V11XB36] - 2011 года выпуска
-

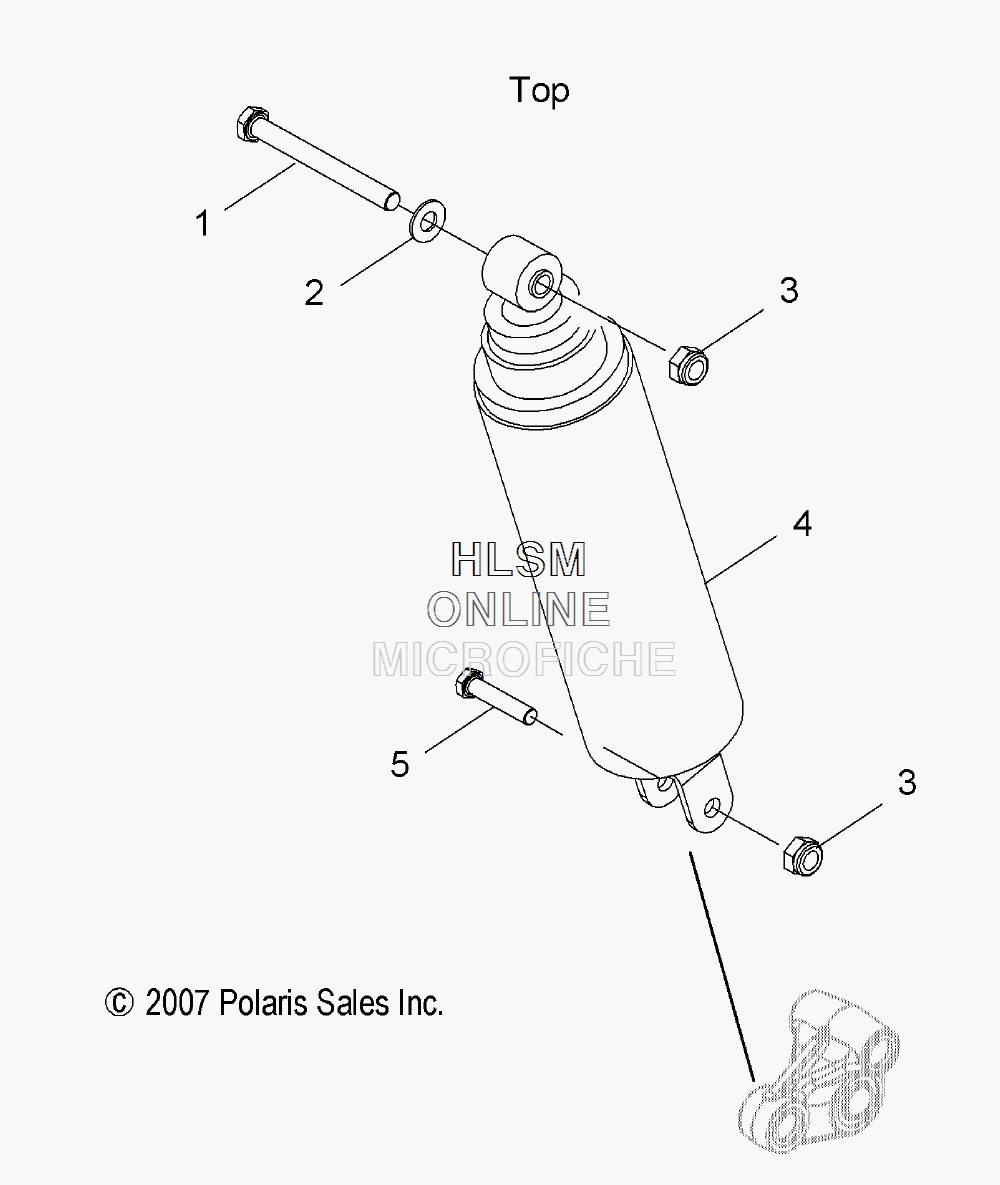

№АртикулНазвание
-
17518206 SCREW-HEXHD, M10X100-HEXHD, M10X100SCREW-HEXHD, M10X100-HEXHD, M10X100
-
27556155 WASHER, FL, 10X2WASHER, FL, 10X2
-
37547268 NUT, NYLOK M10X1.5, REFNUT, NYLOK M10X1.5, REF
-
41542197 ASM., REAR SHOCK, KYB, 38 MM, STRK, VXASM., REAR SHOCK, KYB, 38 MM, STRK, VX
-
42202501 KIT, PRELOAD RING, RETAINERKIT, PRELOAD RING, RETAINER
-
47043186 SPRING, COMPRESSION, KYB, 110 N/MMSPRING, COMPRESSION, KYB, 110 N/MM
-
57517946 SCREW-HEXHD, M10X50, 0600088SCREW-HEXHD, M10X50, 0600088
