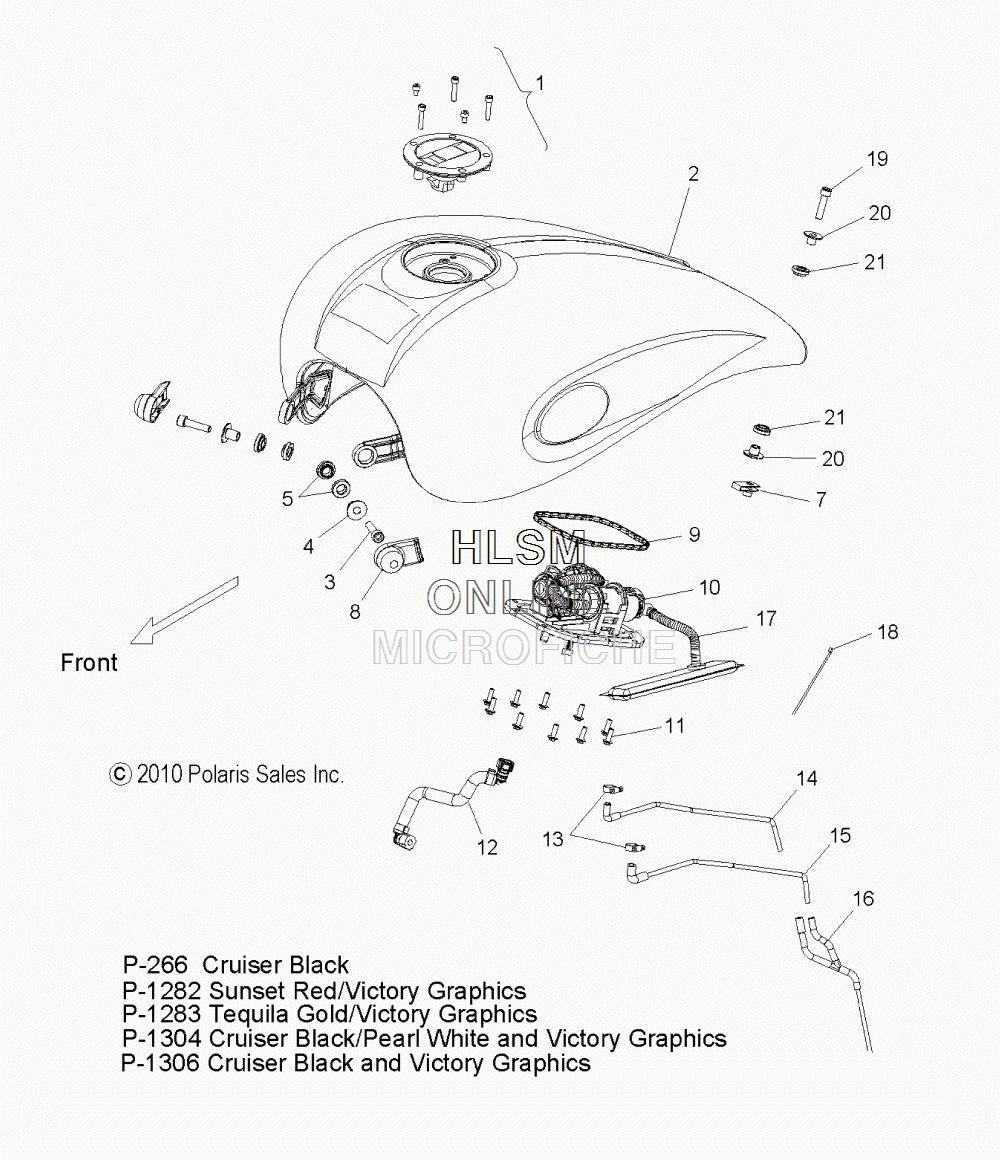

FUEL TANK для Polaris JACKPOT [V11XB36] - 2011 года выпуска
-
№АртикулНазвание
-
14012376-266 ASM., IGNITION/FUEL CAP (BLACK)ASM., IGNITION/FUEL CAP (BLACK)
-
14012377-266 ASM., IGNITION/FUEL CAP (BLACK) (INT'L)ASM., IGNITION/FUEL CAP (BLACK) (INT'L)
-
17518086 SCREW-SOCHD, M5X25SCREW-SOCHD, M5X25
-
17517845 SCREW-SOCHD, M5X12SCREW-SOCHD, M5X12
-
17517515 SCREW, SOCHD, M5X8SCREW, SOCHD, M5X8
-
21018003-266 TANK, FUEL, SPINE (CRUISER BLACK)TANK, FUEL, SPINE (CRUISER BLACK)
-
21018003-1282 TANK, FUEL, SPINE (SUNSET RED/GFX)TANK, FUEL, SPINE (SUNSET RED/GFX)
-
21018003-1283 TANK, FUEL, SPINE (TEQUILA GOLD/GFX)TANK, FUEL, SPINE (TEQUILA GOLD/GFX)
-
21018003-1304 TANK, FUEL, SPINE (BLACK/WHITE/GFX)TANK, FUEL, SPINE (BLACK/WHITE/GFX)
-
21018003-1306 TANK, FUEL, SPINE (BLACK/GFX)TANK, FUEL, SPINE (BLACK/GFX)
-
37517525 SCREW, SOCHD, M10X40SCREW, SOCHD, M10X40
-
45136665 BUSHING, FLANGE, 10.2X14X19.5BUSHING, FLANGE, 10.2X14X19.5
-
55412480 BUSHING, FLANGE, 14X20.6X9.25, RBRBUSHING, FLANGE, 14X20.6X9.25, RBR
-
77547233 NUT-U, M10X1.5, LONGNUT-U, M10X1.5, LONG
-
85412414 COVER, MOUNT (LEFT)COVER, MOUNT (LEFT)
-
85412415 COVER, MOUNT (RIGHT)COVER, MOUNT (RIGHT)
-
95413346 SEAL, FUEL, MOLDEDSEAL, FUEL, MOLDED
-
102520811 PUMP, FUEL (INCL. 17)PUMP, FUEL (INCL. 17)
-
117518923 SCREW-FLGHD, M5X16, 06000086SCREW-FLGHD, M5X16, 06000086
-
125413413 LINE, FUEL, TANK TO FUEL RAILLINE, FUEL, TANK TO FUEL RAIL
-
137081151 CLAMP-HOSE, 9-14 MM CLAMP DIACLAMP-HOSE, 9-14 MM CLAMP DIA
-
145435764 LINE, WATER DRAINLINE, WATER DRAIN
-
155437376 LINE, FUEL VENTLINE, FUEL VENT
-
165435771 LINE, WATER/FUEL TO GROUNDLINE, WATER/FUEL TO GROUND
-
172520909 ASM., FILTER, FUELASM., FILTER, FUEL
-
187080138 CABLE TIECABLE TIE
-
197517946 SCREW-HEXHD, M10X50, 0600088SCREW-HEXHD, M10X50, 0600088
-
205137570 BUSHING, FLANGE, 10.0X12X19.5BUSHING, FLANGE, 10.0X12X19.5
-
215413491 BUSHING, FLANGE, RUBBER, 12X19.5X10BUSHING, FLANGE, RUBBER, 12X19.5X10
