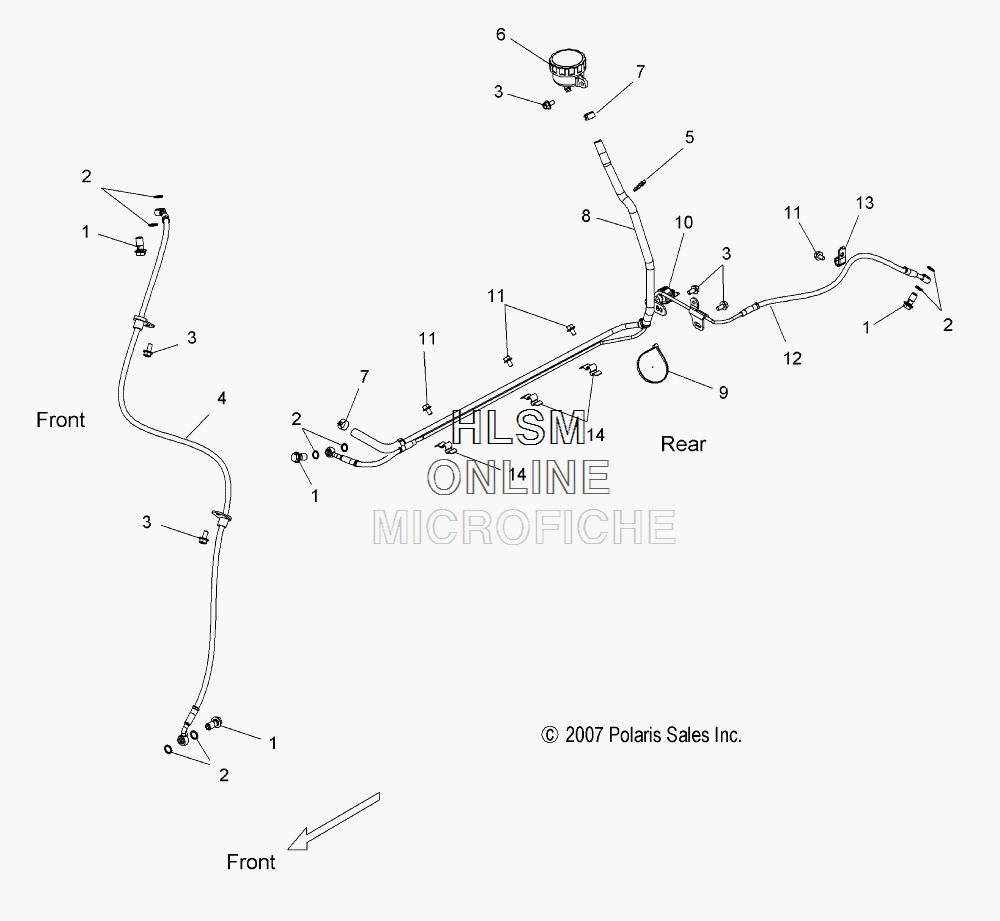

BRAKE LINES AND RESERVOIR для Polaris JACKPOT [V11XB36] - 2011 года выпуска
-
№АртикулНазвание
-
11910958 BOLT-BANJO, 10MM X 1.25-6GBOLT-BANJO, 10MM X 1.25-6G
-
27556372 WASHER, COPPER, SEALINGWASHER, COPPER, SEALING
-
37517704 SCREWSCREW
-
41911192 HOSE, BRAKE, FRONT, STDHOSE, BRAKE, FRONT, STD
-
57670116 CLIP, ROUTING, HINGEDCLIP, ROUTING, HINGED
-
61911066 RESERVOIR-REAR MCYLRESERVOIR-REAR MCYL
-
77080534 CLAMP, HOSECLAMP, HOSE
-
81911132 HOSE, RESERVOIR (FOOTPEG)HOSE, RESERVOIR (FOOTPEG)
-
97080138 CABLE TIECABLE TIE
-
104012437 SWITCH-PRESSURE, BRAKE, W/SEALNTSWITCH-PRESSURE, BRAKE, W/SEALNT
-
117518393 SCREW-HWH, THDFRM, M6-1X10 (SILVER)SCREW-HWH, THDFRM, M6-1X10 (SILVER)
-
121911091 ASM., BRAKE HOSE, REAR, PEG (FOOTPEG)ASM., BRAKE HOSE, REAR, PEG (FOOTPEG)
-
137081239 CLIPCLIP
-
147081376 CLIP, BRAKE LINECLIP, BRAKE LINE
