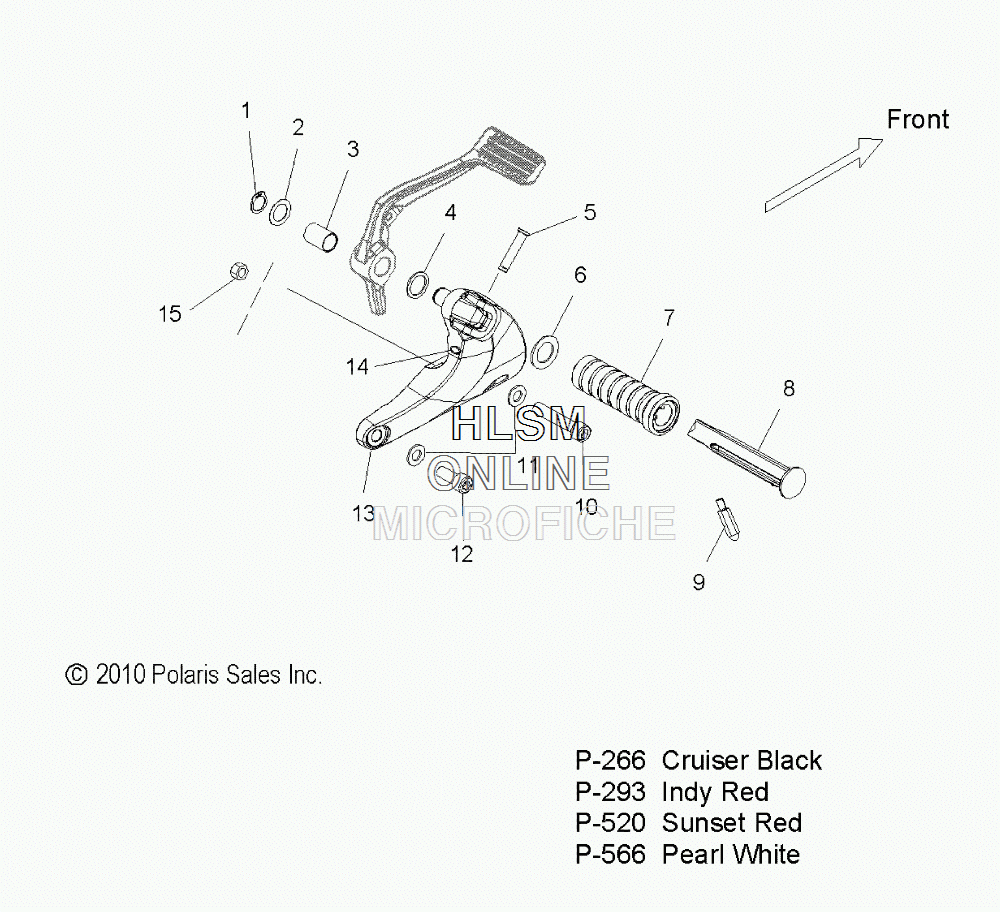

FOOTPEG- R.H. для Polaris JACKPOT [V11XB36] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7710499 RING, RETAINING, EXTERNAL, 14.7X1
    RING, RETAINING, EXTERNAL, 14.7X1
  • 2
    7556075 WASHER, FLAT, 25.4X.46X16.7
    WASHER, FLAT, 25.4X.46X16.7
  • 3
    3514490 BUSHING, FOOT PEDAL
    BUSHING, FOOT PEDAL
  • 4
    7556273 WASHER, WAVE
    WASHER, WAVE
  • 5
    7661980 PIN, PIVOT
    PIN, PIVOT
  • 6
    7556274 WASHER, PIVOT
    WASHER, PIVOT
  • 7
    5412256 PAD, FOOTPEG
    PAD, FOOTPEG
  • 8
    5136036-411 FOOTPEG (RIGHT) (BRUSHED)
    FOOTPEG (RIGHT) (BRUSHED)
  • 9
    5133539 FEELER, FOOTPEG
    FEELER, FOOTPEG
  • 10
    7518146 SCREW-SOCHD, M10X55
    SCREW-SOCHD, M10X55
  • 11
    7556234 WASHER, FLAT, 10X2
    WASHER, FLAT, 10X2
  • 12
    7518101 SCREW-SOCHD, M10X25
    SCREW-SOCHD, M10X25
  • 13
    1016659-293 SUPPORT, FOOTPEG (RIGHT) (INDY RED)
    SUPPORT, FOOTPEG (RIGHT) (INDY RED)
  • 13
    1016659-266 SUPPORT, FOOTPEG (RIGHT) (CRUISER BLACK)
    SUPPORT, FOOTPEG (RIGHT) (CRUISER BLACK)
  • 13
    1016659-520 SUPPORT, FOOTPEG (RIGHT) (SUNSET RED)
    SUPPORT, FOOTPEG (RIGHT) (SUNSET RED)
  • 13
    1016659-566 SUPPORT, FOOTPEG (RIGHT) (PEARL WHITE)
    SUPPORT, FOOTPEG (RIGHT) (PEARL WHITE)
  • 14
    7710644 RING, RETAINING, SPIRAL, EXT, SS
    RING, RETAINING, SPIRAL, EXT, SS
  • 15
    7547039 NUT
    NUT
