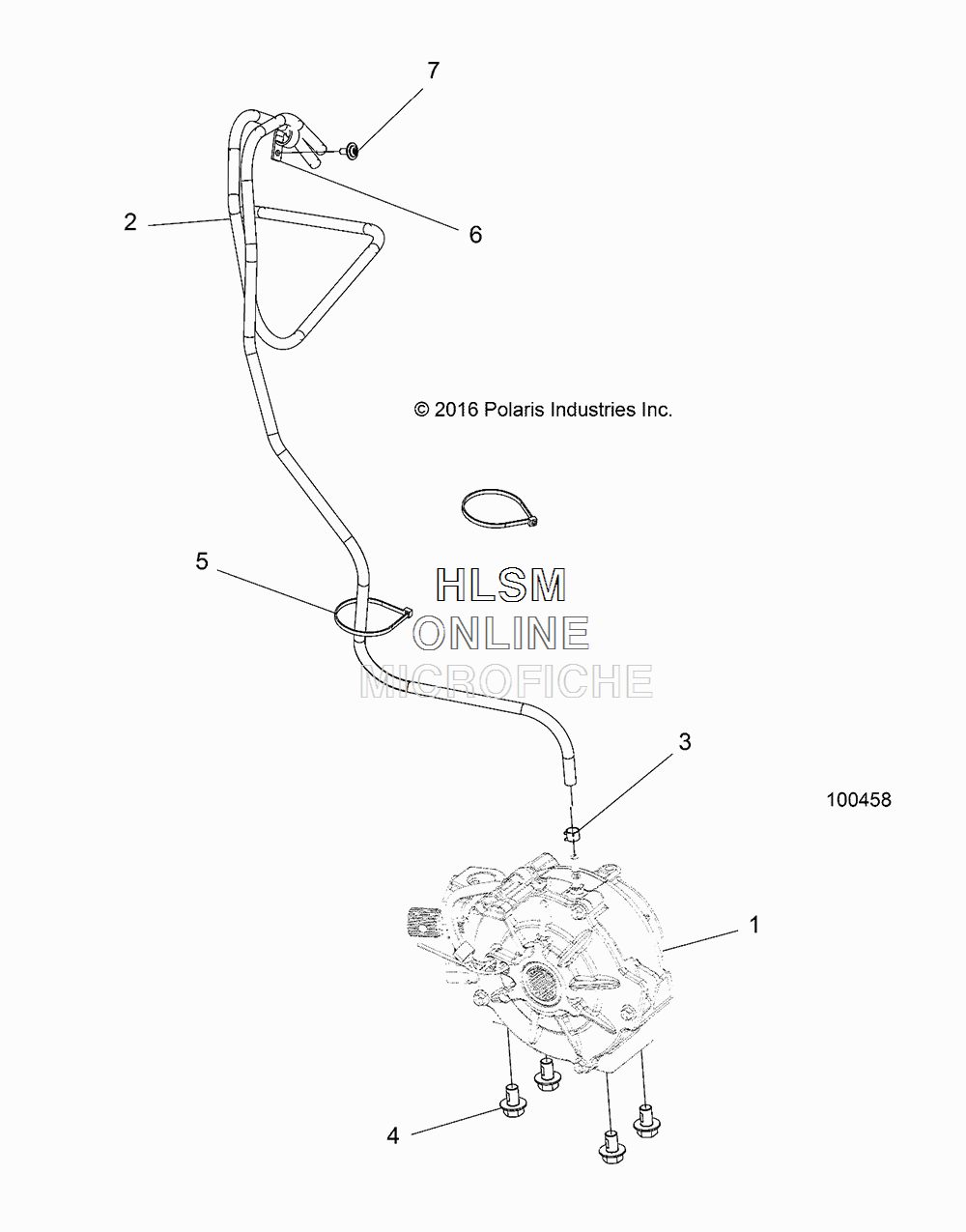

GEARCASE - FRONT - MOUNTING для Polaris SPORTSMAN 570 6X6 TRACTOR (SAGE BRUSH GREEN ) [A18S6S57C1] - 2018 года выпуска`
-
№АртикулНазвание
-
28450153-85 LINE-BOOST, 3/16 ID, 85 CMLINE-BOOST, 3/16 ID, 85 CM
-
37080307 CLAMP-HOSE, (LARGE GREEN)CLAMP-HOSE, (LARGE GREEN)
-
47520200 SCREWSCREW
-
57080138 CABLE TIECABLE TIE
-
67080585 CLAMP-HOSE PLASTIC, 1 INCLAMP-HOSE PLASTIC, 1 IN
-
77512084 SCR-10-24X1/2, PHTXTRIRD, SEMS-YSCR-10-24X1/2, PHTXTRIRD, SEMS-Y
