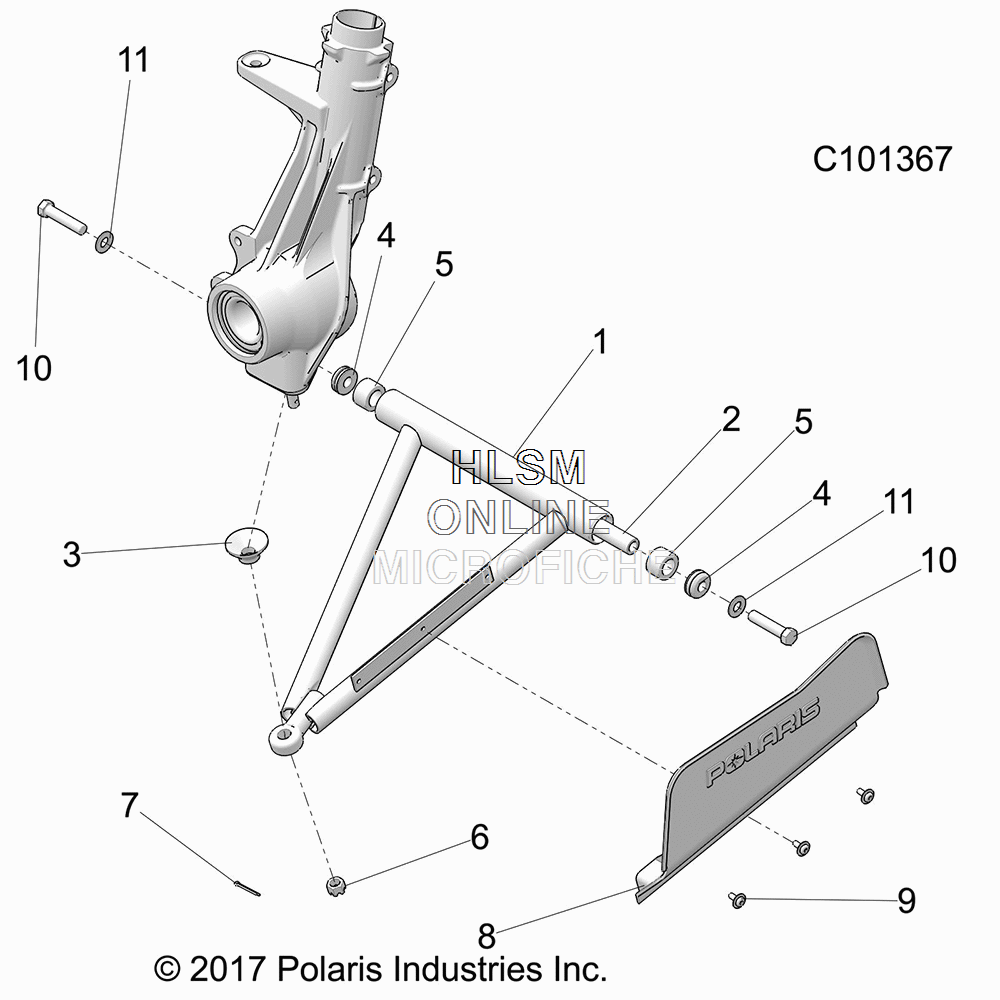

A-ARMS - MID DRIVE для Polaris SPORTSMAN 570 6X6 TRACTOR (SAGE BRUSH GREEN ) [A18S6S57C1] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1023758-458 WELD-LCA, S, FRONT, LEFT HAND, M.BLACK
    WELD-LCA, S, FRONT, LEFT HAND, M.BLACK
  • 1
    1023761-458 WELD-LCA, S, FRONT, RIGHT HAND, M.BLACK
    WELD-LCA, S, FRONT, RIGHT HAND, M.BLACK
  • 2
    5141329 SHAFT-A-ARM, SEALED, C-BORE
    SHAFT-A-ARM, SEALED, C-BORE
  • 3
    5412658 BOOT-BALLJOINT, GREASELESS, STRT
    BOOT-BALLJOINT, GREASELESS, STRT
  • 4
    1543611 ASM-PIVOT CAP, SEALED, M10
    ASM-PIVOT CAP, SEALED, M10
  • 5
    5452233 BUSHING-STANDARD, SUSP, M10
    BUSHING-STANDARD, SUSP, M10
  • 6
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 7
    7661203 PIN, COTTER
    PIN, COTTER
  • 8
    5435028-070 SHIELD, CV FRONT, BLACK, LEFT HAND
    SHIELD, CV FRONT, BLACK, LEFT HAND
  • 9
    7512084 SCREW
    SCREW
  • 10
    7520340 SCREW
    SCREW
  • 11
    7556153 WASHER-3/8 FW SAE STL THRU-HRD
    WASHER-3/8 FW SAE STL THRU-HRD
