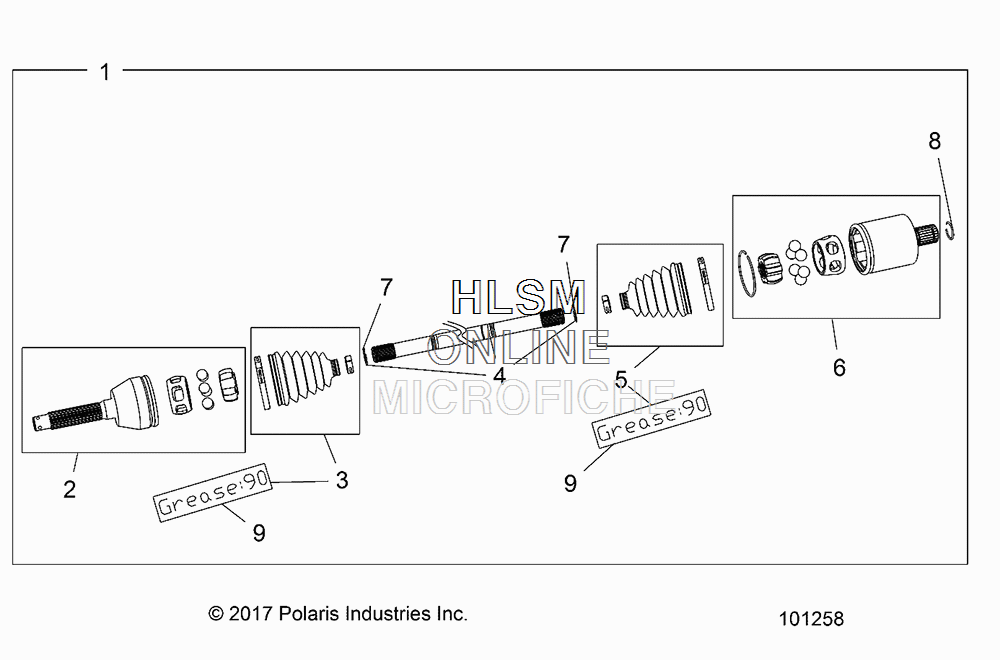

DRIVESHAFT - FRONT для Polaris SPORTSMAN 570 6X6 TRACTOR (SAGE BRUSH GREEN ) [A18S6S57C1] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1333752 ASM-DRIVE SHAFT, SPMN, FRONT (INCL. 2-9)
    ASM-DRIVE SHAFT, SPMN, FRONT (INCL. 2-9)
  • 1
    5414535 O-RING, 20.30MMX2.62MM (FOR USE ON GEARCASE END OF SHAFT)
    O-RING, 20.30MMX2.62MM (FOR USE ON GEARCASE END OF SHAFT)
  • 2
    3236089 JOINT, OUTER (INCL. JOINT COMPLETE)
    JOINT, OUTER (INCL. JOINT COMPLETE)
  • 3
    3236090 KIT, BOOT (INCL. CLAMPS, BOOT, GREASE)
    KIT, BOOT (INCL. CLAMPS, BOOT, GREASE)
  • 4
    3236091 BAR (INCL. BAR, CLIPS)
    BAR (INCL. BAR, CLIPS)
  • 5
    3236092 KIT, BOOT (INCL. CLAMPS, BOOT, GREASE)
    KIT, BOOT (INCL. CLAMPS, BOOT, GREASE)
  • 6
    3236093 JOINT, OUTER (INCL. JOINT COMPLETE)
    JOINT, OUTER (INCL. JOINT COMPLETE)
  • 7
    2205956 CIRCLIP
    CIRCLIP
  • 8
    2203445 CIRCLIP
    CIRCLIP
  • 9
    2203464 GREASE
    GREASE
