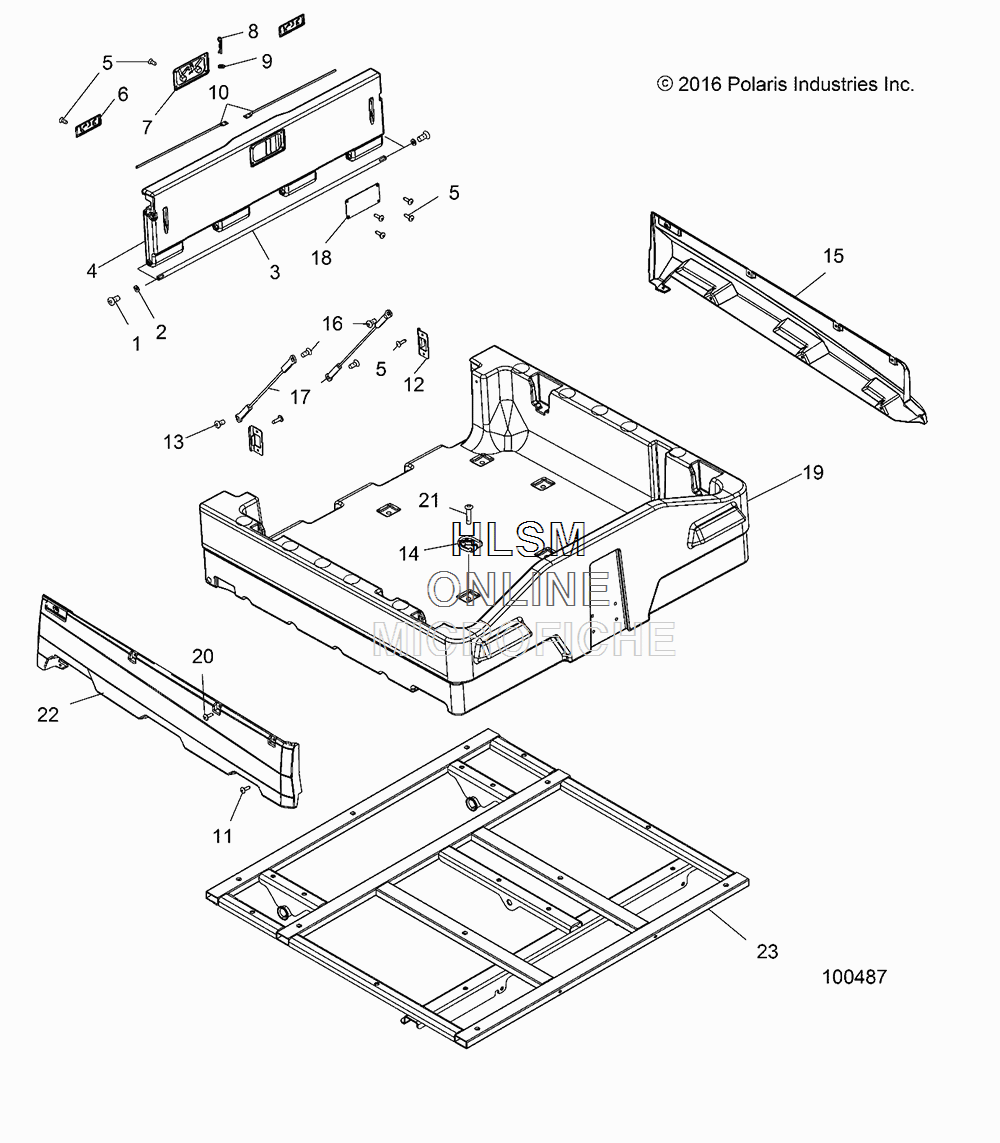

DUMP BOX ASSY. для Polaris SPORTSMAN 570 6X6 TRACTOR (SAGE BRUSH GREEN ) [A18S6S57C1] - 2018 года выпуска
-
№АртикулНазвание
-
17515177 SCREWSCREW
-
27556386 WASHERWASHER
-
35132358 ROD, HINGEROD, HINGE
-
45433388 TAILGATETAILGATE
-
57517561 SCREWSCREW
-
65433656 LATCHLATCH
-
75433655 LATCH, PADDLELATCH, PADDLE
-
87661644 PIN, HITCHPIN, HITCH
-
97556143 WASHER, RUBBERWASHER, RUBBER
-
105132373 SHAFT, LATCHSHAFT, LATCH
-
117519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBKSCR-TX TRUSS-#14X3/4, HI/LO ZBK
-
125243304 BRACKET, BOX LATCHBRACKET, BOX LATCH
-
137517938 SCREWSCREW
-
147081101 RING, TIE DOWNRING, TIE DOWN
-
155452897-070 GUARD-MUD, BOX, LEFT HAND, BLACKGUARD-MUD, BOX, LEFT HAND, BLACK
-
167517742 SCREWSCREW
-
177080881 CABLE, TAILGATECABLE, TAILGATE
-
185244068-067 COVER, TAILGATE, BLACKCOVER, TAILGATE, BLACK
-
195453029 BOX-PLASTIC, 6X6 (INCL. WARNING DECAL)BOX-PLASTIC, 6X6 (INCL. WARNING DECAL)
-
207519045 SCR-1/4-20X5/8, TORX, TRUSSSCR-1/4-20X5/8, TORX, TRUSS
-
217517686 SCREWSCREW
-
225452898-070 GUARD-MUD, BOX, RIGHT HAND, BLACKGUARD-MUD, BOX, RIGHT HAND, BLACK
-
231016881-067 SUPPORT, BOX, BLACKSUPPORT, BOX, BLACK
