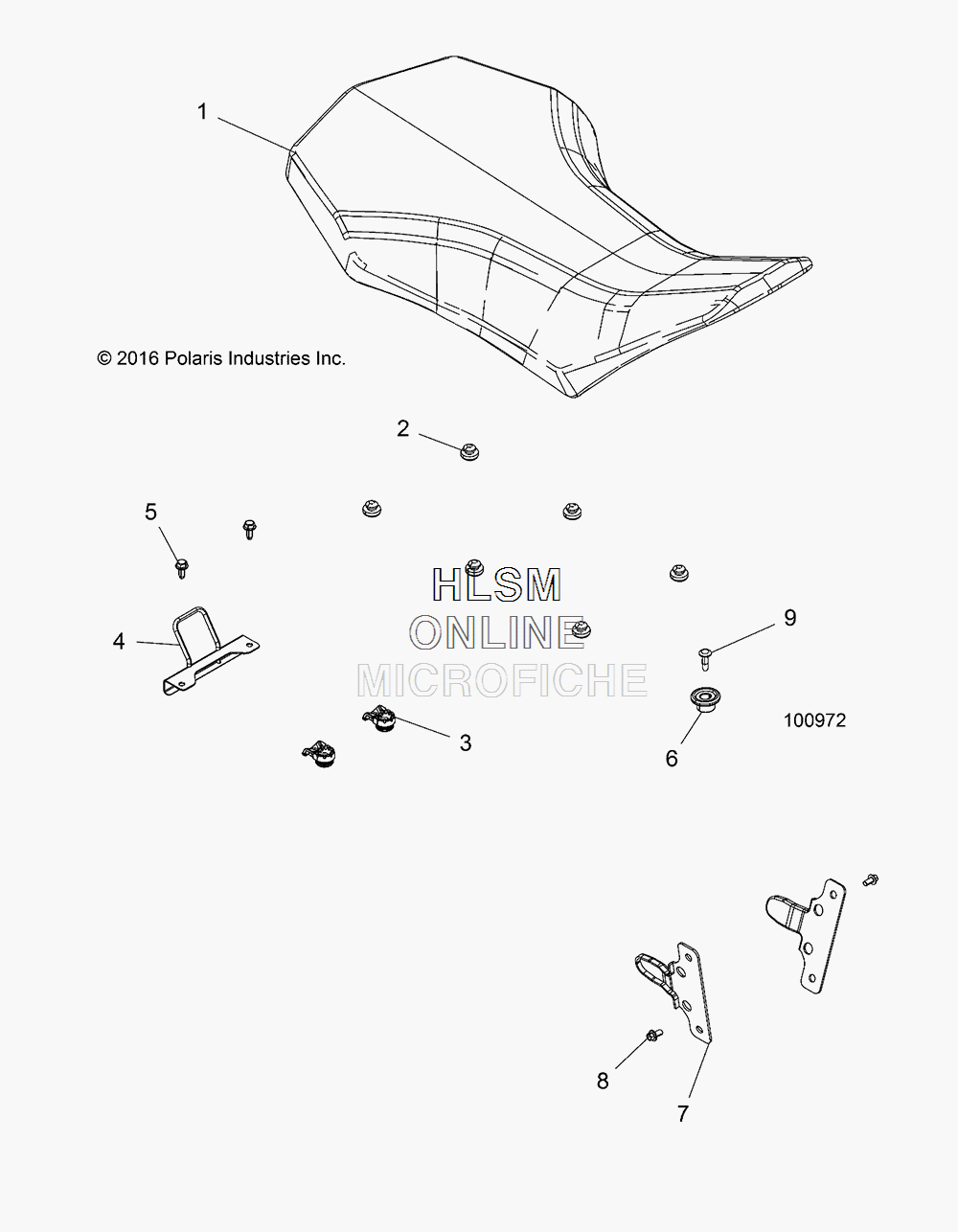

SEAT ASM. для Polaris SPORTSMAN 1000 XP ZUG (HAVASU RED PEARL) [A18SXS95FR] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2688432-070 ASM-SEAT,NAD,BLACK [INCL. 2, COVERING][FROM 10/10/2017]
    ASM-SEAT,NAD,BLACK [INCL. 2, COVERING][FROM 10/10/2017]
  • 1
    2688464-070 COVERING-SEAT,BLACK
    COVERING-SEAT,BLACK
  • 1
    2687923-070 ASM-SEAT,BLACK [INCL. 2, COVERING][TO 10/10/2017]
    ASM-SEAT,BLACK [INCL. 2, COVERING][TO 10/10/2017]
  • 1
    2687924 ASM-COVER,BLACK
    ASM-COVER,BLACK
  • 2
    5412067 BUMPER-RUBBER
    BUMPER-RUBBER
  • 3
    5415539 GROMMET-SEAT LATCH
    GROMMET-SEAT LATCH
  • 4
    1022751-067 WELD-SEAT LATCH,BLACK
    WELD-SEAT LATCH,BLACK
  • 5
    7518555 BOLT-M8X1.25X20,HXFLG
    BOLT-M8X1.25X20,HXFLG
  • 6
    5451185 MOUNT-SEAT FRONT
    MOUNT-SEAT FRONT
  • 7
    5250682 BRKT-SEAT BASE,LOCATE
    BRKT-SEAT BASE,LOCATE
  • 8
    7519045 SCR-TX TRUSS-#14X3/4,HI/LO ZBK
    SCR-TX TRUSS-#14X3/4,HI/LO ZBK
  • 9
    7517441 SCR-10X.75 TX PN PLST-243
    SCR-10X.75 TX PN PLST-243
