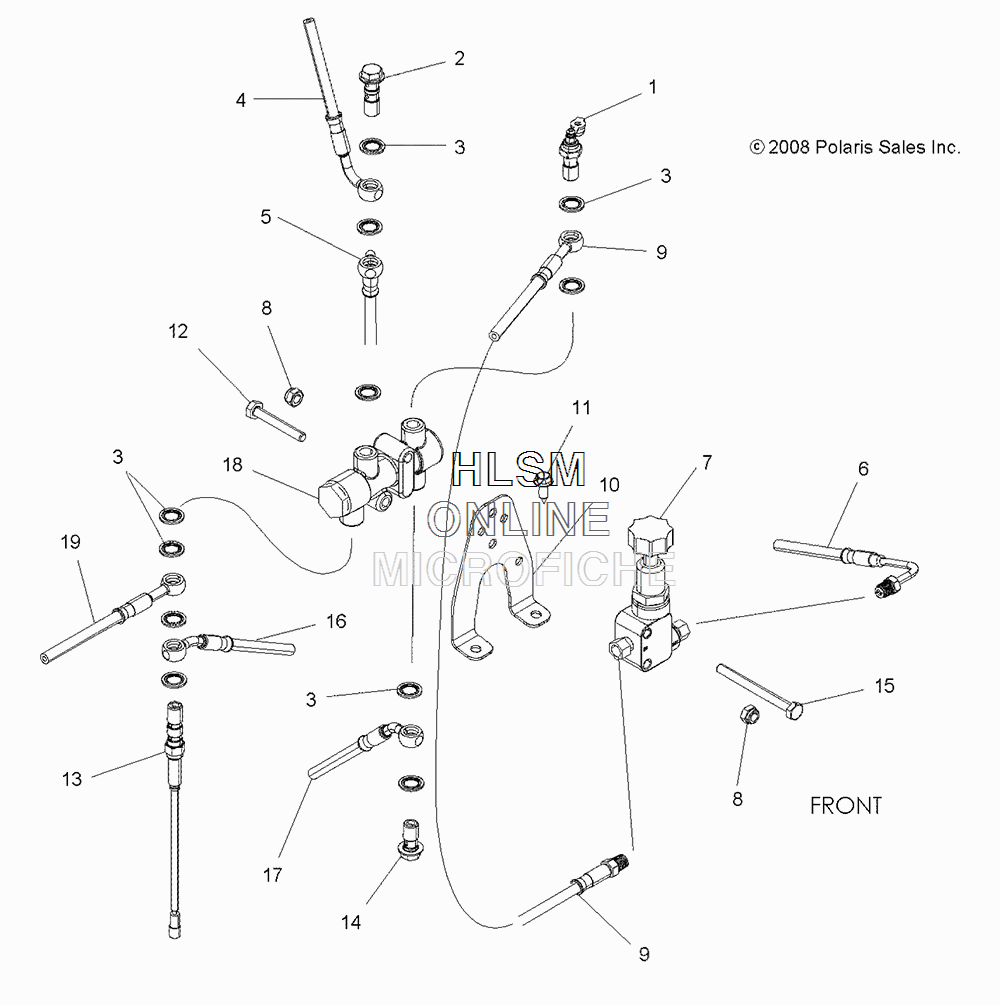

BRAKE - VALVE SYSTEM для Polaris SPORTSMAN 1000 XP ZUG (HAVASU RED PEARL) [A18SXS95FR] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1911112 BOLT, BANJO W/BLEEDER,10MMX1.25
    BOLT, BANJO W/BLEEDER,10MMX1.25
  • 2
    1911194 BOLT, BANJO, DOUBLE
    BOLT, BANJO, DOUBLE
  • 3
    5413212 SEAL
    SEAL
  • 4
    1912659 LINE, HAND TO DIST.
    LINE, HAND TO DIST.
  • 5
    1913018 LINE-BRK,REAR AUX,3WAY,G
    LINE-BRK,REAR AUX,3WAY,G
  • 6
    1913019 LINE-BRK,REAR SVC,3WAY,G
    LINE-BRK,REAR SVC,3WAY,G
  • 7
    1911109 VALVE, REDUCING
    VALVE, REDUCING
  • 8
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 9
    1912658 LINE-BRAKE, J/B TO P/VALVE,NPT
    LINE-BRAKE, J/B TO P/VALVE,NPT
  • 10
    5252667 BRACKET, JUNCTION BLOCK
    BRACKET, JUNCTION BLOCK
  • 11
    7518513 BOLT
    BOLT
  • 12
    7519682 SCREW
    SCREW
  • 13
    4014225 SWITCH, DOUBLE BANJO
    SWITCH, DOUBLE BANJO
  • 14
    1910958 BOLT, BANJO,10MMX1.25
    BOLT, BANJO,10MMX1.25
  • 15
    7519012 SCREW
    SCREW
  • 16
    1913016 LINE-BRK,FL,29,30B,30B,297.5°
    LINE-BRK,FL,29,30B,30B,297.5°
  • 17
    1912660 LINE, FOOT TO DIST.,36,45B,90SB,180°
    LINE, FOOT TO DIST.,36,45B,90SB,180°
  • 18
    1911185 BLOCK, DISTRIBUTION
    BLOCK, DISTRIBUTION
  • 19
    1913017 LINE-BRK,FR,29,30B,0B,50°
    LINE-BRK,FR,29,30B,0B,50°
