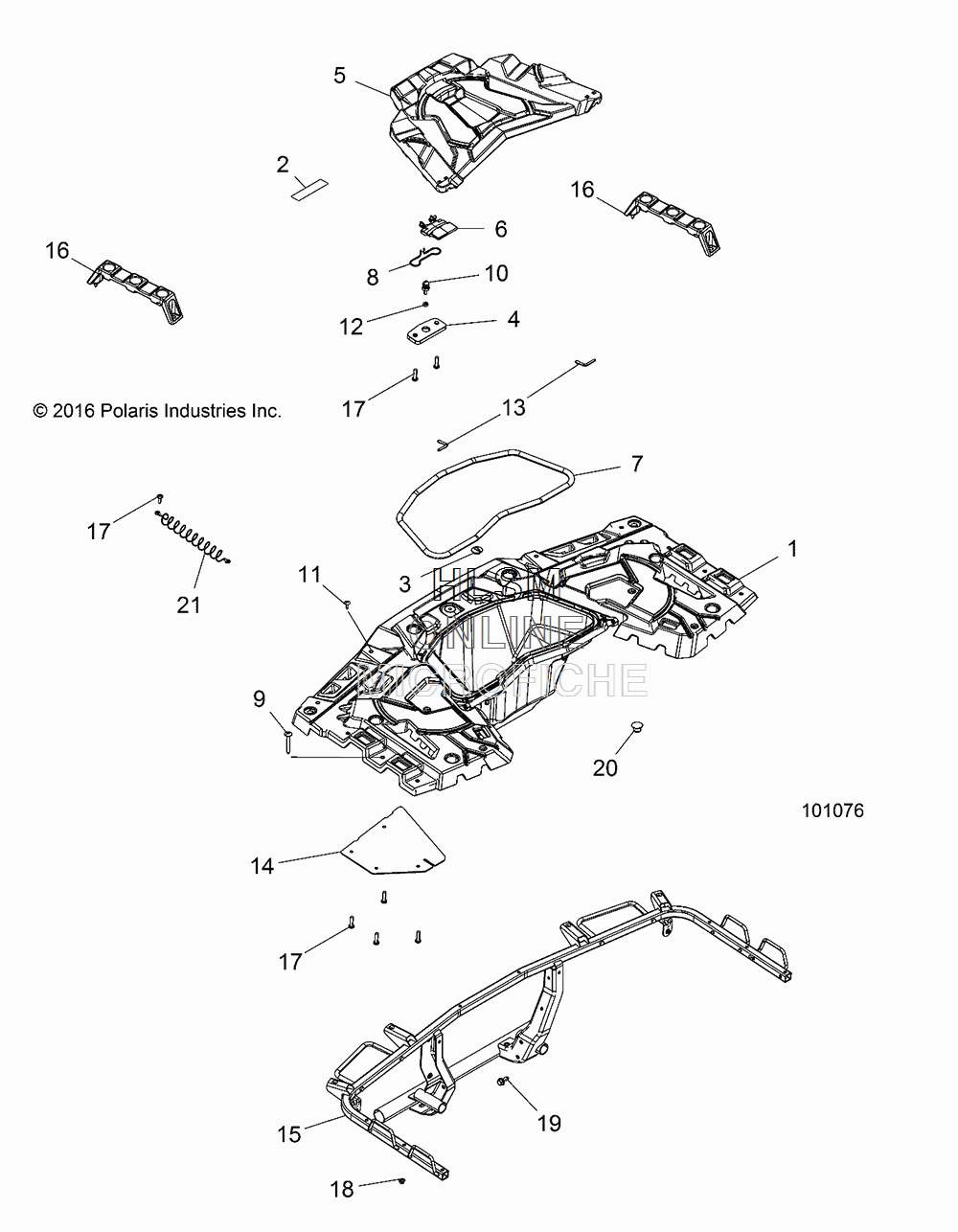

RACK - REAR для Polaris SPORTSMAN 1000 XP ZUG (HAVASU RED PEARL) [A18SXS95FR] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2636716-070 ASM-RACK,REAR,BLACK [INCL. RACK, STORAGE, EXTENDERS, CABLES]
    ASM-RACK,REAR,BLACK [INCL. RACK, STORAGE, EXTENDERS, CABLES]
  • 1
    5452936-070 RACK-REAR,BLACK
    RACK-REAR,BLACK
  • 2
    7185991 DECAL-WARN,RR RACK,55/110,EU
    DECAL-WARN,RR RACK,55/110,EU
  • 3
    5412981 PLUG-COMPARTMENT
    PLUG-COMPARTMENT
  • 4
    5450510-070 LATCH-COVER PLATE,BLACK
    LATCH-COVER PLATE,BLACK
  • 5
    5452955-070 COVER-STORAGE,REAR,BLACK
    COVER-STORAGE,REAR,BLACK
  • 6
    5452964 LATCH-REAR STORAGE
    LATCH-REAR STORAGE
  • 7
    5522202 SEAL-BOX,REAR
    SEAL-BOX,REAR
  • 8
    7081466 SPRING-LATCH,SEAT?
    SPRING-LATCH,SEAT?
  • 9
    7518882 SCR-M6X1X60,TX TR,BLACK
    SCR-M6X1X60,TX TR,BLACK
  • 10
    7520527 PLUNGER-LATCH,6MM
    PLUNGER-LATCH,6MM
  • 11
    7519650 SCR-TXTH-M6X1.0X25 RIE
    SCR-TXTH-M6X1.0X25 RIE
  • 12
    7546703 NUT-M6X1 HX R.HAND-Y
    NUT-M6X1 HX R.HAND-Y
  • 13
    7662307 PIN-HINGE,5MM
    PIN-HINGE,5MM
  • 14
    5262917 SHIELD-HEAT,REAR CAB
    SHIELD-HEAT,REAR CAB
  • 15
    1022355-458 WELD-RR RACK,SUPPORT,SPMN,BLACK
    WELD-RR RACK,SUPPORT,SPMN,BLACK
  • 16
    5633722-458 EXTENDER-RACK,MATTE BLACK
    EXTENDER-RACK,MATTE BLACK
  • 17
    7519290 SCR-TXPH-#14X3/4 HI/LO CLR
    SCR-TXPH-#14X3/4 HI/LO CLR
  • 18
    7547274 NUT-M6 FLANGE,NYLOC
    NUT-M6 FLANGE,NYLOC
  • 19
    7518555 BOLT-M8X1.25X20,HXFLG
    BOLT-M8X1.25X20,HXFLG
  • 20
    5450305 PLUG-END CAP,1.25 IN DIA,RIBBED
    PLUG-END CAP,1.25 IN DIA,RIBBED
  • 21
    7081741 CABLE-COVER,BOX,PRE-COIL
    CABLE-COVER,BOX,PRE-COIL
