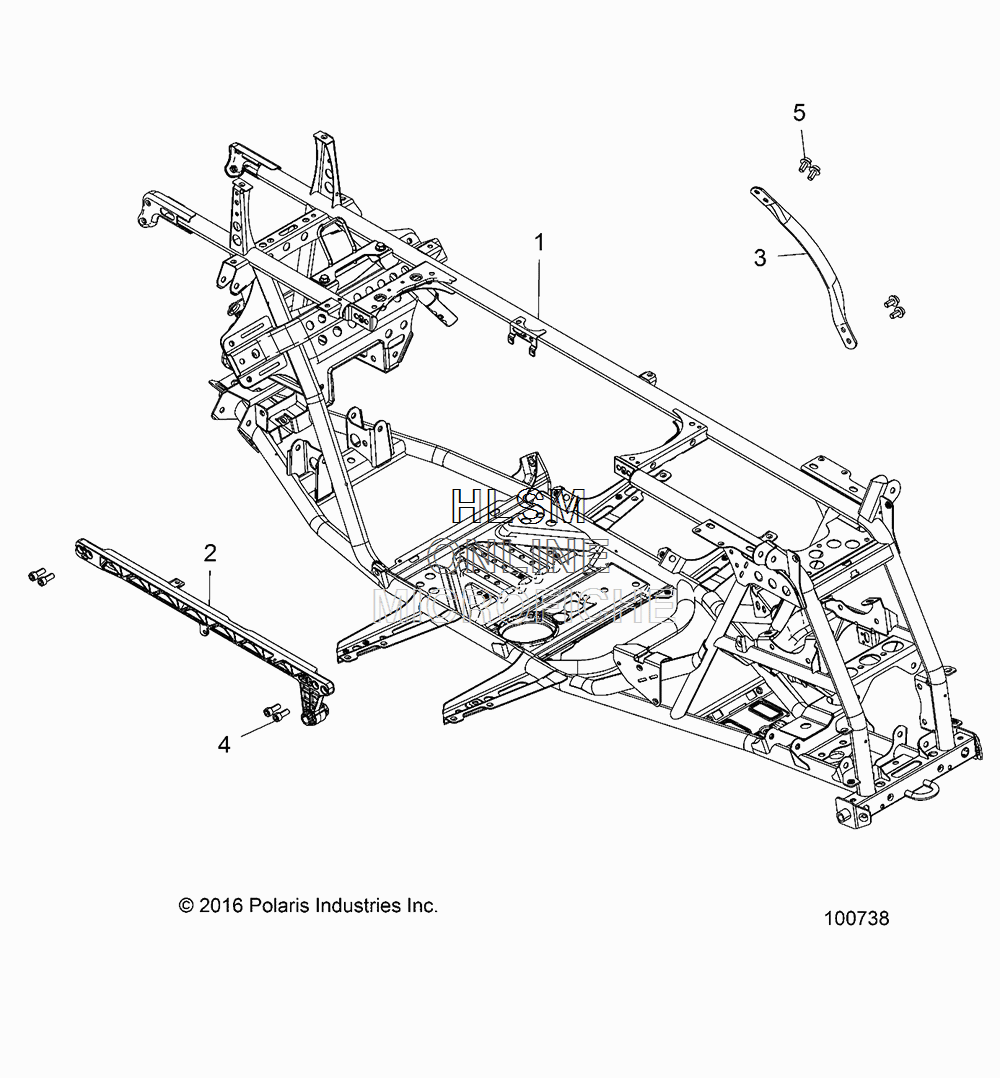

FRAME для Polaris SPORTSMAN 1000 XP ZUG (HAVASU RED PEARL) [A18SXS95FR] - 2018 года выпуска
-
№АртикулНазвание
-
11022530-067 WELD-MAIN FRAME,BLACK [INCL. 2-5]WELD-MAIN FRAME,BLACK [INCL. 2-5]
-
25135762-067 SUPPORT, FRAME, UPPER, RIGHT HAND, BLACKSUPPORT, FRAME, UPPER, RIGHT HAND, BLACK
-
35337943 SUPPORT, FRAME, LOWERSUPPORT, FRAME, LOWER
-
47517358 SCREWSCREW
-
57518700 SCREW, FLANGESCREW, FLANGE
