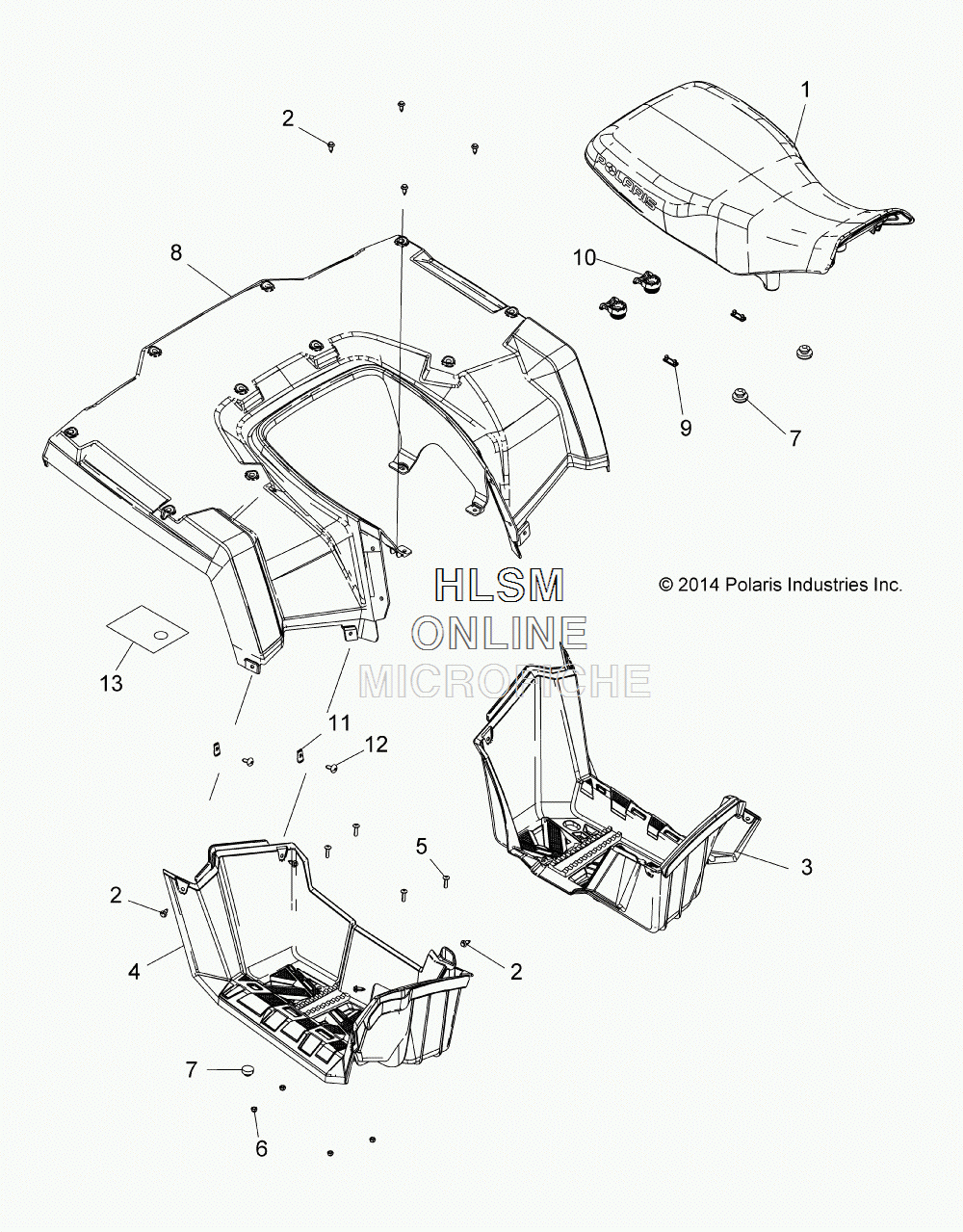

CAB - REAR - SEAT W/FOOTWELLS для Polaris SPORTSMAN ETX EFI MD SAGE BRUSH GREEN METALLIC [A15SEA32HA] - 2015 года выпуска`
-
№АртикулНазвание
-
12685519-070 ASM., SEAT, BLACK (INCL. 7,9)ASM., SEAT, BLACK (INCL. 7,9)
-
12685520 ASM., COVER, SEAT W/WHITE DECALASM., COVER, SEAT W/WHITE DECAL
-
27661855 RIVETRIVET
-
35450523-070 FOOTWELL, BLACK, LEFT HANDFOOTWELL, BLACK, LEFT HAND
-
45450524-070 FOOTWELL, BLACK, RIGHT HANDFOOTWELL, BLACK, RIGHT HAND
-
57517230 SCREWSCREW
-
67542122 NUT, NYLOKNUT, NYLOK
-
75412067 BUMPER, RUBBERBUMPER, RUBBER
-
82635180-498 ASM., CAB, REAR, SAGE BRUSH GREEN METALLIC (INCL. REFLECTORS)ASM., CAB, REAR, SAGE BRUSH GREEN METALLIC (INCL. REFLECTORS)
-
95412982 BUMPER, SEATBUMPER, SEAT
-
105413691 GROMMET, SEAT LATCHGROMMET, SEAT LATCH
-
117670145 NUT, U-TYPENUT, U-TYPE
-
127518280 SCREWSCREW
-
135814019 FOIL, FRAME, TOPFOIL, FRAME, TOP
