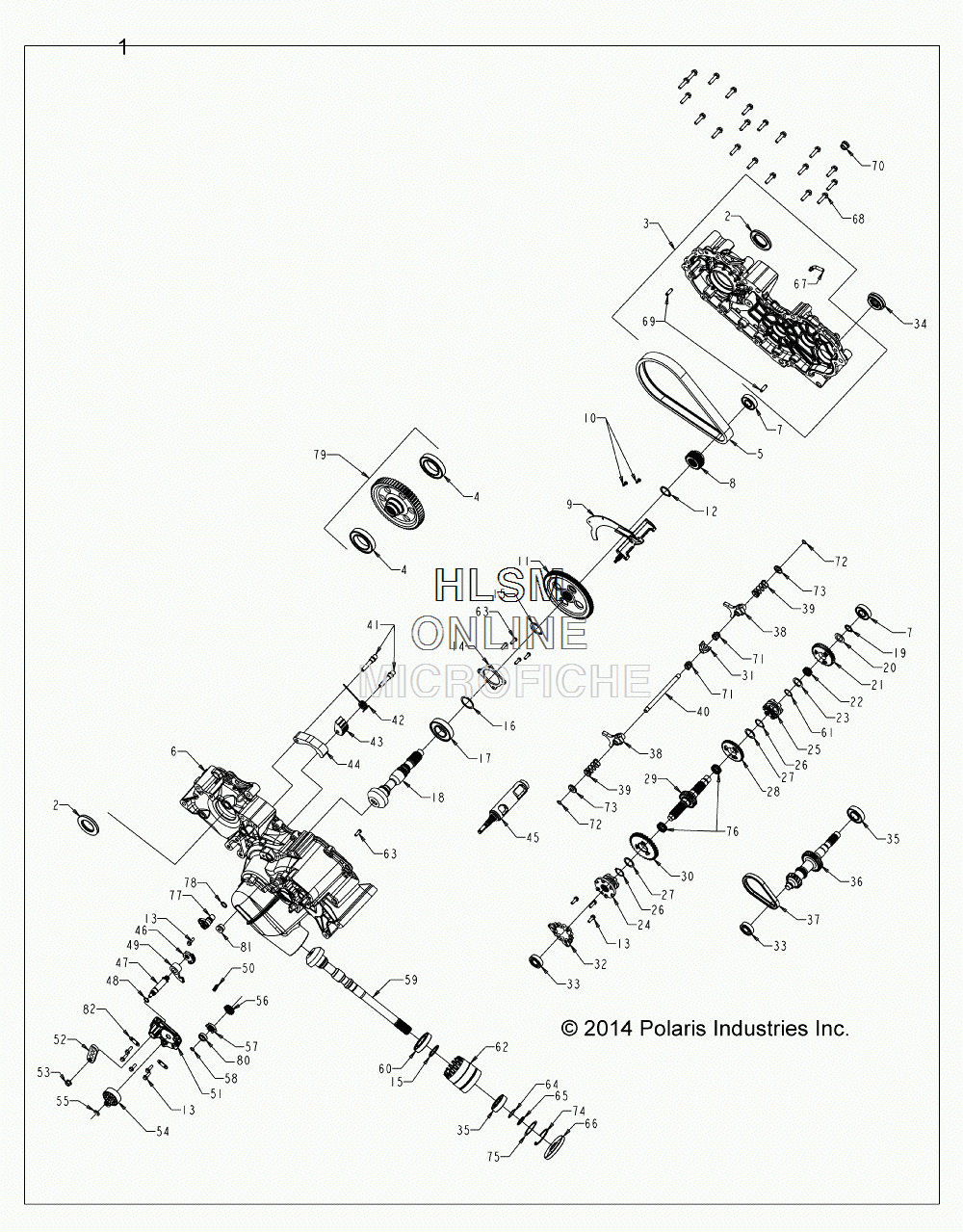

GEARCASE для Polaris SPORTSMAN ETX EFI MD SAGE BRUSH GREEN METALLIC [A15SEA32HA] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1333303 ASM., GEARCASE, NO DIFFERENTIAL (INCL. ALL)
    ASM., GEARCASE, NO DIFFERENTIAL (INCL. ALL)
  • 2
    3233878 SEAL, TRIPLE LIP 40 X 70 X 7
    SEAL, TRIPLE LIP 40 X 70 X 7
  • 3
    3235605 GEARCASE, LEFT HAND MACH
    GEARCASE, LEFT HAND MACH
  • 4
    3233268 BEARING, BALL 6010 C3 50 X 80 X 10
    BEARING, BALL 6010 C3 50 X 80 X 10
  • 5
    3234057 CHAIN, SILENT
    CHAIN, SILENT
  • 6
    3235606 GEARCASE, RIGHT HAND MACH
    GEARCASE, RIGHT HAND MACH
  • 7
    3233018 BEARING, BALL 6204 20 X 47 X 14
    BEARING, BALL 6204 20 X 47 X 14
  • 8
    3234060 SPROCKET, 19T, 1.00'
    SPROCKET, 19T, 1.00'
  • 9
    3234061 DEFLECTOR, OIL
    DEFLECTOR, OIL
  • 10
    3233749 SCREW, TAPPING TORX, 11902 X 0.5
    SCREW, TAPPING TORX, 11902 X 0.5
  • 11
    3234062 GEAR OUTPUT 91T
    GEAR OUTPUT 91T
  • 12
    3233699 RTNG RING, 1 RR 7200-118
    RTNG RING, 1 RR 7200-118
  • 13
    3234247 SCREW, TAPPING HEX 43834 UNC X 0.75
    SCREW, TAPPING HEX 43834 UNC X 0.75
  • 14
    3234063 COVER, BEARING, CENTER DRIVE
    COVER, BEARING, CENTER DRIVE
  • 15
    3233364 RING, RETAINING
    RING, RETAINING
  • 16
    3234271 SHIM 1.7 X 1.385
    SHIM 1.7 X 1.385
  • 17
    3234065 BEARING, BALL 6207
    BEARING, BALL 6207
  • 18
    3234263 SHAFT, CENTER DRIVE
    SHAFT, CENTER DRIVE
  • 19
    3234067 RING, RETAINING SHR-75
    RING, RETAINING SHR-75
  • 20
    3233176 WASHER THRUST, 1.27 X 0.793 X 0.065
    WASHER THRUST, 1.27 X 0.793 X 0.065
  • 21
    3234917 GEAR, SPUR, HELICAL 40T
    GEAR, SPUR, HELICAL 40T
  • 22
    3233009 BEARING, NEEDLE 22 X 26 X 10
    BEARING, NEEDLE 22 X 26 X 10
  • 23
    3233855 WASHER, 1.25 X 0.876 X 0.05
    WASHER, 1.25 X 0.876 X 0.05
  • 24
    3234257 ENGAGEMENT DOG, 6-FACE L/P
    ENGAGEMENT DOG, 6-FACE L/P
  • 25
    3234258 ENGAGEMENT DOG, 6-FACE
    ENGAGEMENT DOG, 6-FACE
  • 26
    3233306 RING, RETAINING BASIC EXT 0.938
    RING, RETAINING BASIC EXT 0.938
  • 27
    3234248 WASHER 1.3 X 0.995 X 0.065
    WASHER 1.3 X 0.995 X 0.065
  • 28
    3234290 SPROCKET, 38T 6-FACE
    SPROCKET, 38T 6-FACE
  • 29
    3234280 SHAFT, REVERSE 26T
    SHAFT, REVERSE 26T
  • 30
    3234291 GEAR, 33T 6-FACE
    GEAR, 33T 6-FACE
  • 31
    3234073 COLLAR, SHIFT
    COLLAR, SHIFT
  • 32
    3233915 PLATE, PARK 12-FACE
    PLATE, PARK 12-FACE
  • 33
    3234274 BEARING, BALL 6203 17 X 40 X 12
    BEARING, BALL 6203 17 X 40 X 12
  • 34
    3234851 SEAL, 25 X 47
    SEAL, 25 X 47
  • 35
    3233019 BEARING, BALL 6205 C3 25 X 52 X 15
    BEARING, BALL 6205 C3 25 X 52 X 15
  • 36
    3234916 SHAFT, INPUT, HELICAL (34T, I9T, 15T)
    SHAFT, INPUT, HELICAL (34T, I9T, 15T)
  • 37
    3234264 CHAIN .25P X .40W X 50L
    CHAIN .25P X .40W X 50L
  • 38
    3234077 FORK, SHIFT
    FORK, SHIFT
  • 39
    3234078 COMPRESSION, SPRING 0.92 O.D X 2
    COMPRESSION, SPRING 0.92 O.D X 2
  • 40
    3234079 RAIL, SHIFT SHAFT
    RAIL, SHIFT SHAFT
  • 41
    3233432 PIN, TENSIONER
    PIN, TENSIONER
  • 42
    3233431 TORSION SPRING
    TORSION SPRING
  • 43
    3233434 CAM, CHAIN TENSIONER
    CAM, CHAIN TENSIONER
  • 44
    3233433 SHOE, CHAIN TENSIONER
    SHOE, CHAIN TENSIONER
  • 45
    3234360 DRUM, SHIFT MACH
    DRUM, SHIFT MACH
  • 46
    3233832 GEAR, SECTOR 31T
    GEAR, SECTOR 31T
  • 47
    3233831 SHAFT, SHIFT
    SHAFT, SHIFT
  • 48
    3233869 O-RING, -14
    O-RING, -14
  • 49
    3233829 PAWL, DETENT
    PAWL, DETENT
  • 50
    3234578 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 51
    3234188 COVER, SECTOR GEAR MACH
    COVER, SECTOR GEAR MACH
  • 52
    3234584 BELLCRANK, SHIFT DRUM
    BELLCRANK, SHIFT DRUM
  • 53
    3233961 NUT, LOCK, HEX FLANGE NYLON 45428
    NUT, LOCK, HEX FLANGE NYLON 45428
  • 54
    7661999 SWITCH, ROTARY 2-PIN ITW
    SWITCH, ROTARY 2-PIN ITW
  • 55
    3233834 RING, RETAINING, BASIC EXT.
    RING, RETAINING, BASIC EXT.
  • 56
    3233839 GEAR, SECTOR 16T
    GEAR, SECTOR 16T
  • 57
    3233909 STAR, DETENT
    STAR, DETENT
  • 58
    3233076 O-RING, -12
    O-RING, -12
  • 59
    3234262 SHAFT, SNORKEL
    SHAFT, SNORKEL
  • 60
    3233265 BEARING, BALL 6007 C3 35 X 62 X 14
    BEARING, BALL 6007 C3 35 X 62 X 14
  • 61
    3234336 RING, RETAINING BASIC EXT N.84
    RING, RETAINING BASIC EXT N.84
  • 62
    3234278 TUBE, SNORKEL MACH
    TUBE, SNORKEL MACH
  • 63
    3234086 SCREW, TORX TRUSS HD 43834 X 0.75
    SCREW, TORX TRUSS HD 43834 X 0.75
  • 64
    3234272 SHIM 1.18 X 0.995
    SHIM 1.18 X 0.995
  • 65
    3233106 RING, RETAINING
    RING, RETAINING
  • 66
    3234113 SEAL, TRIPLE LIP, 25 X 80 X 10
    SEAL, TRIPLE LIP, 25 X 80 X 10
  • 67
    3234230 TUBE, VENT 90~ 1/4' LINE
    TUBE, VENT 90~ 1/4' LINE
  • 68
    3234114 SCREW
    SCREW
  • 69
    3234244 PIN, DOWEL 41775 X 1
    PIN, DOWEL 41775 X 1
  • 70
    3233794 PLUG, 3/4-16, 41775 INTERNAL HEX
    PLUG, 3/4-16, 41775 INTERNAL HEX
  • 71
    3234089 COMPRESSION, SPRING
    COMPRESSION, SPRING
  • 72
    3234090 RETAINER, SPRING
    RETAINER, SPRING
  • 73
    3234091 WASHER, CUP
    WASHER, CUP
  • 74
    3234269 RING, RETAINING, INTERNAL
    RING, RETAINING, INTERNAL
  • 75
    3234273 SHIM
    SHIM
  • 76
    3233103 BEARING, NEEDLE
    BEARING, NEEDLE
  • 77
    4013908 SENSOR, SPEED
    SENSOR, SPEED
  • 78
    3234302 O-RING
    O-RING
  • 79
    3235604 SUBASM., SHAFT, 59T
    SUBASM., SHAFT, 59T
  • 80
    3235243 SPACER
    SPACER
  • 81
    3234529 PLUG, MAGNETIC
    PLUG, MAGNETIC
  • 82
    3235350 BRACKET, WIRE HARNESS
    BRACKET, WIRE HARNESS
