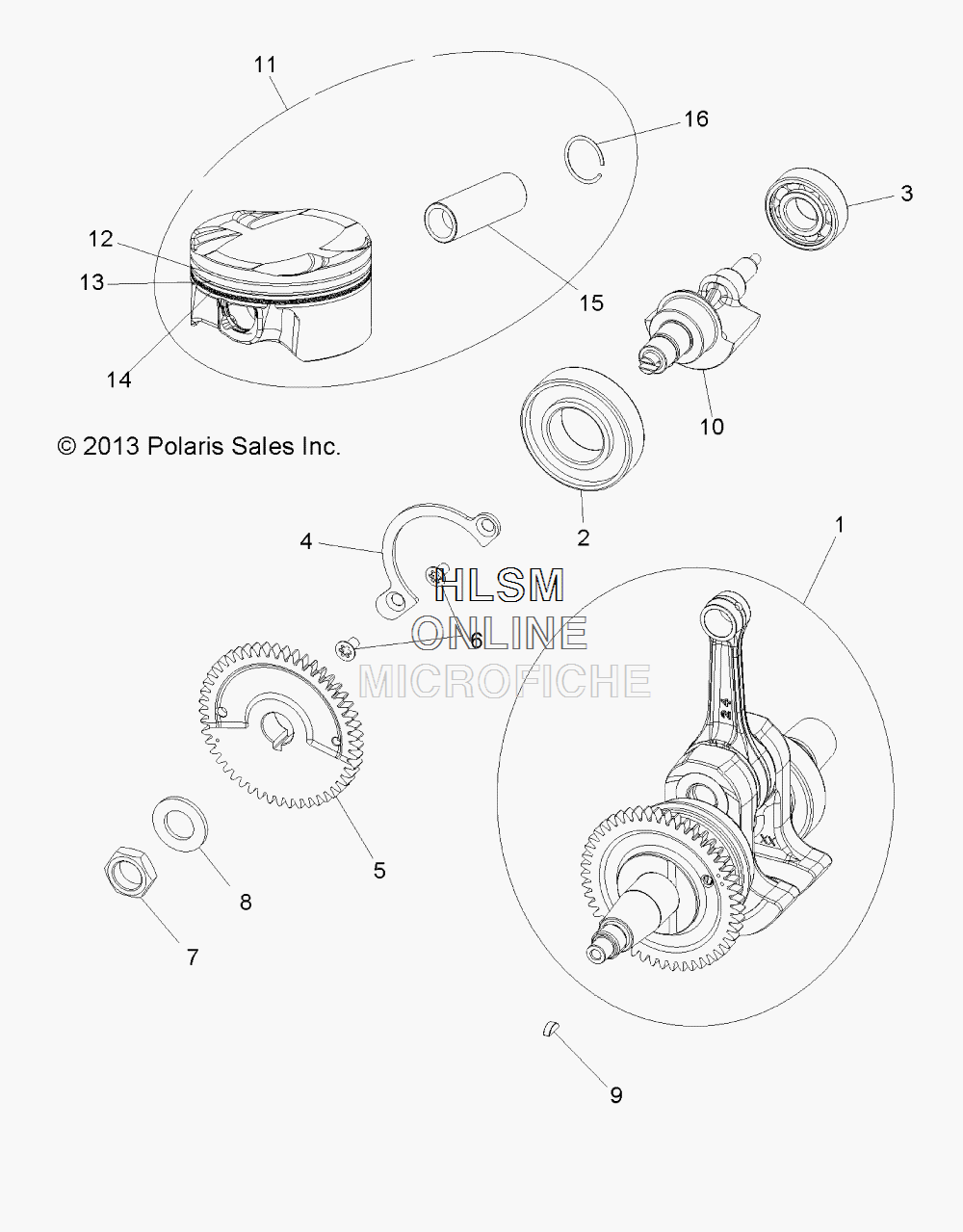

CRANKSHAFT W/ PISTON AND BALANCE SHAFT для Polaris SPORTSMAN ETX EFI MD SAGE BRUSH GREEN METALLIC [A15SEA32HA] - 2015 года выпуска
-
№АртикулНазвание
-
11204878 ASM., CRANKSHAFT W/GEAR (INCL. CRANK ASM. AND GEAR)ASM., CRANKSHAFT W/GEAR (INCL. CRANK ASM. AND GEAR)
-
13585503 BEARING, BALL (PTO END)BEARING, BALL (PTO END)
-
23514361 BEARING, BALLBEARING, BALL
-
33514749 BEARING, BALLBEARING, BALL
-
45137851 PLATE, BEARING RETAINERPLATE, BEARING RETAINER
-
56230548 GEAR, DRIVEN, BALANCERGEAR, DRIVEN, BALANCER
-
67517598 SCREWSCREW
-
77547488 NUT, JAM, RIGHT HANDNUT, JAM, RIGHT HAND
-
87556878 WASHERWASHER
-
97721122 KEY, WOODRUFFKEY, WOODRUFF
-
101204606 ASM., BALANCER SHAFT (INCL. PIN, SHAFT)ASM., BALANCER SHAFT (INCL. PIN, SHAFT)
-
105138050 SHAFT, BALANCERSHAFT, BALANCER
-
107662032 PIN, BALANCER SHAFTPIN, BALANCER SHAFT
-
113022533 ASM., PISTON (INCL. RINGS, PIN, CLIPS)ASM., PISTON (INCL. RINGS, PIN, CLIPS)
-
123022386 RING, PISTON, COMPRESSION, TOPRING, PISTON, COMPRESSION, TOP
-
133022387 RING, PISTON, COMPRESSION, SECONDRING, PISTON, COMPRESSION, SECOND
-
143022388 RING, PISTON, OIL SCRAPERRING, PISTON, OIL SCRAPER
-
153022512 PIN, PISTONPIN, PISTON
-
167710673 CIRCLIPCIRCLIP
