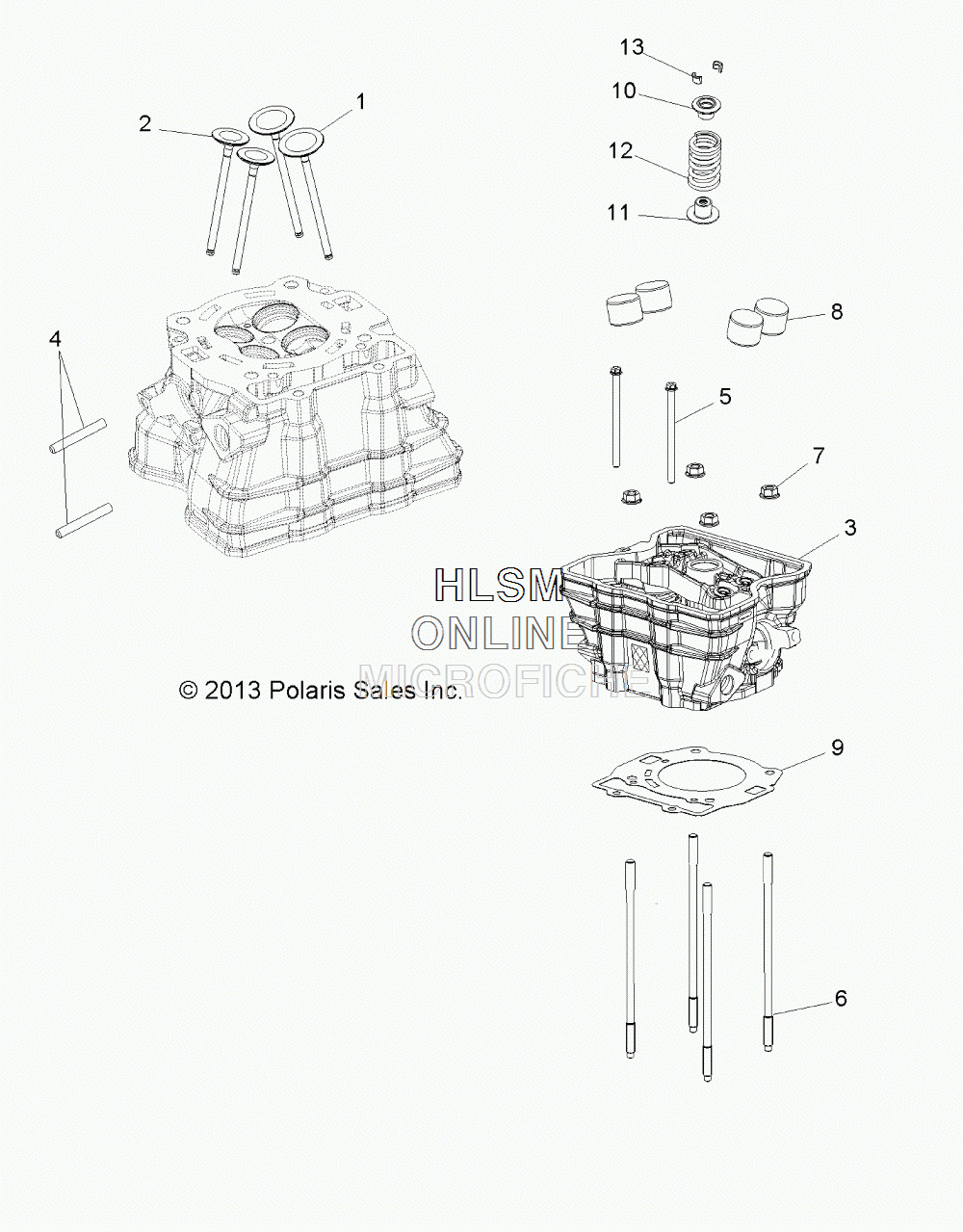

CYLINDER HEAD для Polaris SPORTSMAN ETX EFI MD SAGE BRUSH GREEN METALLIC [A15SEA32HA] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3022391 VALVE, INTAKE
    VALVE, INTAKE
  • 2
    3022392 VALVE, EXHAUST
    VALVE, EXHAUST
  • 3
    3022407 ASM., CYLINDER HEAD (INCL. HEAD, GUIDES, SEATS)
    ASM., CYLINDER HEAD (INCL. HEAD, GUIDES, SEATS)
  • 4
    5132040 STUD
    STUD
  • 5
    7519153 SCREW
    SCREW
  • 6
    7519354 STUD, HEAD
    STUD, HEAD
  • 7
    7547508 NUT
    NUT
  • 8
    3022584 TAPPET, BUCKET, VALVE
    TAPPET, BUCKET, VALVE
  • 9
    5813743 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 10
    5137758 RETAINER, VALVE
    RETAINER, VALVE
  • 11
    5910394 SEAT W/SEAL
    SEAT W/SEAL
  • 12
    7044025 SPRING, VALVE
    SPRING, VALVE
  • 13
    7081739 KEEPER, VALVE
    KEEPER, VALVE
