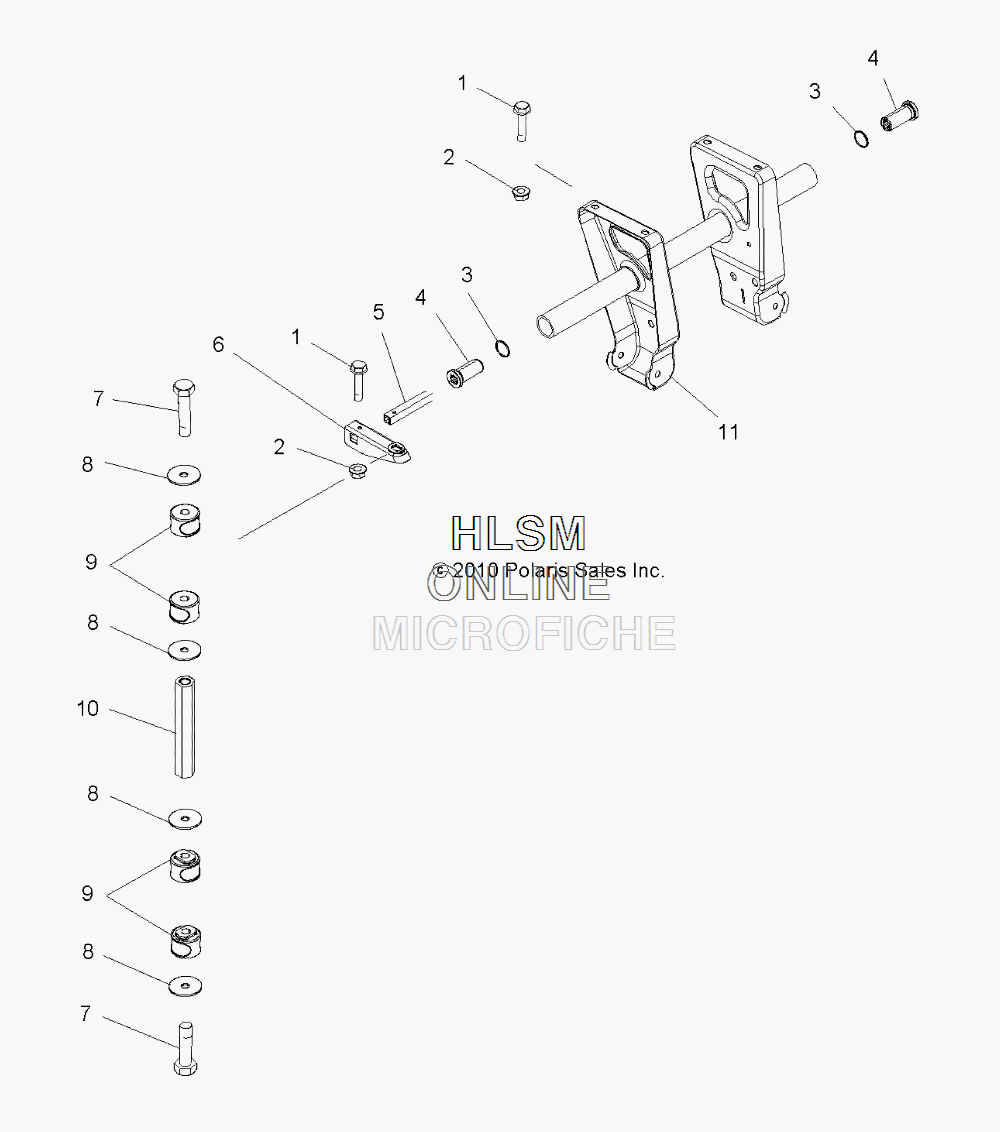

SUSPENSION - TORSION BAR для Polaris SPORTSMAN 400 HO 4X4 - SAGEBRUSH GREEN METALLIC [A13MH46AX] - 2013 года выпуска
-
№АртикулНазвание
-
17518341 BOLT, FLANGEBOLT, FLANGE
-
27542343 NUT, FLANGENUT, FLANGE
-
37555939 WASHERWASHER
-
45438901 BUSHING, STABILIZER TUBE (BLACK)BUSHING, STABILIZER TUBE (BLACK)
-
55334114-067 BAR, STABILIZER TUBE (BLACK)BAR, STABILIZER TUBE (BLACK)
-
61543119-067 ARM, STABILIZER BAR (BLACK)ARM, STABILIZER BAR (BLACK)
-
77517231 SCREWSCREW
-
87555761 WASHERWASHER
-
95432598 BUSHING, STABILIZERBUSHING, STABILIZER
-
105020827 ROD, LINKAGE, STABILIZERROD, LINKAGE, STABILIZER
-
111542848-067 SUPPORT, STABILIZER (BLACK)SUPPORT, STABILIZER (BLACK)
