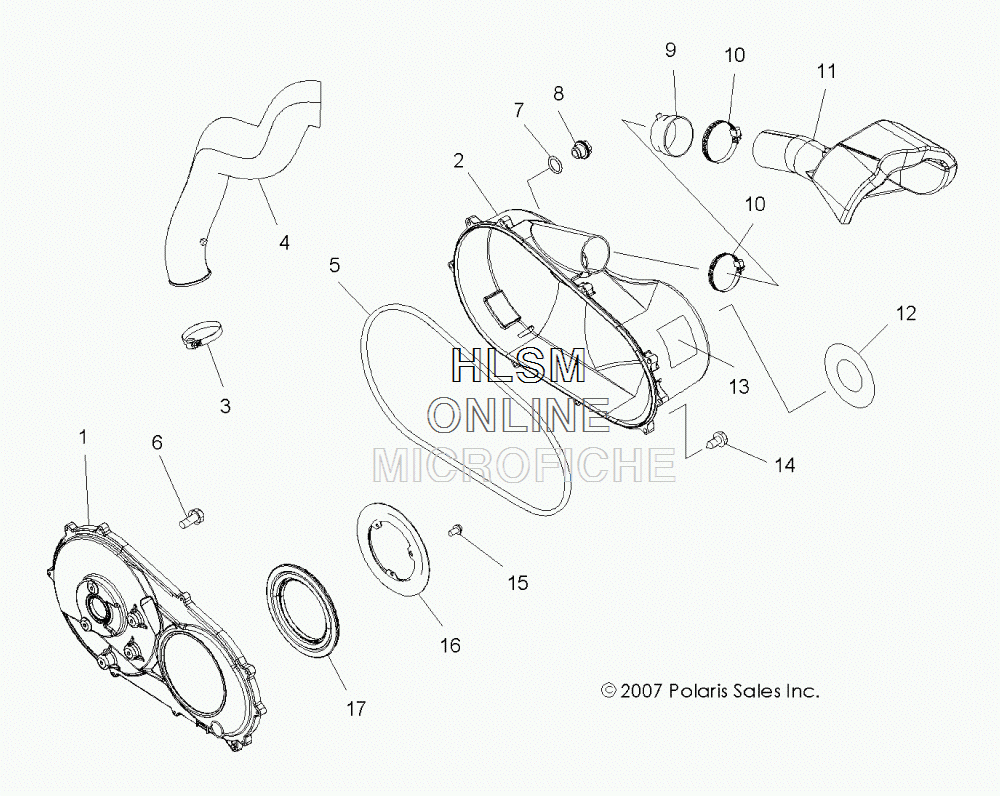

CLUTCH COVER для Polaris SPORTSMAN 400 HO 4X4 - SAGEBRUSH GREEN METALLIC [A13MH46AX] - 2013 года выпуска
-
№АртикулНазвание
-
12633158 ASM., INNER CLUTCH COVER (INCL. 5,17)ASM., INNER CLUTCH COVER (INCL. 5,17)
-
22633926 ASM., CLUTCH COVER, OUTER (INCL. OUTER COVER,7,8)ASM., CLUTCH COVER, OUTER (INCL. OUTER COVER,7,8)
-
37080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
45436958 DUCT, CLUTCH AIR INLETDUCT, CLUTCH AIR INLET
-
55521738 SEAL, COVER, CLUTCH, OUTERSEAL, COVER, CLUTCH, OUTER
-
67517599 ASM., BOLT/WASHERASM., BOLT/WASHER
-
75410542 O-RINGO-RING
-
85434264 PLUG, DRAINPLUG, DRAIN
-
95412636 BOOT, DUCTBOOT, DUCT
-
107081279 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
115436952 DUCT, CLUTCH OUTLETDUCT, CLUTCH OUTLET
-
127172746 DECAL, 'AUTOMATIC TRANSMISSION'DECAL, 'AUTOMATIC TRANSMISSION'
-
137172563 DECAL, WARNING, CLUTCH COVERDECAL, WARNING, CLUTCH COVER
-
147512094 SCREWSCREW
-
153084205 SCREW AND WASHER ASM.SCREW AND WASHER ASM.
-
165242046 BRACKET, CLUTCH, SEALBRACKET, CLUTCH, SEAL
-
175412725 SEAL, COVER, CLUTCH, INNERSEAL, COVER, CLUTCH, INNER
