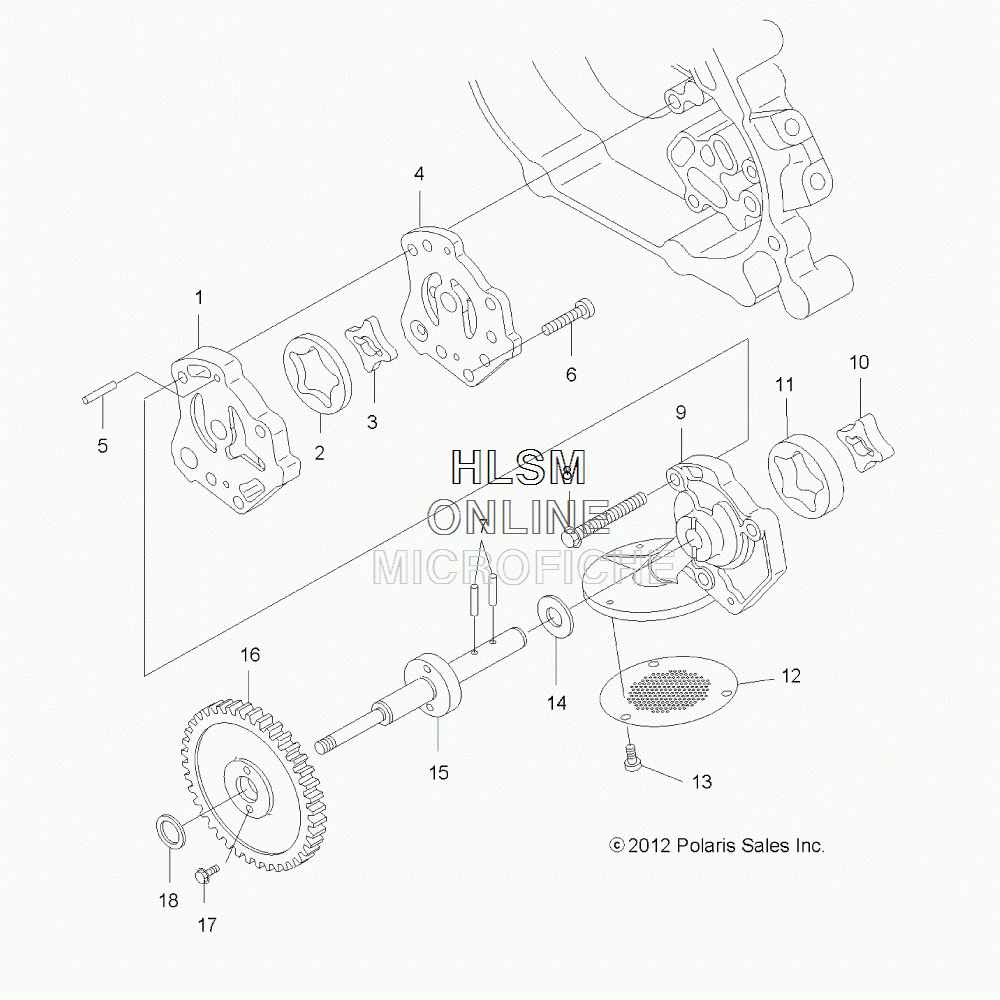

OIL PUMP для Polaris SPORTSMAN 400 HO 4X4 - SAGEBRUSH GREEN METALLIC [A13MH46AX] - 2013 года выпуска
-
№АртикулНазвание
-
3090032 ASM., OIL PUMP (INCL. 1-7,9-15)ASM., OIL PUMP (INCL. 1-7,9-15)
-
13084946 PUMP, OIL, CASE 2PUMP, OIL, CASE 2
-
23084949 ROTOR, OUTER, FEEDROTOR, OUTER, FEED
-
33084948 ROTOR, INNER, FEEDROTOR, INNER, FEED
-
43090000 PUMP, OIL, CASE 1PUMP, OIL, CASE 1
-
53084955 PIN, DOWELPIN, DOWEL
-
63085535 SCREWSCREW
-
73084954 PIN, DOWELPIN, DOWEL
-
83087159 BOLT, FLANGEBOLT, FLANGE
-
93087265 PUMP, OIL, CASE 3PUMP, OIL, CASE 3
-
103084950 ROTOR, INNERROTOR, INNER
-
113090307 ROTOR, OUTERROTOR, OUTER
-
123084956 UNIT, OIL STRAINERUNIT, OIL STRAINER
-
133084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
143084953 WASHERWASHER
-
153085858 SHAFT, PUMPSHAFT, PUMP
-
163090033 GEAR, PUMP, 2GEAR, PUMP, 2
-
173089505 BOLT, FLANGEBOLT, FLANGE
-
183084959 SPACER, 0.8SPACER, 0.8
-
183084960 SPACER, 1.0SPACER, 1.0
-
183084961 SPACER, 1.2SPACER, 1.2
