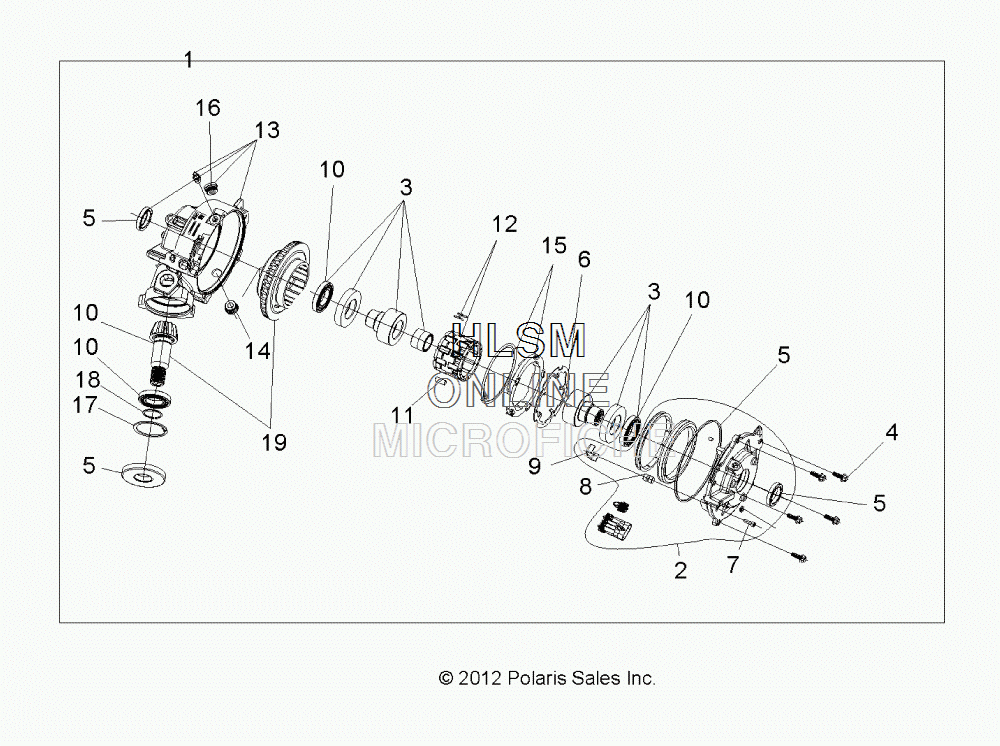

GEARCASE - FRONT для Polaris SPORTSMAN 400 HO 4X4 - SAGEBRUSH GREEN METALLIC [A13MH46AX] - 2013 года выпуска
-
№АртикулНазвание
-
11333067 ASM., GEARCASE, AWD (INCL. ALL)ASM., GEARCASE, AWD (INCL. ALL)
-
23235162 ASM., COVER, OUTPUTASM., COVER, OUTPUT
-
33234936 KIT, OUTPUT HUB (INCL. HUB ASM. FEMALE, HUB ASM. MALE)KIT, OUTPUT HUB (INCL. HUB ASM. FEMALE, HUB ASM. MALE)
-
43235469 KIT, FASTENER (INCL. SCREWS)KIT, FASTENER (INCL. SCREWS)
-
53235470 KIT, SEAL REPAIR (INCL. ALL SEALS)KIT, SEAL REPAIR (INCL. ALL SEALS)
-
63234407 PLATE, ARMATUREPLATE, ARMATURE
-
73234408 SET, SCREWSET, SCREW
-
83234594 ASM., THRUST BUTTONASM., THRUST BUTTON
-
93235183 PLATE, THRUSTPLATE, THRUST
-
103234390 BEARINGBEARING
-
113234393 KIT, ROLLER (INCL. COMPLETE SET OF ROLLERS)KIT, ROLLER (INCL. COMPLETE SET OF ROLLERS)
-
123234907 ASM., ROLL CAGE (INCL. CAGE AND COMPLETE SET OF CLIPS)ASM., ROLL CAGE (INCL. CAGE AND COMPLETE SET OF CLIPS)
-
123235262 ASM., ROLL CAGE, BILLET ALUM (HIGH PERFORMANCE ACCESSORY) (INCL. CLIP SET)ASM., ROLL CAGE, BILLET ALUM (HIGH PERFORMANCE ACCESSORY) (INCL. CLIP SET)
-
133235471 ASM., GEARCASE (INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL)ASM., GEARCASE (INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL)
-
143234412 ASM., DRAIN PLUG, MAGNETICASM., DRAIN PLUG, MAGNETIC
-
153234908 KIT, SPRING (INCL. SPRING RETAINER, TORSION SPRING)KIT, SPRING (INCL. SPRING RETAINER, TORSION SPRING)
-
163234414 PLUG, OIL FILLPLUG, OIL FILL
-
173234416 RING, RETAININGRING, RETAINING
-
183235177 RING, RETAININGRING, RETAINING
-
193235472 ASM., PINION GEAR (INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN)ASM., PINION GEAR (INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN)
