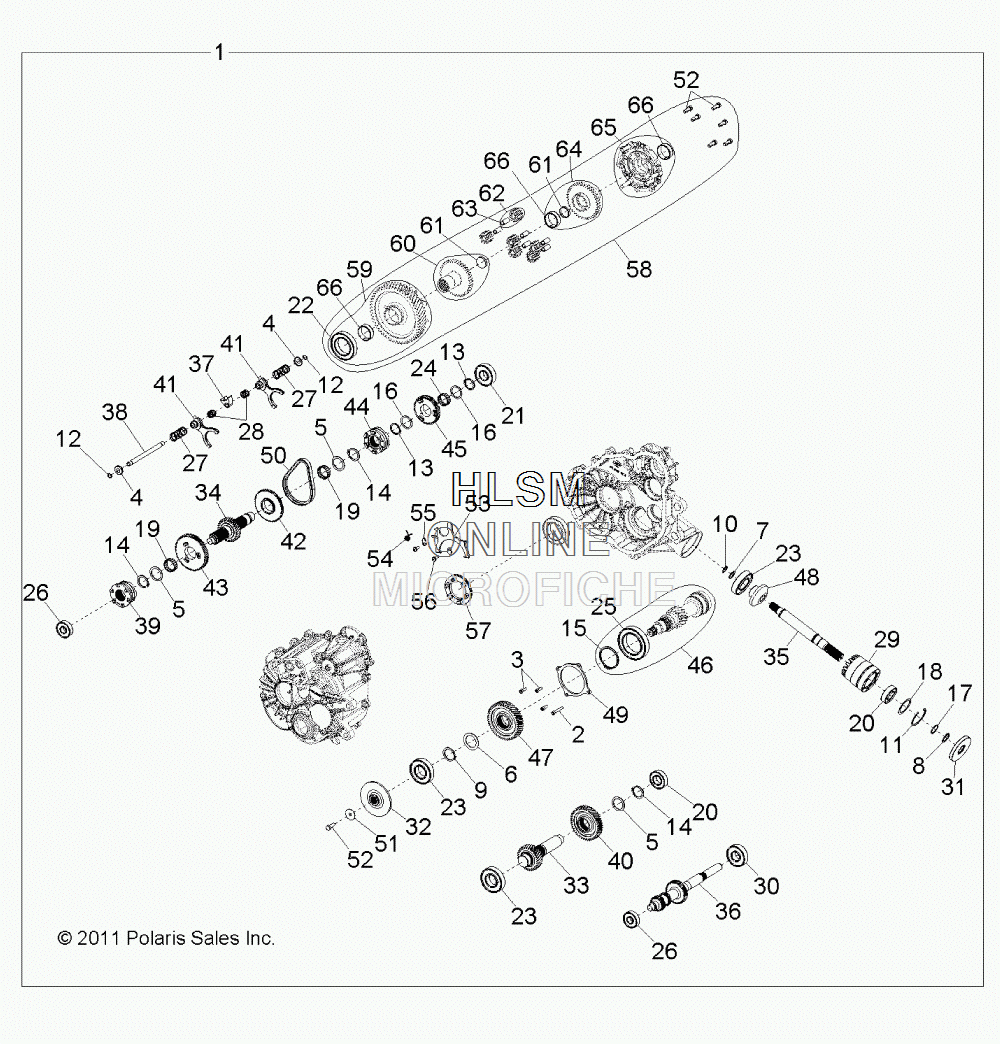

MAIN GEARCASE INTERNAL для Polaris RZR 570 EFI INTERNATIONAL [R12VH57FX] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    1333033 ASM., GEARCASE (INCL. ALL) PRINT NOT YET RELEASED
    ASM., GEARCASE (INCL. ALL) PRINT NOT YET RELEASED
  • 2
    3235208 SCREW, SOCKET HEAD
    SCREW, SOCKET HEAD
  • 3
    3235332 SCREW, SOCKET HEAD
    SCREW, SOCKET HEAD
  • 4
    3234091 WASHER, CUP
    WASHER, CUP
  • 5
    3235211 WASHER
    WASHER
  • 6
    3235212 WASHER
    WASHER
  • 7
    3235213 WASHER
    WASHER
  • 8
    3233106 RING, SNAP
    RING, SNAP
  • 9
    3233364 RING, RETAINING
    RING, RETAINING
  • 10
    3234318 RING, RETAINING, EXTERNAL
    RING, RETAINING, EXTERNAL
  • 11
    3234269 RING, RETAINING, BASIC, INTERNAL
    RING, RETAINING, BASIC, INTERNAL
  • 12
    3234090 RING, RETAINING
    RING, RETAINING
  • 13
    3234205 RING, RETAINING
    RING, RETAINING
  • 14
    3235214 RING, RETAINING, EXTERNAL
    RING, RETAINING, EXTERNAL
  • 15
    3235216 RING, RETAINING
    RING, RETAINING
  • 16
    3233378 WASHER, THRUST
    WASHER, THRUST
  • 17
    3234272 SHIM
    SHIM
  • 18
    3234273 SHIM
    SHIM
  • 19
    3233014 BEARING, NEEDLE
    BEARING, NEEDLE
  • 20
    3233019 BEARING
    BEARING
  • 21
    3233020 BEARING
    BEARING
  • 22
    3233268 BEARING, BALL
    BEARING, BALL
  • 23
    3234065 BEARING, BALL
    BEARING, BALL
  • 24
    3233384 BEARING, NEEDLE
    BEARING, NEEDLE
  • 25
    3235218 BEARING, BALL
    BEARING, BALL
  • 26
    3234652 BEARING, BALL
    BEARING, BALL
  • 27
    3234078 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 28
    3234089 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 29
    3234278 TUBE
    TUBE
  • 30
    3233020 BEARING
    BEARING
  • 31
    3234113 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 32
    3235372 DISC, BRAKE (INCL. BEARINGS)
    DISC, BRAKE (INCL. BEARINGS)
  • 33
    3235223 SHAFT, IDLER, 29T
    SHAFT, IDLER, 29T
  • 34
    3235380 SHAFT, REVERSE, 25T
    SHAFT, REVERSE, 25T
  • 35
    3235394 SHAFT, OUTPUT, FRONT
    SHAFT, OUTPUT, FRONT
  • 36
    3235226 SHAFT, INPUT, HELICAL
    SHAFT, INPUT, HELICAL
  • 37
    3234073 COLLAR, SHIFT
    COLLAR, SHIFT
  • 38
    3234079 RAIL, SHIFT SHAFT
    RAIL, SHIFT SHAFT
  • 39
    3235228 DOG, SHIFT, PARK
    DOG, SHIFT, PARK
  • 40
    3235381 GEAR, 46T, STAGE 2
    GEAR, 46T, STAGE 2
  • 41
    3235230 FORK, SHIFT
    FORK, SHIFT
  • 42
    3235231 SPROCKET, 48T, 6 FACE
    SPROCKET, 48T, 6 FACE
  • 43
    3235232 GEAR, 67T
    GEAR, 67T
  • 44
    3235233 DOG, ENGAGEMENT, 6-FACE
    DOG, ENGAGEMENT, 6-FACE
  • 45
    3235234 GEAR, 53T
    GEAR, 53T
  • 46
    3235371 SUBASM., PINION, 11T (INCL. BEARING, RETAINING RING)
    SUBASM., PINION, 11T (INCL. BEARING, RETAINING RING)
  • 47
    3235236 GEAR, 46T, STAGE 3
    GEAR, 46T, STAGE 3
  • 48
    3235237 GEAR, 13T, FRONT OUTPUT
    GEAR, 13T, FRONT OUTPUT
  • 49
    3235241 COVER, BEARING, CENTER DRIVE
    COVER, BEARING, CENTER DRIVE
  • 50
    3234737 CHAIN, SILENT
    CHAIN, SILENT
  • 51
    3234952 WASHER, FENDER
    WASHER, FENDER
  • 52
    3235096 SCREW, CAP
    SCREW, CAP
  • 53
    3234285 FORK, PIVOT SHIFT
    FORK, PIVOT SHIFT
  • 54
    3234276 SPRING, TORSION, RETURN
    SPRING, TORSION, RETURN
  • 55
    3234934 RETAINER, FORK
    RETAINER, FORK
  • 56
    3234329 SCREW
    SCREW
  • 57
    3234928 DOG, ENGAGEMENT
    DOG, ENGAGEMENT
  • 58
    3235373 DIFFERENTIAL, LOCKING (COMPLETE ASM.)
    DIFFERENTIAL, LOCKING (COMPLETE ASM.)
  • 59
    3235378 SUBASM., GEAR, 53T (INCL. PINS, BUSHING, BEARING)
    SUBASM., GEAR, 53T (INCL. PINS, BUSHING, BEARING)
  • 60
    3235374 SUBASM., SIDE GEAR, 39T (INCL. PLUG)
    SUBASM., SIDE GEAR, 39T (INCL. PLUG)
  • 61
    3234249 PLUG, EXPANSION
    PLUG, EXPANSION
  • 62
    3234469 SUBASM., GEAR (INCL. BUSHING)
    SUBASM., GEAR (INCL. BUSHING)
  • 63
    3234239 BEARING, PLAIN
    BEARING, PLAIN
  • 64
    3235375 SUBASM., SIDE GEAR, 39T (INCL. PLUG, BUSHING)
    SUBASM., SIDE GEAR, 39T (INCL. PLUG, BUSHING)
  • 65
    3235376 SUBASM., DIFFERENTIAL COVER (INCL. PLUG, BUSHING)
    SUBASM., DIFFERENTIAL COVER (INCL. PLUG, BUSHING)
  • 66
    3234241 BEARING, PLAIN
    BEARING, PLAIN
