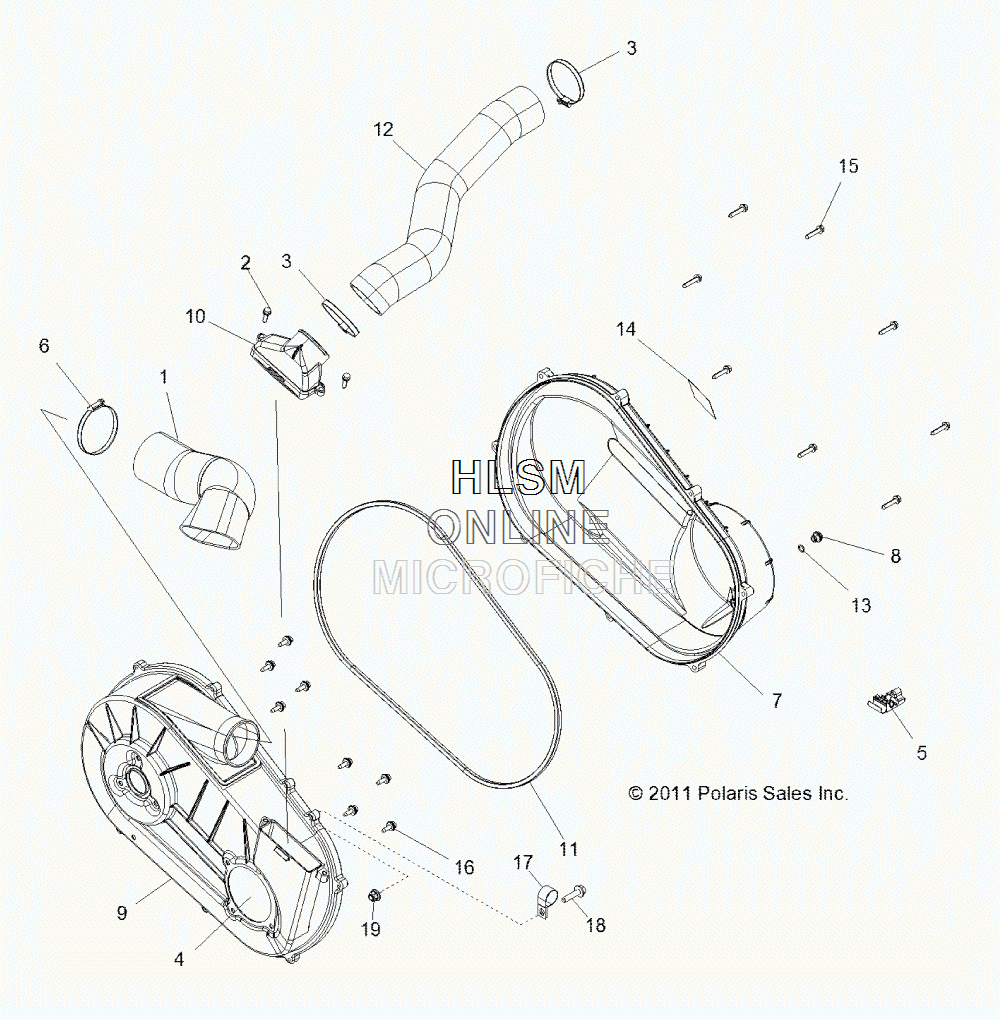

CLUTCH COVER AND DUCTING для Polaris RZR 570 EFI INTERNATIONAL [R12VH57FX] - 2012 года выпуска
-
№АртикулНазвание
-
15813831 BOOT, OUTLET, CLUTCHBOOT, OUTLET, CLUTCH
-
27512098 SCREWSCREW
-
37080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
4TBD SEAL, COVER, PTOSEAL, COVER, PTO
-
55439035 CLIP, ROUTING (BUILT 2/06/12 AND BEFORE)CLIP, ROUTING (BUILT 2/06/12 AND BEFORE)
-
67081279 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
72634179 ASM., COVER, CLUTCH, OUTER (INCL. OUTER COVER, PLUG, O-RING)ASM., COVER, CLUTCH, OUTER (INCL. OUTER COVER, PLUG, O-RING)
-
85434264 PLUG, DRAINPLUG, DRAIN
-
92634188 ASM., COVER, CLUTCH, INNER (INCL. 9,10)ASM., COVER, CLUTCH, INNER (INCL. 9,10)
-
105438891 DUCT, CLUTCH, AIR INLETDUCT, CLUTCH, AIR INLET
-
115521831 SEAL, OUTER, CLUTCH COVERSEAL, OUTER, CLUTCH COVER
-
125414156 HOSE, INTAKE, CLUTCHHOSE, INTAKE, CLUTCH
-
135410542 O-RINGO-RING
-
147177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
-
157512094 SCREW (QTY 8 IF BUILT 2/07/12 AND AFTER)SCREW (QTY 8 IF BUILT 2/07/12 AND AFTER)
-
167519278 ASM., BOLT/WASHERASM., BOLT/WASHER
-
177081116 CLAMP, RUBBER COATEDCLAMP, RUBBER COATED
-
187518533 BOLT (BUILT 2/07/12 AND AFTER)BOLT (BUILT 2/07/12 AND AFTER)
-
197547339 NUT (BUILT 2/07/12 AND AFTER)NUT (BUILT 2/07/12 AND AFTER)
