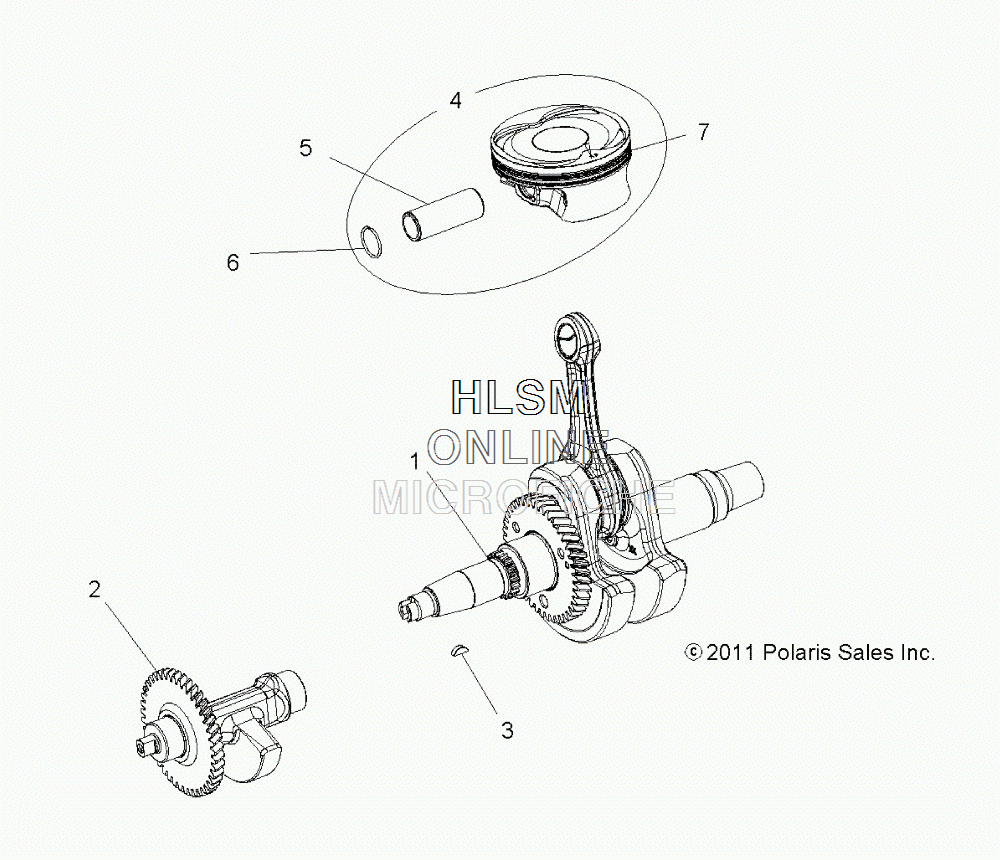

CRANKSHAFT W/ PISTON AND BALANCE SHAFT для Polaris RZR 570 EFI INTERNATIONAL [R12VH57FX] - 2012 года выпуска
-
№АртикулНазвание
-
11204729 ASM., CRANKSHAFT (INCL. CRANKSHAFT, JET, OIL PUMP)ASM., CRANKSHAFT (INCL. CRANKSHAFT, JET, OIL PUMP)
-
21204515 ASM., BALANCE SHAFTASM., BALANCE SHAFT
-
37721122 KEY, WOODRUFFKEY, WOODRUFF
-
43022288 ASM., PISTON (INCL. 4-7)ASM., PISTON (INCL. 4-7)
-
42204732 KIT, ASM., PISTON, 99MM, STANDARD (INCL. STANDARD SIZE PISTON, PIN, CLIPS, RING SET)KIT, ASM., PISTON, 99MM, STANDARD (INCL. STANDARD SIZE PISTON, PIN, CLIPS, RING SET)
-
42204734 KIT, ASM., PISTON, 99MM, +0.25MM (INCL. +0.25MM SIZE PISTON, PIN, CLIPS, RING SET)KIT, ASM., PISTON, 99MM, +0.25MM (INCL. +0.25MM SIZE PISTON, PIN, CLIPS, RING SET)
-
42204730 KIT, ASM., PISTON, 99MM, +0.50MM (INCL. +0.50MM SIZE PISTON, PIN, CLIPS, RING SET)KIT, ASM., PISTON, 99MM, +0.50MM (INCL. +0.50MM SIZE PISTON, PIN, CLIPS, RING SET)
-
53022291 PIN, PISTONPIN, PISTON
-
67710479 RING, RETAININGRING, RETAINING
-
72204733 KIT, RING, STANDARD (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)KIT, RING, STANDARD (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)
-
72204735 KIT, RING, +0.25MM (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)KIT, RING, +0.25MM (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)
-
72204731 KIT, RING, +0.50MM (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)KIT, RING, +0.50MM (INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING)
