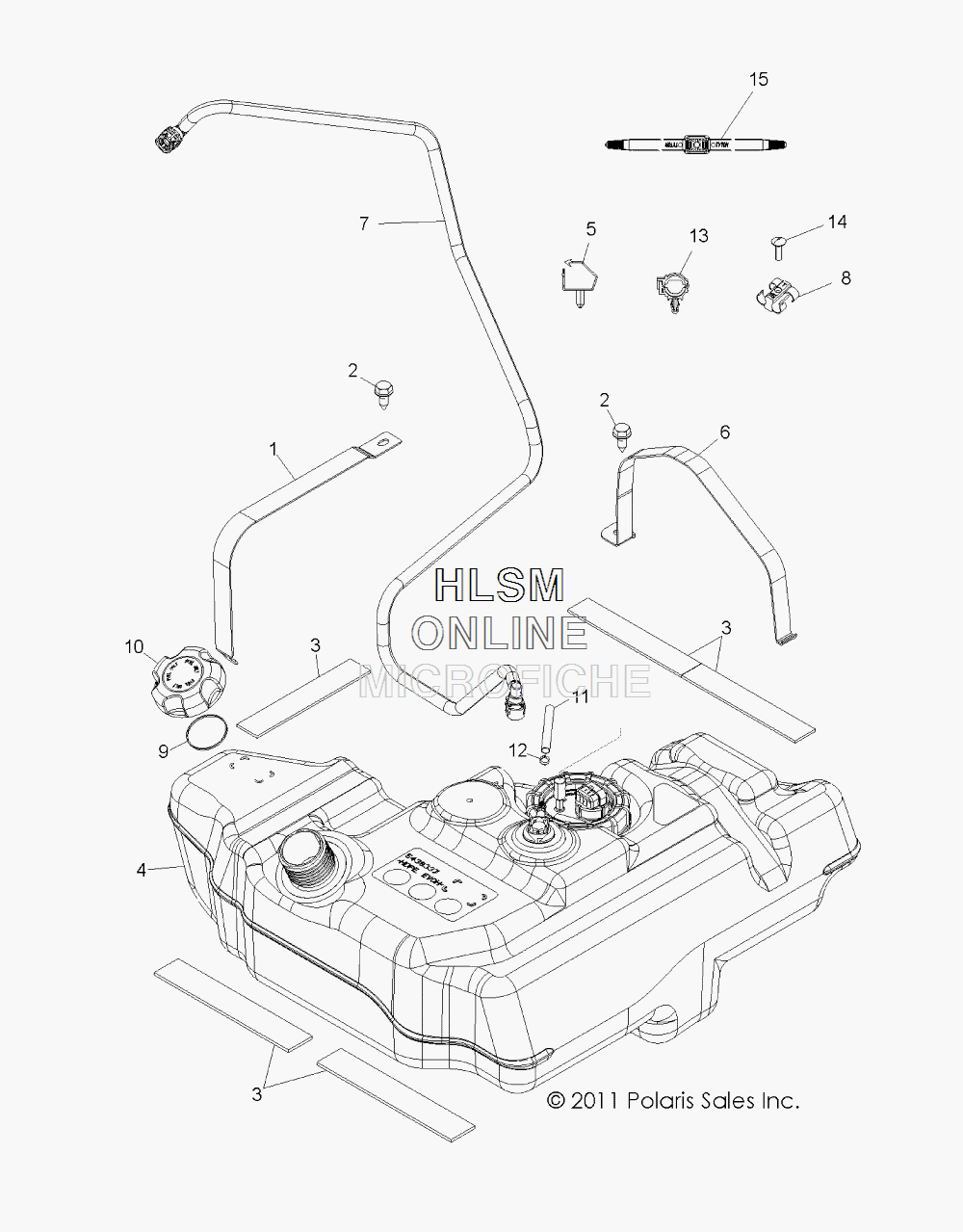

FUEL TANK ASM. для Polaris RZR 570 EFI INTERNATIONAL [R12VH57FX] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    5253844 BRACKET, TANK, REAR
    BRACKET, TANK, REAR
  • 2
    7518529 SCREW
    SCREW
  • 3
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 4
    2521204 ASM., FUEL TANK (INCL. PUMP)
    ASM., FUEL TANK (INCL. PUMP)
  • 4
    2204403 KIT, FUEL PUMP (INCL. PUMP, GASKET, NUT, ALCOHOL WIPE, INSTRUCTIONS)
    KIT, FUEL PUMP (INCL. PUMP, GASKET, NUT, ALCOHOL WIPE, INSTRUCTIONS)
  • 5
    7670109 CLIP, ROUTING
    CLIP, ROUTING
  • 6
    5253884 BRACKET, TANK, FRONT
    BRACKET, TANK, FRONT
  • 7
    2521252 ASM., FUEL LINE, RAIL TO TANK
    ASM., FUEL LINE, RAIL TO TANK
  • 8
    7081689 T-CLIP
    T-CLIP
  • 9
    5812123 GASKET
    GASKET
  • 10
    5433687 CAP, GAS TANK (INCL. 9)
    CAP, GAS TANK (INCL. 9)
  • 11
    8450126-104 LINE, FUEL (VENT)
    LINE, FUEL (VENT)
  • 12
    7080307 CLAMP, HOSE (BUILT 5/07/12 AND BEFORE)
    CLAMP, HOSE (BUILT 5/07/12 AND BEFORE)
  • 12
    7080236 CLAMP, HOSE (BUILT 5/08/12 AND AFTER)
    CLAMP, HOSE (BUILT 5/08/12 AND AFTER)
  • 13
    4020139 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 14
    7512025 SCREW
    SCREW
  • 15
    7081807 CLIP, LINE
    CLIP, LINE
