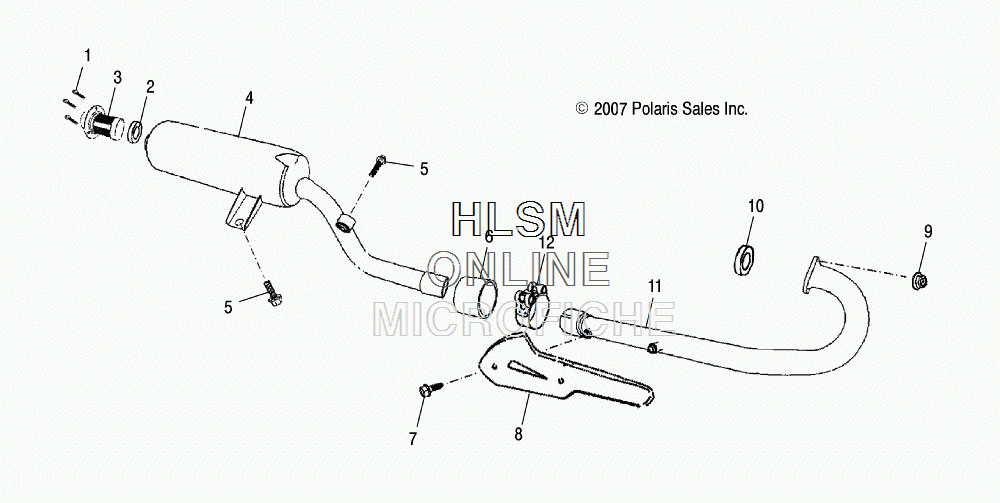

EXHAUST SYSTEM для Polaris PHOENIX 200 [A12PB20AF] - 2012 года выпуска
-
№АртикулНазвание
-
10453130 BOLT, HEXBOLT, HEX
-
20453132 GASKET, EXHAUSTGASKET, EXHAUST
-
30452317 ARRESTER, SPARKARRESTER, SPARK
-
40453116 PIPE, SILENCERPIPE, SILENCER
-
50452031 BOLTBOLT
-
60452584 COLLARCOLLAR
-
70452586 BOLTBOLT
-
80452583-067 SHIELD, HEADPIPE, BLACKSHIELD, HEADPIPE, BLACK
-
90450268 NUTNUT
-
100453761 GASKET, EXHAUSTGASKET, EXHAUST
-
110452308 PIPE, EXHAUST, FRONTPIPE, EXHAUST, FRONT
-
120453992 CLAMPCLAMP
