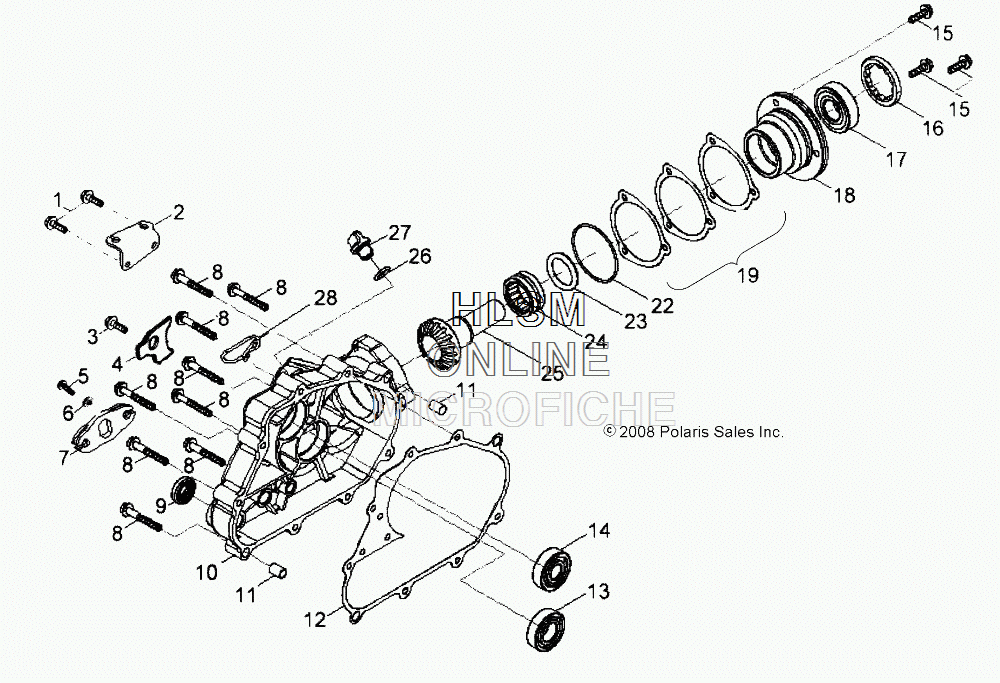

DRIVE - REAR для Polaris PHOENIX 200 [A12PB20AF] - 2012 года выпуска
-
№АртикулНазвание
-
10453814 BOLTBOLT
-
20454223 BRACKET, GEARCASEBRACKET, GEARCASE
-
30453505 BOLTBOLT
-
40453245 RETAINER, SIGHT GLASSRETAINER, SIGHT GLASS
-
50454011 BOLTBOLT
-
60452337 WASHERWASHER
-
70454224 DETENT, SHIFT LEVERDETENT, SHIFT LEVER
-
80452343 BOLTBOLT
-
90452175 SEAL, OILSEAL, OIL
-
100454225 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
110450142 PIN, DOWELPIN, DOWEL
-
120452334 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
130452346 BEARING, BALLBEARING, BALL
-
140452347 BEARING, BALLBEARING, BALL
-
150452350 BOLTBOLT
-
160452355 NUT, LOCKNUT, LOCK
-
170452354 BEARING, BALLBEARING, BALL
-
180452351 COLLAR, GEAR SHAFTCOLLAR, GEAR SHAFT
-
190452352 SHIM, SETSHIM, SET
-
220452353 O-RINGO-RING
-
230452357 SEAL, OILSEAL, OIL
-
240452358 BEARING, NEEDLEBEARING, NEEDLE
-
250452356 GEAR, SHAFT, OUTPUTGEAR, SHAFT, OUTPUT
-
260452394 O-RINGO-RING
-
270451813 PLUG, OILPLUG, OIL
-
280454226 RETAINER, GUIDERETAINER, GUIDE
