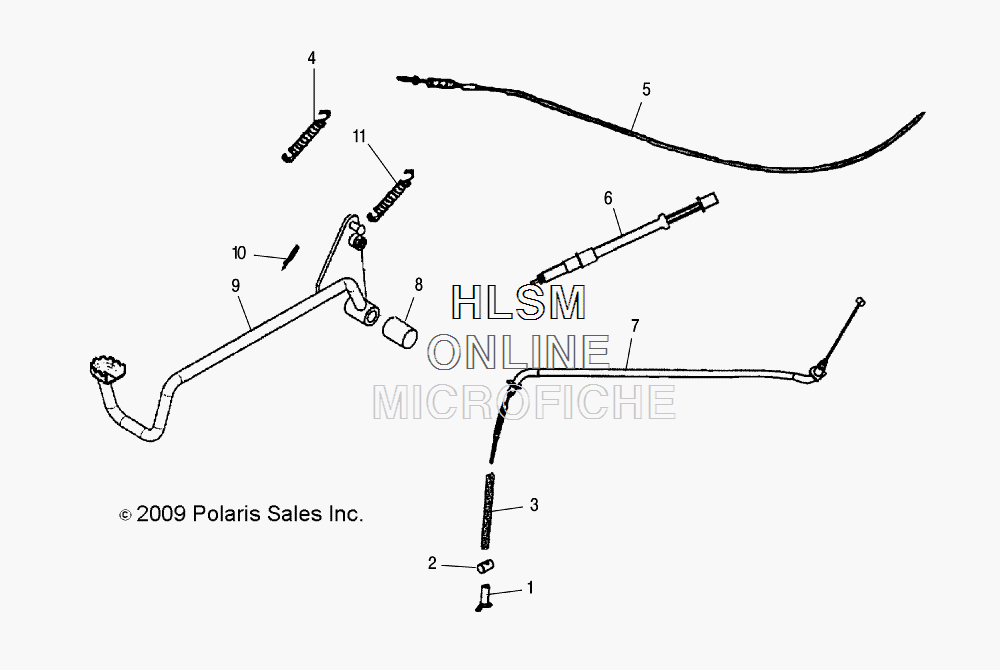

BRAKE - REAR для Polaris PHOENIX 200 [A12PB20AF] - 2012 года выпуска
-
№АртикулНазвание
-
10453095 NUT, BRAKE CABLE, REARNUT, BRAKE CABLE, REAR
-
20453094 SHAFT, THRU, REARSHAFT, THRU, REAR
-
30453192 SPRING, RETAININGSPRING, RETAINING
-
40454591 SPRING, BRAKE, REARSPRING, BRAKE, REAR
-
50453771 CABLE, HAND BRAKE, REARCABLE, HAND BRAKE, REAR
-
60453015 SWITCH, BRAKESWITCH, BRAKE
-
70453772 CABLE, BRAKE, REARCABLE, BRAKE, REAR
-
80453274 BUSHINGBUSHING
-
90454249 PEDAL, BRAKEPEDAL, BRAKE
-
100450719 PIN, COTTERPIN, COTTER
-
110452686 SPRING, BRAKESPRING, BRAKE
