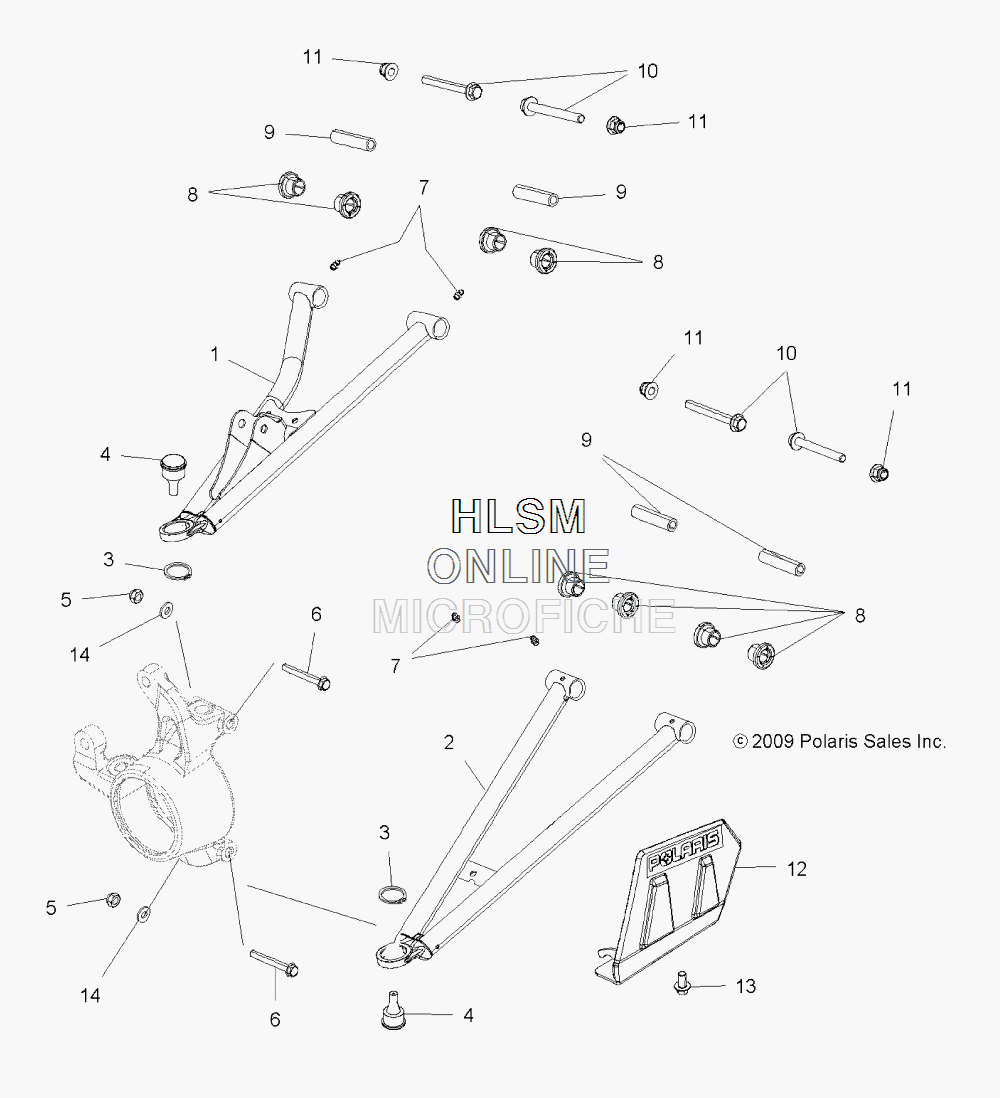

A-ARMS - FRONT для Polaris SPORTSMAN 850 X2 LE - 2011 года выпуска`
-
№АртикулНазвание
-
11017260-067 ARM, CONTROL, UPPER, FRONT (LEFT) (BLACK)ARM, CONTROL, UPPER, FRONT (LEFT) (BLACK)
-
11017261-067 ARM, CONTROL, UPPER, FRONT (RIGHT) (BLACK)ARM, CONTROL, UPPER, FRONT (RIGHT) (BLACK)
-
21017156-067 ARM, CONTROL, LOWER, FRONT (BLACK) (LEFT)ARM, CONTROL, LOWER, FRONT (BLACK) (LEFT)
-
21017157-067 ARM, CONTROL, LOWER, FRONT (BLACK) (RIGHT)ARM, CONTROL, LOWER, FRONT (BLACK) (RIGHT)
-
37710533 RING, RETAININGRING, RETAINING
-
47081666 JOINT, BALLJOINT, BALL
-
57547405 NUT, NYLOKNUT, NYLOK
-
67519212 SCREW, FLANGESCREW, FLANGE
-
77080433 FITTING, LUBRICATINGFITTING, LUBRICATING
-
85436798 BUSHING, CONTROL ARMBUSHING, CONTROL ARM
-
95137346 SHAFT, A-ARMSHAFT, A-ARM
-
107518466 BOLT, FLANGEBOLT, FLANGE
-
117547313 NUT, FLANGENUT, FLANGE
-
125436657-070 SHIELD, CV, FRONT (LEFT) (BLACK)SHIELD, CV, FRONT (LEFT) (BLACK)
-
125436658-070 SHIELD, CV, FRONT (RIGHT) (BLACK)SHIELD, CV, FRONT (RIGHT) (BLACK)
-
137518529 SCREWSCREW
-
147556557 WASHERWASHER
