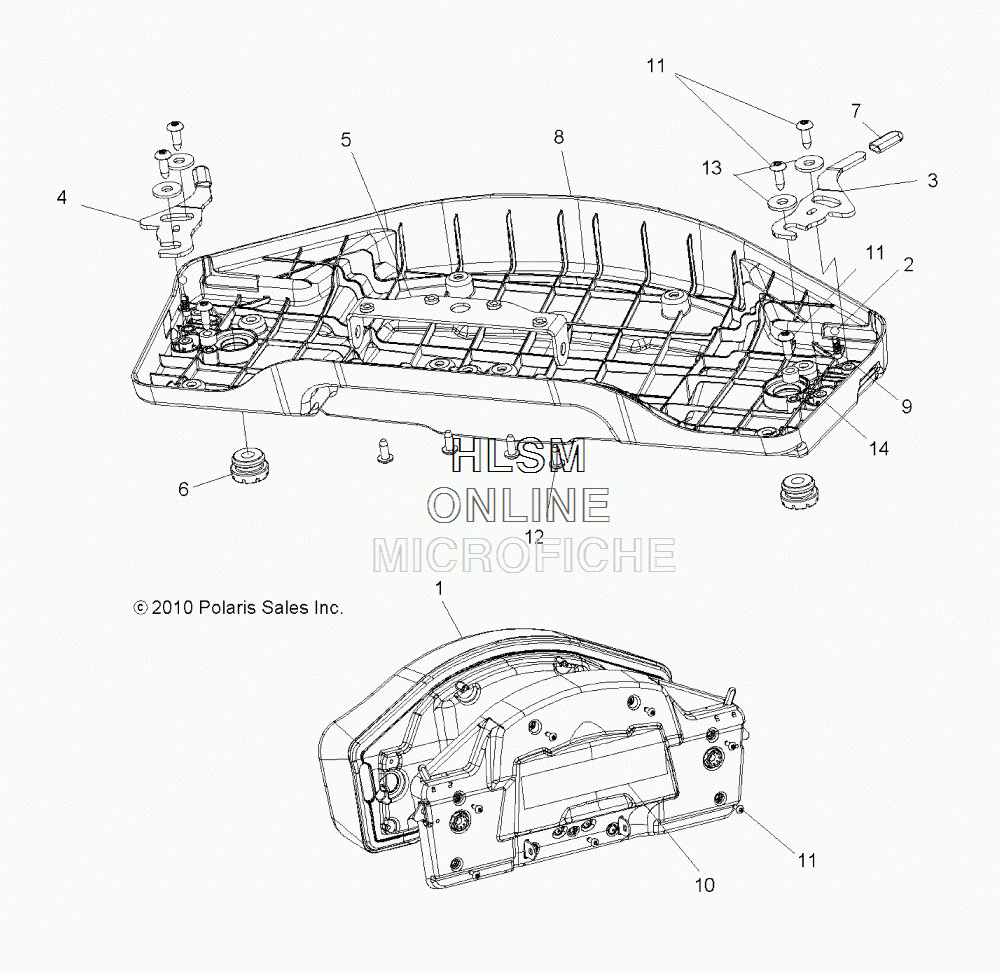

SEAT - PASSENGER- BOTTOM для Polaris SPORTSMAN 850 X2 LE - 2011 года выпуска
-
№АртикулНазвание
-
142684607-070 ASM., SEAT, PASSENGER, BOTTOMASM., SEAT, PASSENGER, BOTTOM
-
12684641-070 ASM., SEAT BUN, PASSENGERASM., SEAT BUN, PASSENGER
-
23514698 BEARING, BALL, DETENTBEARING, BALL, DETENT
-
35254314 BRACKET, LEVER (LEFT)BRACKET, LEVER (LEFT)
-
45254315 BRACKET, LEVER (RIGHT)BRACKET, LEVER (RIGHT)
-
55254316 BRACKET, SEAT PIVOTBRACKET, SEAT PIVOT
-
65412994 GROMMET. SEAT LATCHGROMMET. SEAT LATCH
-
75438230 CAP, VINYLCAP, VINYL
-
85438565 COVER, PASSENGER SEAT BOTTOMCOVER, PASSENGER SEAT BOTTOM
-
82684641-070 COVERING, SEAT (BLACK)COVERING, SEAT (BLACK)
-
97043668 SPRING, DETENTSPRING, DETENT
-
107173890 DECAL, WARNING, CONTAINER/PASSENGERDECAL, WARNING, CONTAINER/PASSENGER
-
117519045 SCREWSCREW
-
127519092 SCREWSCREW
-
137555960 WASHER, FLATWASHER, FLAT
-
147556318 SPACERSPACER
