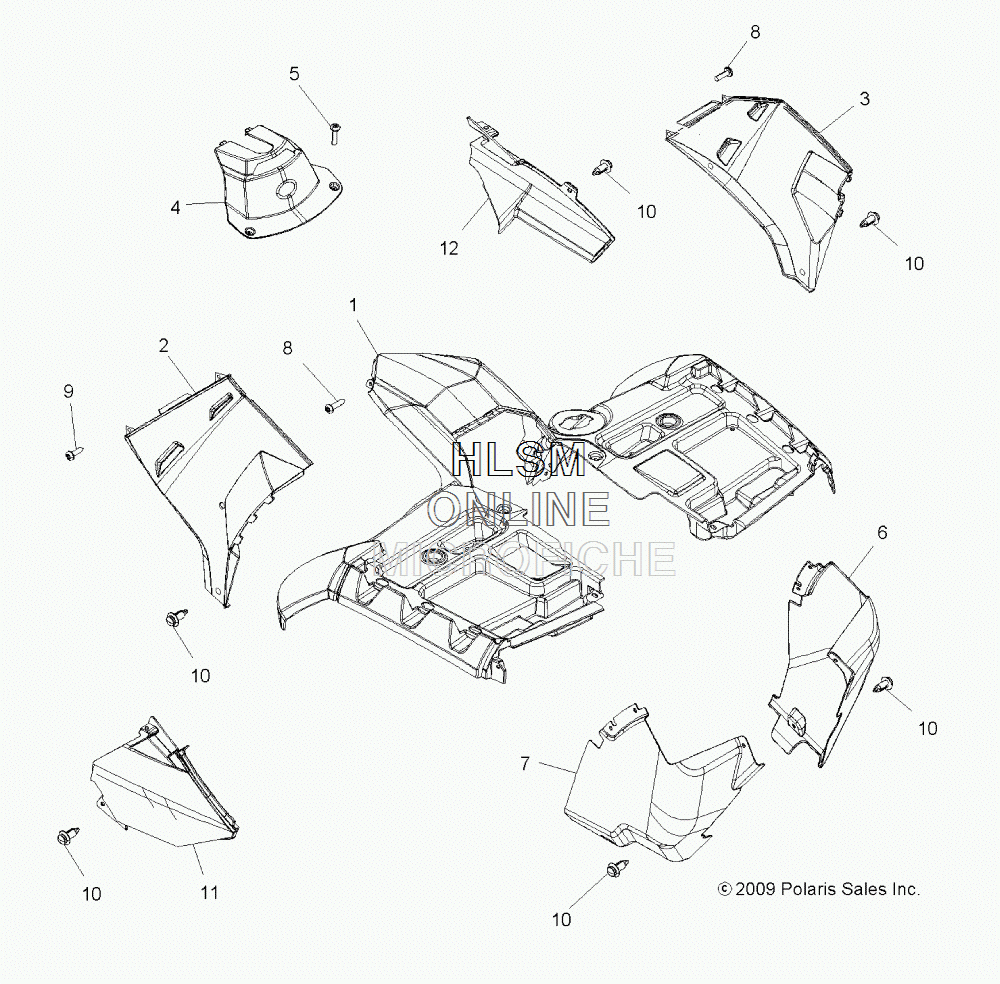

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 850 X2 LE - 2011 года выпуска
-
№АртикулНазвание
-
12633877-498 ASM., CAB, FRONT (SAGEBRUSH GREEN METALLIC) (INCL. WARNING DECALS)ASM., CAB, FRONT (SAGEBRUSH GREEN METALLIC) (INCL. WARNING DECALS)
-
25435816-070 PANEL, SIDE, UPPER (RIGHT) (BLACK)PANEL, SIDE, UPPER (RIGHT) (BLACK)
-
35435815-070 PANEL, SIDE, UPPER (LEFT) (BLACK)PANEL, SIDE, UPPER (LEFT) (BLACK)
-
45435827-498 COVER, FRONT (SAGEBRUSH GREEN METALLIC)COVER, FRONT (SAGEBRUSH GREEN METALLIC)
-
57518238 SCREWSCREW
-
65437062-070 GUARD, MUD, FRONT (LEFT) (BLACK)GUARD, MUD, FRONT (LEFT) (BLACK)
-
75437063-070 GUARD, MUD, FRONT (RIGHT) (BLACK)GUARD, MUD, FRONT (RIGHT) (BLACK)
-
87519045 SCREWSCREW
-
97519092 SCREWSCREW
-
107661855 RIVETRIVET
-
112633777 SHIELD, EXHAUST COVERSHIELD, EXHAUST COVER
-
125437476-070 PANEL, SIDE, LOWER (LEFT) (BLACK)PANEL, SIDE, LOWER (LEFT) (BLACK)
