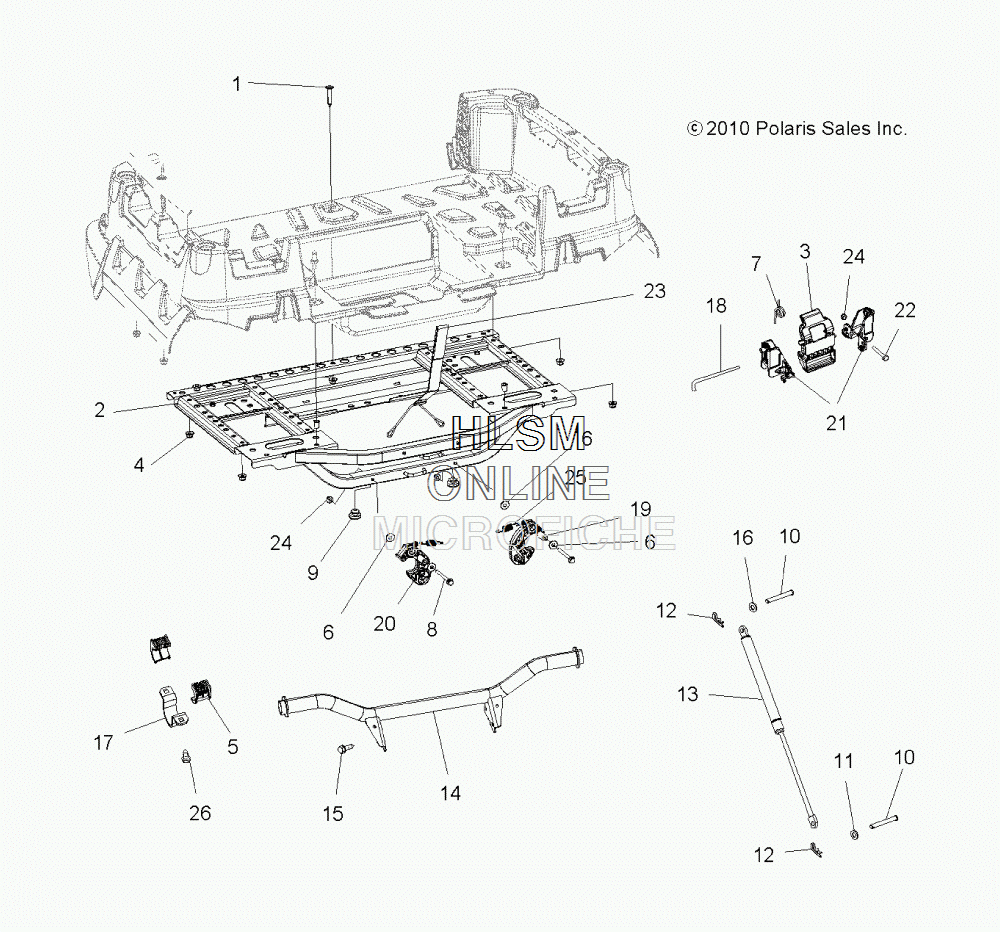

BOX FRAME W/ LATCH для Polaris SPORTSMAN 850 X2 LE - 2011 года выпуска
-
№АртикулНазвание
-
17518235 SCREWSCREW
-
21017689-329 FRAME, BOX (BLACK)FRAME, BOX (BLACK)
-
35438642 LATCH, SEAT, PASSENGERLATCH, SEAT, PASSENGER
-
47542343 NUT, FLANGENUT, FLANGE
-
55436128 BUSHING, STEERING, UPPERBUSHING, STEERING, UPPER
-
67556145 SHIMSHIM
-
77043694 SPRING, TORSIONSPRING, TORSION
-
87518512 BOLTBOLT
-
95412067 BUMPER, RUBBERBUMPER, RUBBER
-
107661163 PIN, CLEVISPIN, CLEVIS
-
117556373 SPACERSPACER
-
127661644 PIN, HITCHPIN, HITCH
-
137041725 SHOCK, DUMP BOXSHOCK, DUMP BOX
-
141017714-329 PIVOT, BOX, REAR (BLACK)PIVOT, BOX, REAR (BLACK)
-
157518555 BOLTBOLT
-
167556373 SPACERSPACER
-
175249143 BRACKET, STEERING BUSHING, UPPERBRACKET, STEERING BUSHING, UPPER
-
185336528 ROD, PIVOT, LATCHROD, PIVOT, LATCH
-
195336357 TUBE, SPACERTUBE, SPACER
-
205438512 HOOK, BOXHOOK, BOX
-
215438643 PIVOT, SEAT, PASSENGERPIVOT, SEAT, PASSENGER
-
227519090 SCREWSCREW
-
232684530 ASM., STRAP, BOX LATCHASM., STRAP, BOX LATCH
-
247547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
257043671 SPRING, EXTENSION, LATCHSPRING, EXTENSION, LATCH
-
267518555 BOLTBOLT
