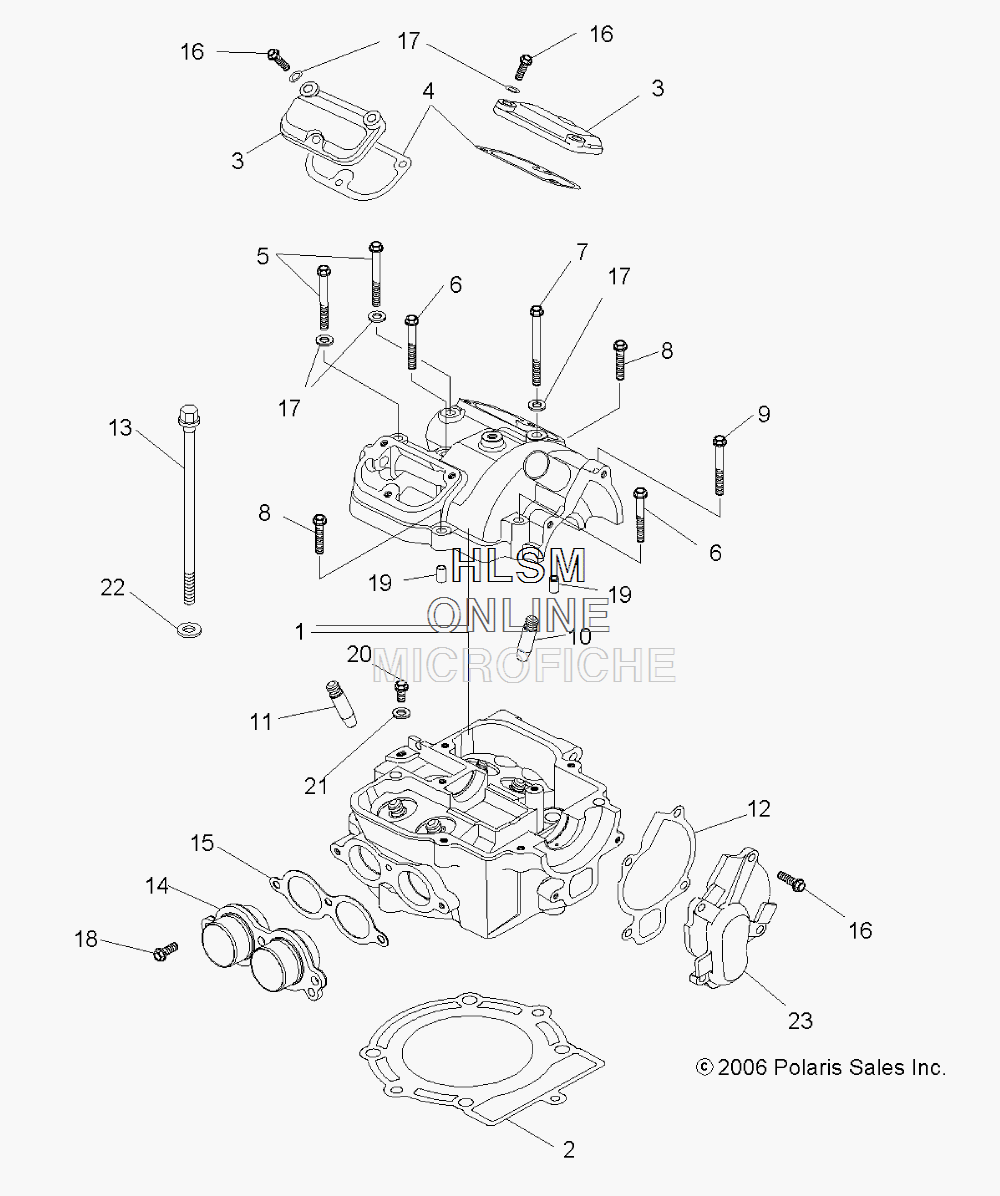

CYLINDER HEAD для Polaris OUTLAW 525 (S) (A10GJ52AA) (INDY RED) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    3021846 ASM., CYLINDER HEAD
    ASM., CYLINDER HEAD
  • 2
    5813169 GASKET, CYLINDER HEAD, 95.3 MM
    GASKET, CYLINDER HEAD, 95.3 MM
  • 3
    5631974 COVER, VALVE
    COVER, VALVE
  • 4
    5813175 GASKET, VALVE
    GASKET, VALVE
  • 5
    7518747 SCREW M6X55
    SCREW M6X55
  • 6
    7518728 SCREW M6X45
    SCREW M6X45
  • 7
    7518731 SCREW M6X75
    SCREW M6X75
  • 8
    7518730 SCREW M6X30
    SCREW M6X30
  • 9
    7518745 SCREW M6X35
    SCREW M6X35
  • 10
    3021878 GUIDE, VALVE, INTAKE
    GUIDE, VALVE, INTAKE
  • 11
    3021879 GUIDE, VALVE, EXHAUST
    GUIDE, VALVE, EXHAUST
  • 12
    5813172 GASKET, WATERPUMP COVER
    GASKET, WATERPUMP COVER
  • 13
    7518740 SCREW
    SCREW
  • 14
    1261762 FLANGE, EXHAUST
    FLANGE, EXHAUST
  • 15
    5813168 GASKET, EXHAUST FLANGE
    GASKET, EXHAUST FLANGE
  • 16
    7518723 SCREW
    SCREW
  • 17
    7556415 WASHER, COPPER
    WASHER, COPPER
  • 18
    7518738 SCREW
    SCREW
  • 19
    7661933 DOWEL
    DOWEL
  • 20
    7518739 SCREW
    SCREW
  • 21
    7556411 WASHER, COPPER
    WASHER, COPPER
  • 22
    7556412 WASHER
    WASHER
  • 23
    5135847 COVER, WATERPUMP
    COVER, WATERPUMP
