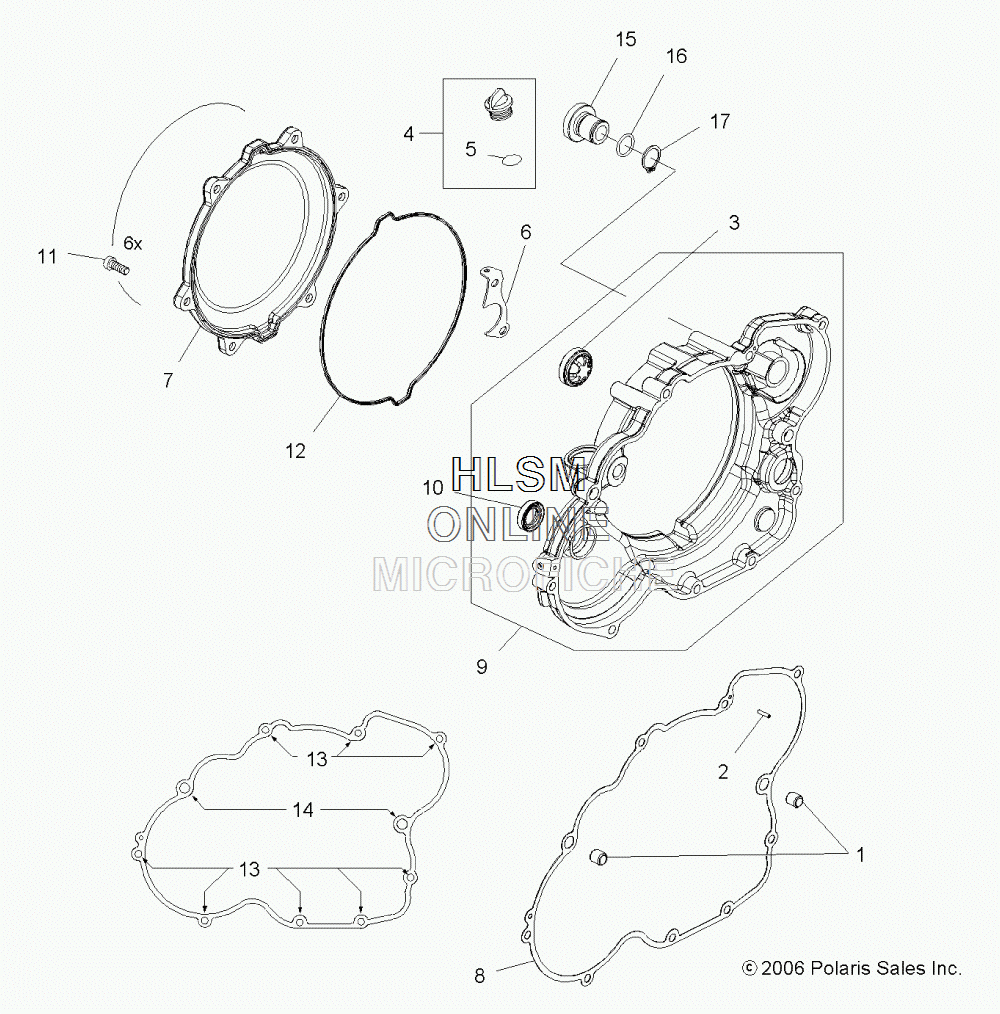

CLUTCH COVER для Polaris OUTLAW 525 (S) (A10GJ52AA) (INDY RED) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7661934 COLLAR, SPACER
    COLLAR, SPACER
  • 2
    7661936 NEEDLE, ROLLER
    NEEDLE, ROLLER
  • 3
    3610135 OIL CHECK, SIGHT GLASS
    OIL CHECK, SIGHT GLASS
  • 4
    5437030 PLUG, OIL FILL
    PLUG, OIL FILL
  • 5
    5413311 O-RING
    O-RING
  • 6
    5250952 BRACKET, FOOT BRAKE LEVER SPRING
    BRACKET, FOOT BRAKE LEVER SPRING
  • 7
    5135977 COVER, CLUTCH
    COVER, CLUTCH
  • 8
    5813174 GASKET, ENGINE COVER, RIGHT HAND
    GASKET, ENGINE COVER, RIGHT HAND
  • 9
    1203523 ASM., CLUTCH COVER CASE, RIGHT HAND
    ASM., CLUTCH COVER CASE, RIGHT HAND
  • 10
    5413244 SEAL, SHAFT
    SEAL, SHAFT
  • 11
    7518795 SCREW
    SCREW
  • 12
    5413309 GASKET, CLUTCH COVER, OUTER
    GASKET, CLUTCH COVER, OUTER
  • 13
    7518791 SCREW
    SCREW
  • 14
    7518745 SCREW
    SCREW
  • 15
    7052436 PLUG, KICK STARTER, BORE
    PLUG, KICK STARTER, BORE
  • 16
    5413310 O-RING
    O-RING
  • 17
    7710614 RING, SNAP
    RING, SNAP
