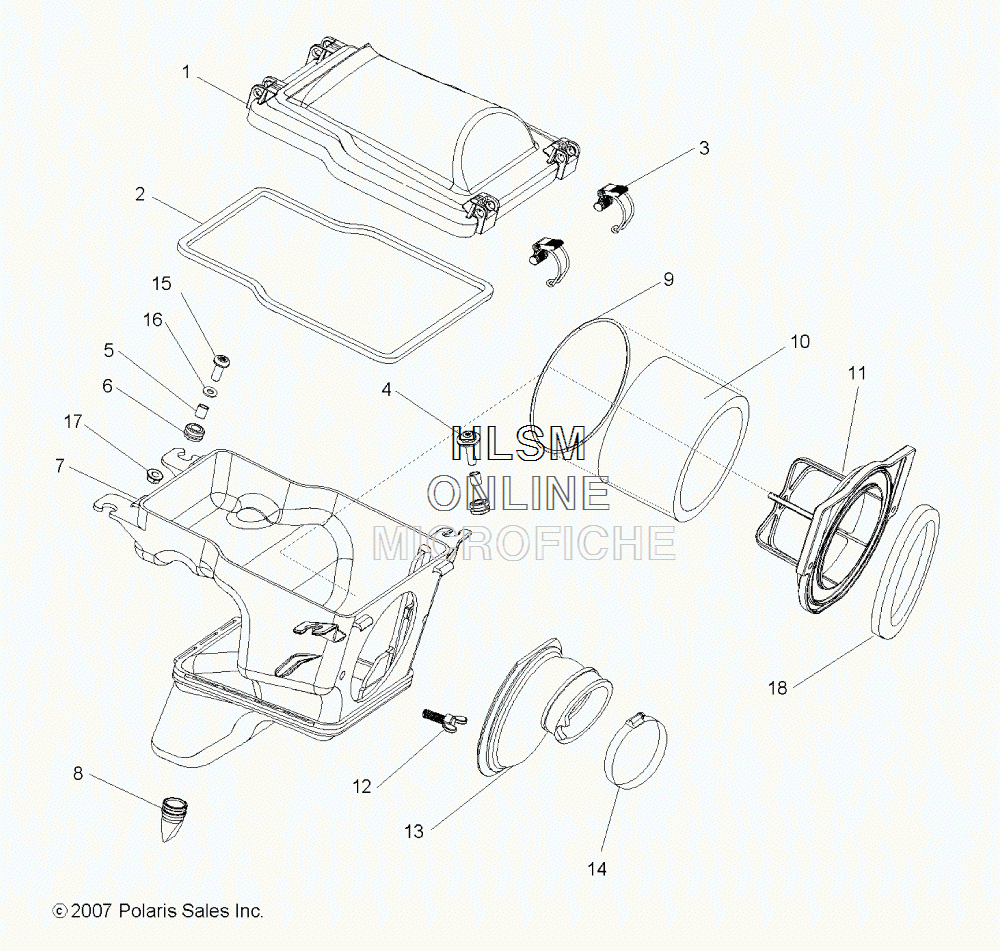

AIR INTAKE SYSTEM для Polaris OUTLAW 525 (S) (A10GJ52AA) (INDY RED) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1240350 ASM., AIR INTAKE (INCL. 1-13,18)
    ASM., AIR INTAKE (INCL. 1-13,18)
  • 1
    5437460 COVER, AIRBOX
    COVER, AIRBOX
  • 2
    5813269 SEAL, AIRBOX
    SEAL, AIRBOX
  • 3
    7081515 LATCH, AIRBOX
    LATCH, AIRBOX
  • 4
    7518196 SCREW
    SCREW
  • 5
    5436452 COLLAR, GROMMET
    COLLAR, GROMMET
  • 6
    5412961 GROMMET, RUBBER
    GROMMET, RUBBER
  • 7
    5437463 HOUSING, AIRBOX
    HOUSING, AIRBOX
  • 8
    5413449 DRAIN, AIRBOX
    DRAIN, AIRBOX
  • 9
    7081441 CLAMP, AIR FILTER
    CLAMP, AIR FILTER
  • 10
    2520863 FILTER, AIRBOX
    FILTER, AIRBOX
  • 11
    5437462 SUPPORT, INNER, AIRBOX
    SUPPORT, INNER, AIRBOX
  • 12
    7518879 SCREW
    SCREW
  • 13
    5437461 DUCT, AIRBOX
    DUCT, AIRBOX
  • 14
    7080413 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 15
    7512025 SCREW
    SCREW
  • 16
    7555799 WASHER
    WASHER
  • 17
    7518287 NUT, FLANGE
    NUT, FLANGE
  • 18
    5813286 SEAL, FILTER, AIRBOX
    SEAL, FILTER, AIRBOX
