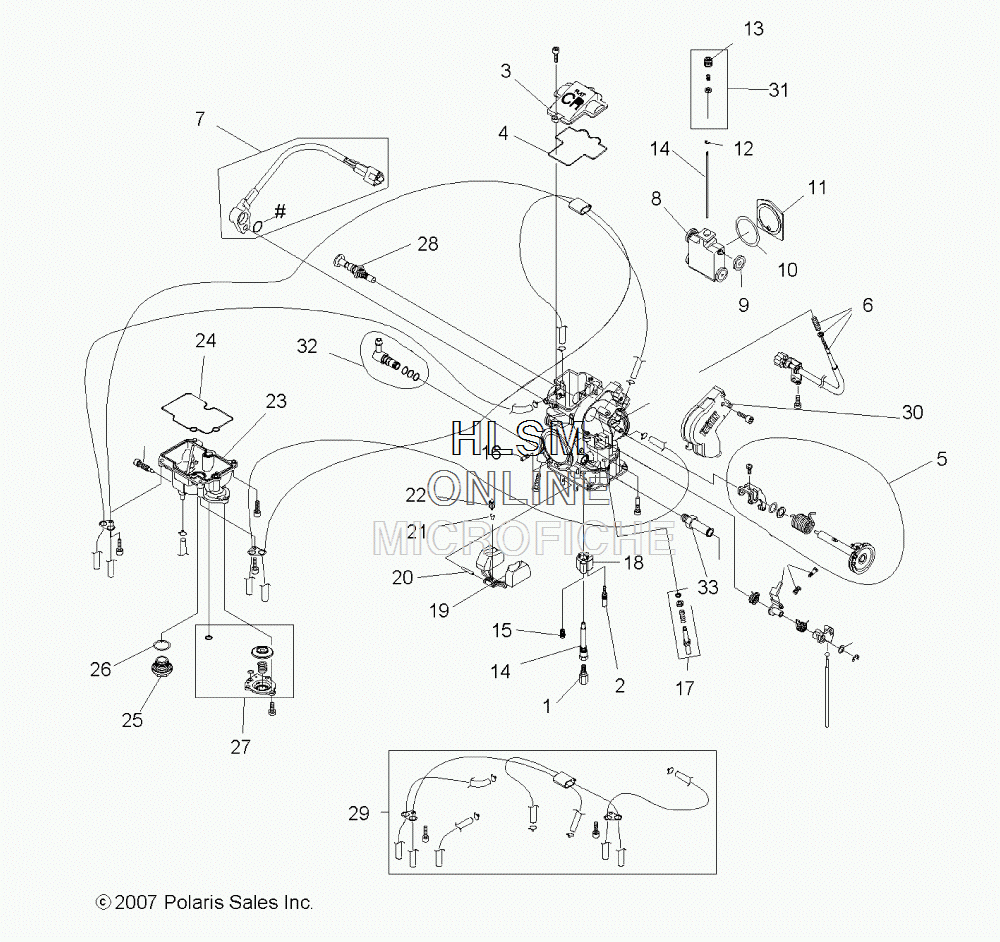

CARBURETOR для Polaris OUTLAW 525 (S) (A10GJ52AA) (INDY RED) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1203825 ASM., CARBURETOR, KEIHIN
    ASM., CARBURETOR, KEIHIN
  • 1
    3050235-120 MAIN JET, KHN 120
    MAIN JET, KHN 120
  • 1
    3050235-122 MAIN JET, KHN 122
    MAIN JET, KHN 122
  • 1
    3050235-125 MAIN JET, KHN 125
    MAIN JET, KHN 125
  • 1
    3050235-128 MAIN JET, KHN 128
    MAIN JET, KHN 128
  • 1
    3050235-130 MAIN JET, KHN 130
    MAIN JET, KHN 130
  • 1
    3050235-132 MAIN JET, KHN 132
    MAIN JET, KHN 132
  • 1
    3050235-135 MAIN JET, KHN 135
    MAIN JET, KHN 135
  • 1
    3050235-138 MAIN JET, KHN 138 (STOCK)
    MAIN JET, KHN 138 (STOCK)
  • 1
    3050235-140 MAIN JET, KHN 140
    MAIN JET, KHN 140
  • 1
    3050235-142 MAIN JET, KHN 142
    MAIN JET, KHN 142
  • 1
    3050235-145 MAIN JET, KHN 145
    MAIN JET, KHN 145
  • 1
    3050235-148 MAIN JET, KHN 148
    MAIN JET, KHN 148
  • 1
    3050235-150 MAIN JET, KHN 150
    MAIN JET, KHN 150
  • 1
    3050235-152 MAIN JET, KHN 152
    MAIN JET, KHN 152
  • 1
    3050235-155 MAIN JET, KHN 155
    MAIN JET, KHN 155
  • 1
    3050235-158 MAIN JET, KHN 158
    MAIN JET, KHN 158
  • 1
    3050235-160 MAIN JET, KHN 160
    MAIN JET, KHN 160
  • 1
    3050235-162 MAIN JET, KHN 162
    MAIN JET, KHN 162
  • 1
    3050235-165 MAIN JET, KHN 165
    MAIN JET, KHN 165
  • 1
    3050235-168 MAIN JET, KHN 168
    MAIN JET, KHN 168
  • 1
    3050235-170 MAIN JET, KHN 170
    MAIN JET, KHN 170
  • 2
    3050219-40 PILOT JET, KHN
    PILOT JET, KHN
  • 2
    3050219-42 PILOT JET, KHN
    PILOT JET, KHN
  • 2
    3050219-45 PILOT JET
    PILOT JET
  • 2
    3050219-48 PILOT JET, KHN
    PILOT JET, KHN
  • 2
    3050219-50 PILOT JET, KHN
    PILOT JET, KHN
  • 3
    3131652 COVER, CARBURETOR TOP
    COVER, CARBURETOR TOP
  • 4
    3131653 SEAL, CARBURETOR COVER
    SEAL, CARBURETOR COVER
  • 5
    2203567 KIT, THROTTLE SHAFT, FCR
    KIT, THROTTLE SHAFT, FCR
  • 6
    2203526 KIT, IDLE SPEED SCREW
    KIT, IDLE SPEED SCREW
  • 7
    2203527 KIT, THROTTLE POSITION SENSOR
    KIT, THROTTLE POSITION SENSOR
  • 8
    3131657 VALVE, THROTTLE
    VALVE, THROTTLE
  • 9
    3131658 ROLLER, THROTTLE VALVE
    ROLLER, THROTTLE VALVE
  • 10
    3131659 SEAL, THROTTLE VALVE
    SEAL, THROTTLE VALVE
  • 11
    3131660 PLATE, THROTTLE VALVE
    PLATE, THROTTLE VALVE
  • 12
    3131661 CLIP, NEEDLE
    CLIP, NEEDLE
  • 13
    3131662 SCREW, NEEDLE SET
    SCREW, NEEDLE SET
  • 14
    2203641 KIT, CARB, NEEDLE JET AND SEAT, 450
    KIT, CARB, NEEDLE JET AND SEAT, 450
  • 15
    3131663 STARTER JET, KHN (#85)
    STARTER JET, KHN (#85)
  • 16
    3131677 SLOW AIR JET, KHN (#100)
    SLOW AIR JET, KHN (#100)
  • 17
    2203522 KIT, PILOT SCREW
    KIT, PILOT SCREW
  • 18
    3131665 PLATE, BUFFER
    PLATE, BUFFER
  • 19
    3131666 FLOAT, CARBURETOR
    FLOAT, CARBURETOR
  • 20
    3050232 PIN, FLOAT
    PIN, FLOAT
  • 21
    3050229 CLIP, FLOAT VALVE
    CLIP, FLOAT VALVE
  • 22
    2203523 KIT, FLOAT NEEDLE AND SEAT
    KIT, FLOAT NEEDLE AND SEAT
  • 23
    3131667 BOWL, FLOAT
    BOWL, FLOAT
  • 24
    3131668 SEAL, FLOAT BOWL
    SEAL, FLOAT BOWL
  • 25
    3131669 PLUG, FLOAT BOWL DRAIN
    PLUG, FLOAT BOWL DRAIN
  • 26
    3050217 O-RING, PLUG SCREW
    O-RING, PLUG SCREW
  • 27
    2203524 KIT, ACCELERATOR PUMP BOWL
    KIT, ACCELERATOR PUMP BOWL
  • 28
    3131670 VALVE, CHOKE
    VALVE, CHOKE
  • 29
    2203525 KIT, BREATHER HOSES
    KIT, BREATHER HOSES
  • 30
    3131671 COVER, THROTTLE
    COVER, THROTTLE
  • 31
    2203530 KIT, NEEDLE SET SCREW, FCR
    KIT, NEEDLE SET SCREW, FCR
  • 32
    2203568 KIT, FUEL INLET FITTING
    KIT, FUEL INLET FITTING
  • 33
    3131675 FITTING, BREATHER HOSE
    FITTING, BREATHER HOSE
