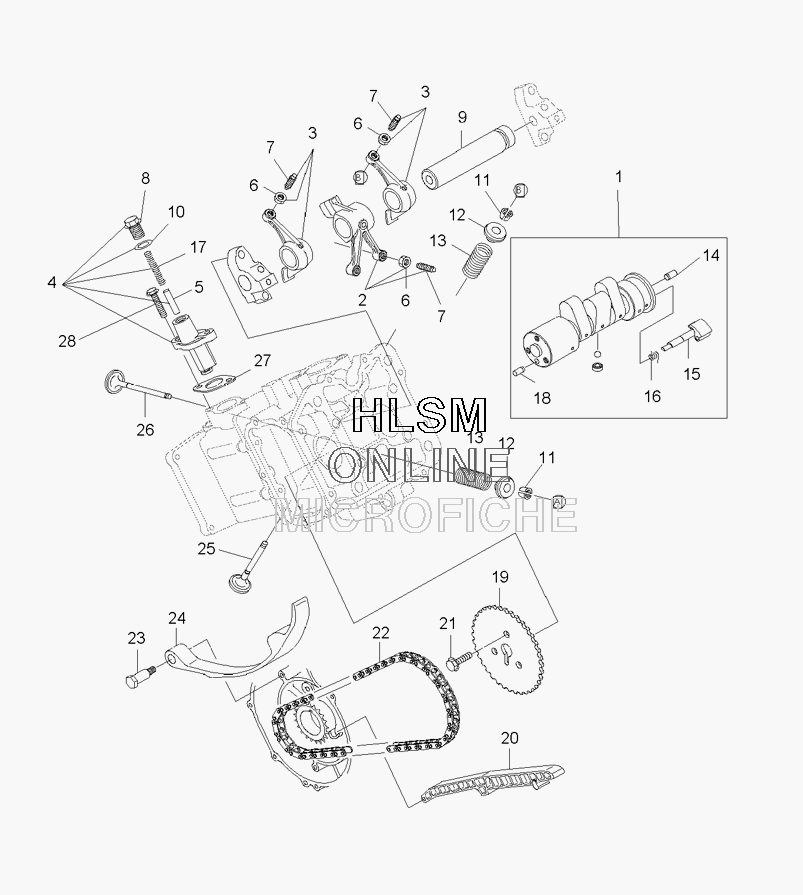

CAMSHAFT W/ VALVE ASSY. для Polaris SPORTSMAN 500 EFI (A09MN50AN) (RED) - 2009 года выпуска`
-
№АртикулНазвание
-
13085855 ASM.,CAMSHAFT (INCL. 14,15,16,18)ASM.,CAMSHAFT (INCL. 14,15,16,18)
-
23084913 ROCKER ARM ASM,EXHAUST (INCL. 6,7)ROCKER ARM ASM,EXHAUST (INCL. 6,7)
-
33084910 ROCKER ARM ASM,INTAKE (INCL. 6,7)ROCKER ARM ASM,INTAKE (INCL. 6,7)
-
43086493 TENSIONER,ASM. (INCL. 5,8,10,17)TENSIONER,ASM. (INCL. 5,8,10,17)
-
53087132 PINPIN
-
63084912 NUTNUT
-
73084911 SCREW, ADJUSTINGSCREW, ADJUSTING
-
83087129 PLUGPLUG
-
93084909 SHAFT,ROCKERSHAFT,ROCKER
-
103087130 GASKET, PLUGGASKET, PLUG
-
113084908 COLLET,VALVECOLLET,VALVE
-
123087203 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
133086892 SPRING,VALVESPRING,VALVE
-
143086838 PIN,DOWELPIN,DOWEL
-
153085348 LEVER, RELEASELEVER, RELEASE
-
163085076 SPRING,RETURNSPRING,RETURN
-
173087131 SPRING, TENSIONERSPRING, TENSIONER
-
183084899 PIN,DOWELPIN,DOWEL
-
193084914 SPROCKET 2SPROCKET 2
-
203084916 GUIDE,CHAINGUIDE,CHAIN
-
213081657 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
223084915 CHAIN, TIMINGCHAIN, TIMING
-
233084924 ASM.,BOLT,PIVOT,LEVERASM.,BOLT,PIVOT,LEVER
-
243084917 LEVERLEVER
-
253085349 VALVE,INTAKEVALVE,INTAKE
-
263085412 VALVE, EXHAUSTVALVE, EXHAUST
-
273086448 GASKET-TENSIONERGASKET-TENSIONER
-
283083361 BOLT, FLANGEBOLT, FLANGE
