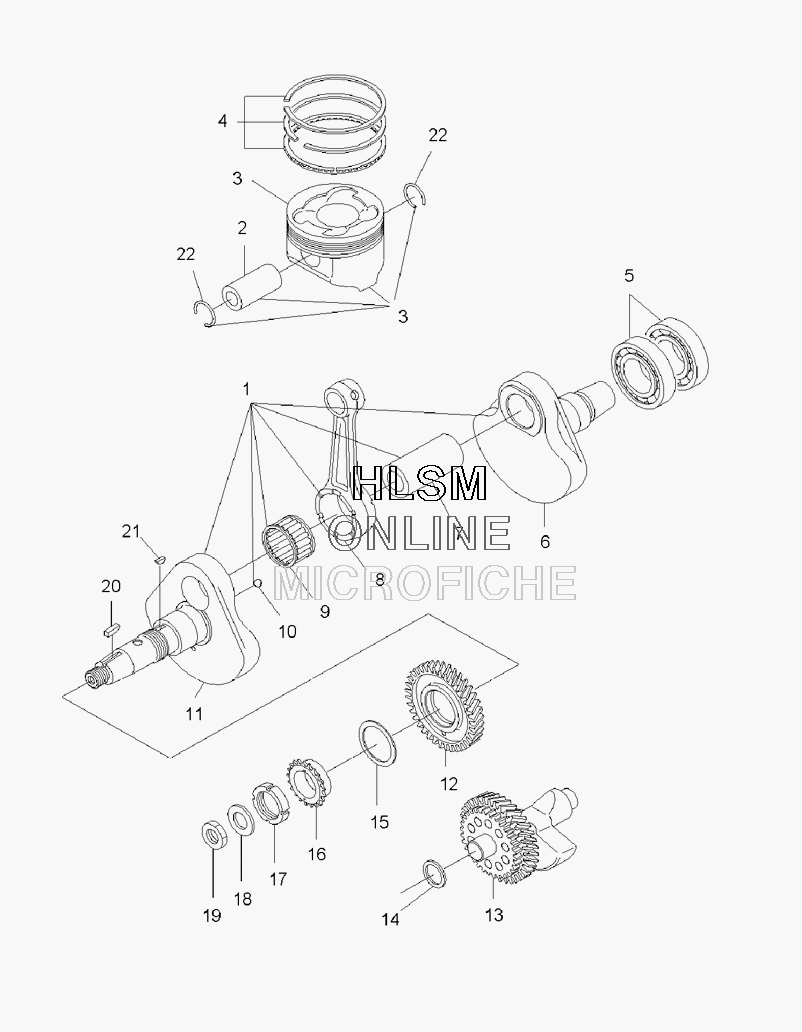

CRANKSHAFT W/ PISTON для Polaris SPORTSMAN 500 EFI (A09MN50AN) (RED) - 2009 года выпуска
-
№АртикулНазвание
-
13089570 ASM.,CRANKSHAFT (INCL. 6-12)ASM.,CRANKSHAFT (INCL. 6-12)
-
33087221 SET,PISTON,STANDARD (INCL. 2,22)SET,PISTON,STANDARD (INCL. 2,22)
-
33087222 SET,PISTON,.010''/.25MM O/S (INCL. 2,22)SET,PISTON,.010''/.25MM O/S (INCL. 2,22)
-
33087223 SET,PISTON,.020''/.50MM O/SSET,PISTON,.020''/.50MM O/S
-
43087224 SET,PISTON,RING,STANDARDSET,PISTON,RING,STANDARD
-
43087225 SET,PISTON,RING,.010''/.25MM O/SSET,PISTON,RING,.010''/.25MM O/S
-
43087226 SET,PISTON,RING,.020''/.50MM O/SSET,PISTON,RING,.020''/.50MM O/S
-
53085815 BEARING,BALLBEARING,BALL
-
63085812 CRANKSHAFT,#2CRANKSHAFT,#2
-
73087090 PIN-CRANKPIN-CRANK
-
83085813 ROD,CONNECTINGROD,CONNECTING
-
93085343 BEARING,LARGE ENDBEARING,LARGE END
-
103085024 BALL, STEELBALL, STEEL
-
113089678 CRANKSHAFT 1CRANKSHAFT 1
-
123089245 BALANCE GEAR 1BALANCE GEAR 1
-
133090031 SHAFT-BALANCER,COMPLETESHAFT-BALANCER,COMPLETE
-
143084895 SPACER,0.8SPACER,0.8
-
143084896 SPACER,1.0SPACER,1.0
-
143084897 SPACER,1.2SPACER,1.2
-
153240088 SPACER,0.6SPACER,0.6
-
153084892 SPACER,0.8SPACER,0.8
-
153084893 SPACER,1.0SPACER,1.0
-
153084894 SPACER,1.2SPACER,1.2
-
163084882 SPROCKET 1SPROCKET 1
-
173085528 NUT,SLITNUT,SLIT
-
183086767 WASHERWASHER
-
193083905 NUT,LOCKNUT,LOCK
-
203081447 KEYKEY
-
213240168 KEY, WOODRUFF,KEY, WOODRUFF,
-
223085534 CLIPCLIP
