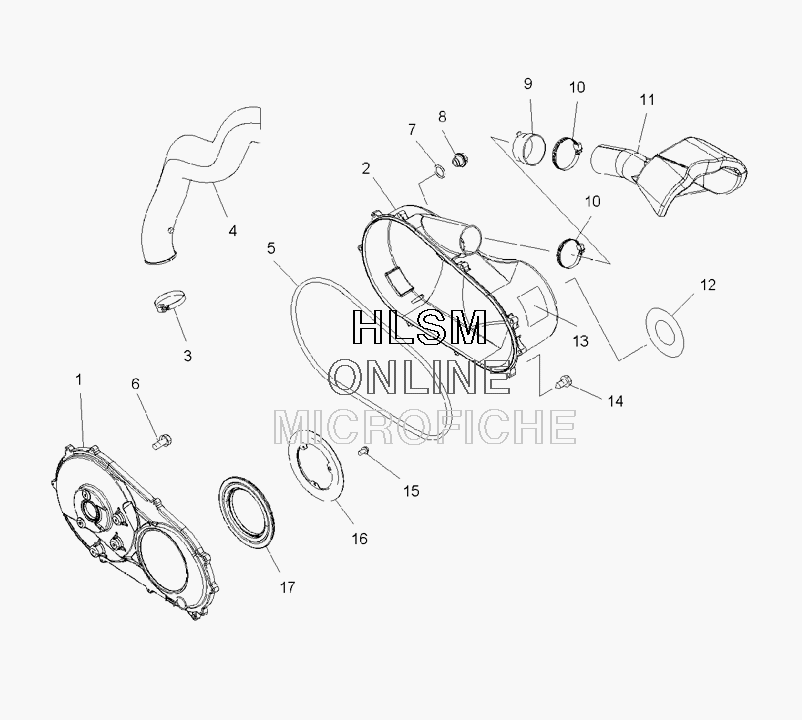

CLUTCH COVER для Polaris SPORTSMAN 500 EFI (A09MN50AN) (RED) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2201954 KIT-INNER CLUTCH CVR,SVC (INCL. INNER COVER, 5,14,17)
    KIT-INNER CLUTCH CVR,SVC (INCL. INNER COVER, 5,14,17)
  • 2
    2633262 ASM-COVER,CLUTCH,OUTER,HV (INCL. OUTER COVER, 7,8)
    ASM-COVER,CLUTCH,OUTER,HV (INCL. OUTER COVER, 7,8)
  • 3
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 4
    5436958 DUCT-AIR INLET,CLUTCH
    DUCT-AIR INLET,CLUTCH
  • 5
    5521738 SEAL-OUTER CLUTCH COVER
    SEAL-OUTER CLUTCH COVER
  • 6
    7517599 ASM.,BOLT /WASHERIGHT HAND88
    ASM.,BOLT /WASHERIGHT HAND88
  • 7
    5410542 O RING
    O RING
  • 8
    5434264 PLUG-DRAIN
    PLUG-DRAIN
  • 9
    5412636 BOOT-DUCT,HI-FLOW
    BOOT-DUCT,HI-FLOW
  • 10
    7081279 CLAMP-BAND,NARROW 70-90MM
    CLAMP-BAND,NARROW 70-90MM
  • 11
    5436952 DUCT-CLUTCH OUTLET
    DUCT-CLUTCH OUTLET
  • 12
    7172747 DECAL-AUTO.TRANSMISSION,EBS
    DECAL-AUTO.TRANSMISSION,EBS
  • 13
    7172563 DECAL
    DECAL
  • 14
    7512094 SCREW
    SCREW
  • 15
    3084205 ASM.,SCREW AND WASHER
    ASM.,SCREW AND WASHER
  • 16
    5242046 BRKT-CLUTCH SEAL
    BRKT-CLUTCH SEAL
  • 17
    5412637 SEAL-COVER CASE,ENGINE
    SEAL-COVER CASE,ENGINE
