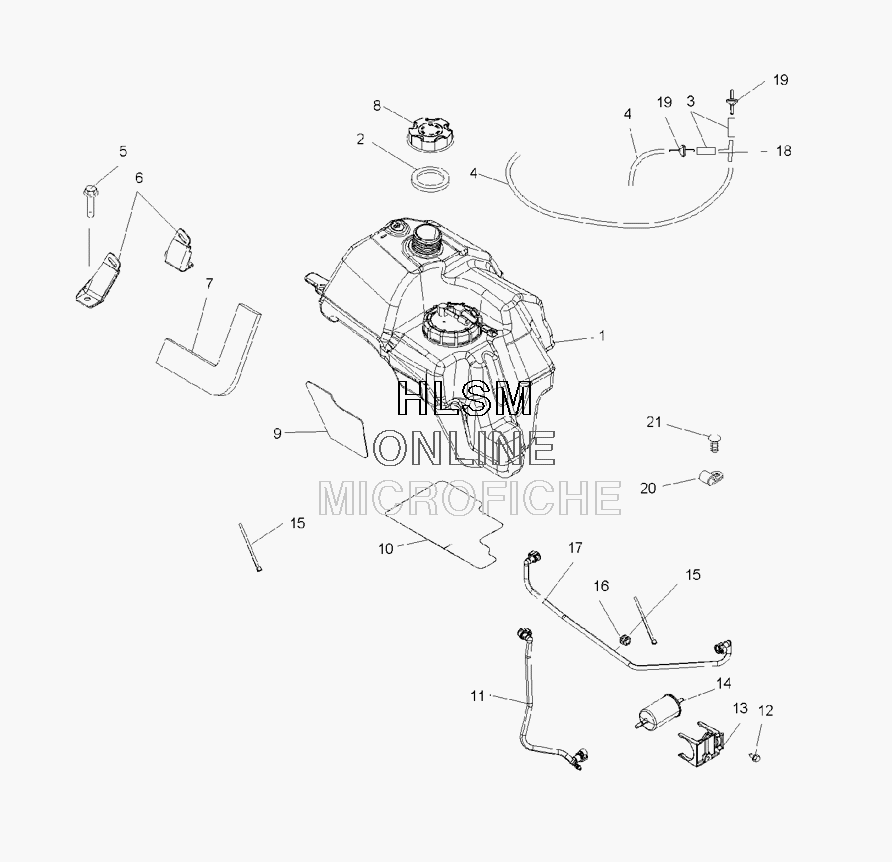

FUEL TANK для Polaris SPORTSMAN 500 EFI (A09MN50AN) (RED) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2520865 ASM-FUEL TANK,SPMN EFI (INCL. PUMP, 9,10)
    ASM-FUEL TANK,SPMN EFI (INCL. PUMP, 9,10)
  • 2
    5812123 GASKET
    GASKET
  • 3
    8450061-600 LINE,FUEL,3MMX7MM
    LINE,FUEL,3MMX7MM
  • 4
    8360009-600 LINE,FUEL,1/8 ID,600 CM.
    LINE,FUEL,1/8 ID,600 CM.
  • 5
    7515179 SCREW
    SCREW
  • 6
    5247184 BRKT-FUEL COVER MT LEFT HAND,PLTD
    BRKT-FUEL COVER MT LEFT HAND,PLTD
  • 6
    5247185 BRKT-FUEL COVER MT RIGHT HAND,PLTD
    BRKT-FUEL COVER MT RIGHT HAND,PLTD
  • 7
    5812265 SEAL-FOAM,12 IN
    SEAL-FOAM,12 IN
  • 8
    5433687 CAP,GAS TANK
    CAP,GAS TANK
  • 9
    5813282 FOIL-FUEL TANK,SIDE,SPORTSMAN
    FOIL-FUEL TANK,SIDE,SPORTSMAN
  • 10
    5813218 FOIL-FUEL TANK,SPORTSMAN
    FOIL-FUEL TANK,SPORTSMAN
  • 11
    2520791 LINE, FUEL, TANK TO FILTER
    LINE, FUEL, TANK TO FILTER
  • 12
    7512232 BOLT
    BOLT
  • 13
    5436013 MOUNT-FUEL FILTER
    MOUNT-FUEL FILTER
  • 14
    2520464 FILTER-FUEL,QUICK CONNECT
    FILTER-FUEL,QUICK CONNECT
  • 15
    7080138 CABLE TIE
    CABLE TIE
  • 16
    5413317 GROMMET-ELEC SHOCK WIRE,SLIT
    GROMMET-ELEC SHOCK WIRE,SLIT
  • 17
    2520807 LINE, FUEL, FILTER TO RAIL (INCL. 15-16)
    LINE, FUEL, FILTER TO RAIL (INCL. 15-16)
  • 18
    7052048 FITTING, TEE,
    FITTING, TEE,
  • 19
    7051011 VALVE,CHECK
    VALVE,CHECK
  • 20
    7080499 CLAMP, CABLE
    CLAMP, CABLE
  • 21
    7661953 CLIP-XMAS TREE,.70X.187 DIA
    CLIP-XMAS TREE,.70X.187 DIA
