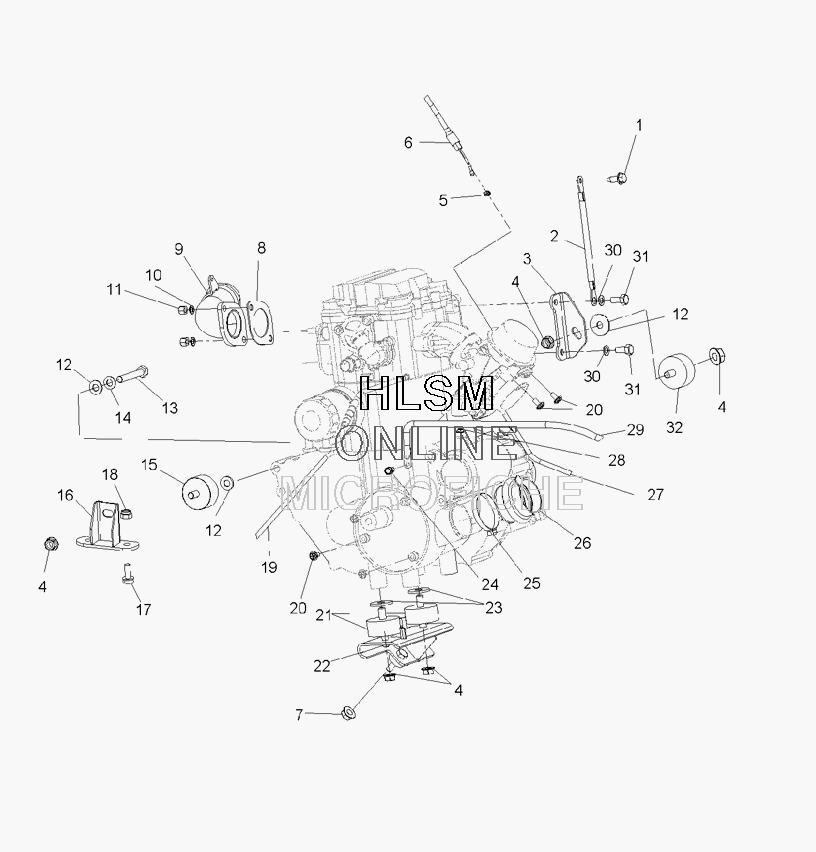

ENGINE MOUNTING W/ SHORT BLOCK для Polaris SCRAMBLER 500 (A09BG50AA) - 2009 года выпуска`
-
№АртикулНазвание
-
17517386 SCREWSCREW
-
24010132 CABLE, GND-ENGINECABLE, GND-ENGINE
-
35242674 BRKT, ENG.MT,TOP, BLKBRKT, ENG.MT,TOP, BLK
-
47547108 NUTNUT
-
53084696 GUIDE, CABLEGUIDE, CABLE
-
67081170 CABLE-THROTTLE, 1/4 TURN, 4 STKCABLE-THROTTLE, 1/4 TURN, 4 STK
-
77547089 NUT-3/8-16 FLG LOCK-YNUT-3/8-16 FLG LOCK-Y
-
83085075 ASM., GASKET(EXHAUST)ASM., GASKET(EXHAUST)
-
93080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
113087199 NUTNUT
-
127555823 WASHERWASHER
-
137515417 SCREWSCREW
-
147552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
153110067 MOUNT, MOTORMOUNT, MOTOR
-
161040688-067 MOUNT, FRONTENGINE, BLACKMOUNT, FRONTENGINE, BLACK
-
177515398 SCREWSCREW
-
187542324 NUT, NYLOKNUT, NYLOK
-
197081177 CABLE-CHOKE, FRICTION, 26''CABLE-CHOKE, FRICTION, 26''
-
203084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
213022072 ISOLATOR-3/8-24M, 3/8-16M, 60 DURISOLATOR-3/8-24M, 3/8-16M, 60 DUR
-
221014993-067 MOUNT, ENGINE, REAR, BLACKMOUNT, ENGINE, REAR, BLACK
-
237555815 WASHER, FLATWASHER, FLAT
-
243084874 BOLT, FLANGEBOLT, FLANGE
-
257080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
265412487 BOOT-CLUTCH, INTAKEBOOT-CLUTCH, INTAKE
-
274010093 CABLE, SOL/STARTERCABLE, SOL/STARTER
-
283083649 NUT, FLANGENUT, FLANGE
-
294010095 CABLE, BATT/ENG., BLACK.CABLE, BATT/ENG., BLACK.
-
307552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
317512315 BOLTBOLT
-
323022071 ISOLATOR-3/8-24M/M, 60 DUROISOLATOR-3/8-24M/M, 60 DURO
