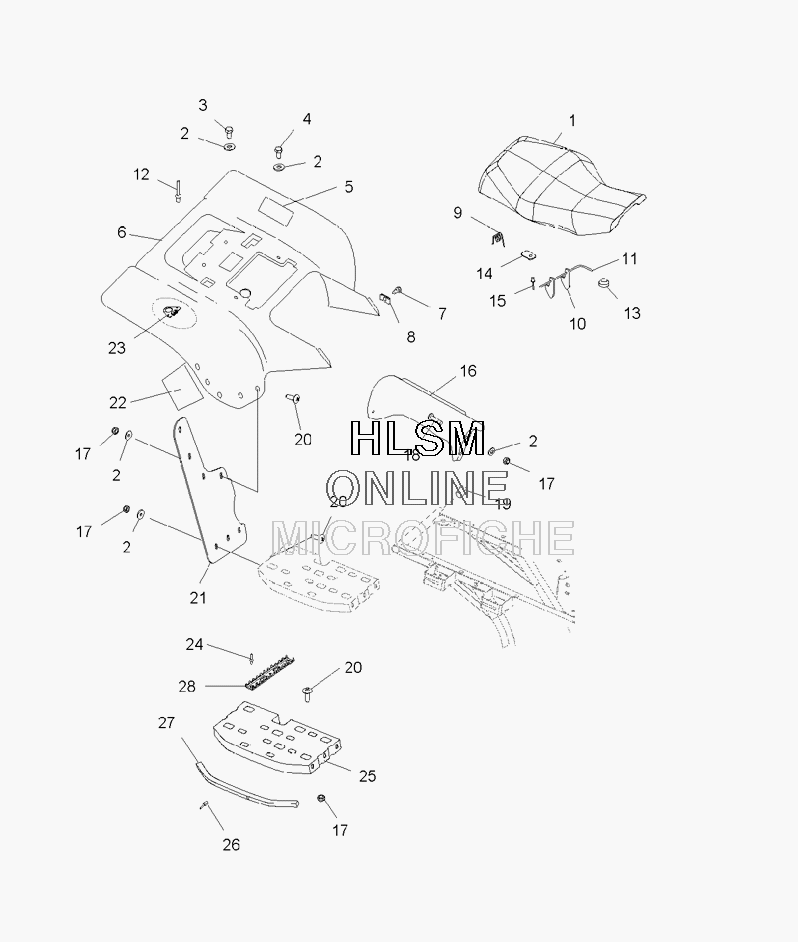

CAB - REAR для Polaris SCRAMBLER 500 (A09BG50AA) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2683329-070 ASM-SEAT, BLACK W/WHITE POLARIS (INCL. 9-11, 13-15)
    ASM-SEAT, BLACK W/WHITE POLARIS (INCL. 9-11, 13-15)
  • 1
    2683228-070 ASM-SEAT
    ASM-SEAT
  • 2
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 3
    7512232 BOLT
    BOLT
  • 4
    7512242 SCREW
    SCREW
  • 5
    5810991 FOIL, SMALL
    FOIL, SMALL
  • 6
    5430007-293 CAB-REAR, GEN 3, I.RED
    CAB-REAR, GEN 3, I.RED
  • 7
    7517916 SCR-1/4-20X3/4-TR/TX/TAP-M
    SCR-1/4-20X3/4-TR/TX/TAP-M
  • 8
    7670057 NUT, SPEED
    NUT, SPEED
  • 9
    7041607 SPRING, LATCH, LIGHT
    SPRING, LATCH, LIGHT
  • 10
    1040412 LATCH, SEATBACK
    LATCH, SEATBACK
  • 11
    5411392 CAP, SEATLATCH
    CAP, SEATLATCH
  • 12
    7621472 RIVET
    RIVET
  • 13
    5412067 BUMPER-RUBBER
    BUMPER-RUBBER
  • 14
    5211033 BRACKET, LEVER RETAINER
    BRACKET, LEVER RETAINER
  • 15
    7621403 BLIND RIVET
    BLIND RIVET
  • 16
    2632280 ASM., SHIELD MUFFLER/FOIL
    ASM., SHIELD MUFFLER/FOIL
  • 16
    5811230 FOIL
    FOIL
  • 17
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 18
    7517264 SCREW
    SCREW
  • 19
    5432831 PLUG, ENDCAP, RIBBED
    PLUG, ENDCAP, RIBBED
  • 20
    7512282 BOLT, BLACK
    BOLT, BLACK
  • 21
    5812134 MUDFLAP-REAR, LEFT HAND
    MUDFLAP-REAR, LEFT HAND
  • 22
    5812543 MUDFLAP-REAR, RIGHT HAND
    MUDFLAP-REAR, RIGHT HAND
  • 22
    5810957 FOIL
    FOIL
  • 23
    5220880 BRKT, REAR HOLDDOWN
    BRKT, REAR HOLDDOWN
  • 24
    7621472 RIVET
    RIVET
  • 25
    1014653-067 FOOTPAD, CDS, STEEL, BLACK
    FOOTPAD, CDS, STEEL, BLACK
  • 26
    7661825 RIVET,
    RIVET,
  • 27
    5431484 TRIM, FOOTREST
    TRIM, FOOTREST
  • 28
    5242525-067 BRKT, HEEL CLEAT, BLACK
    BRKT, HEEL CLEAT, BLACK
