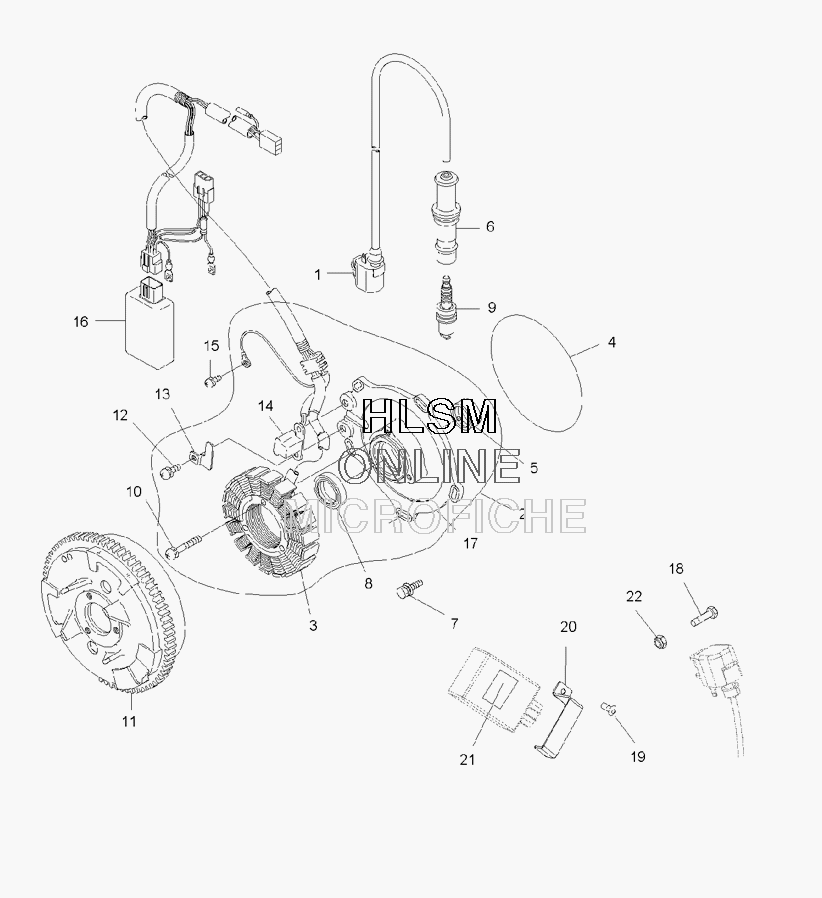

ELECTRICAL - IGNITION SYSTEM для Polaris SCRAMBLER 500 (A09BG50AA) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3089260 ASM-IGNITION COIL (INCL. 1, 6)
    ASM-IGNITION COIL (INCL. 1, 6)
  • 2
    3090061 ASM-PLATE (INCL. 5, 6, 8-13, 15, 17)
    ASM-PLATE (INCL. 5, 6, 8-13, 15, 17)
  • 3
    3089249 STATOR (INCL. 14)
    STATOR (INCL. 14)
  • 4
    3084978 O-RING
    O-RING
  • 5
    3084972 BEARING, METAL
    BEARING, METAL
  • 6
    3084980 SPARK PLUG CAP
    SPARK PLUG CAP
  • 7
    3081657 BOLT AND WASHER
    BOLT AND WASHER
  • 8
    3084973 SEAL, OIL
    SEAL, OIL
  • 9
    3070172 SPARK PLUG, BKR6E (4)
    SPARK PLUG, BKR6E (4)
  • 10
    3089251 SCREW AND WASHER
    SCREW AND WASHER
  • 11
    3089247 FLYWHEEL-W/RING GEAR
    FLYWHEEL-W/RING GEAR
  • 12
    3084976 SCREW AND WASHER
    SCREW AND WASHER
  • 13
    3089250 BAND-PULSE
    BAND-PULSE
  • 14
    3089254 COIL-PULSER
    COIL-PULSER
  • 15
    3081256 SCREW AND WASHER
    SCREW AND WASHER
  • 16
    3090079 CDI
    CDI
  • 17
    3089248 PLATE
    PLATE
  • 18
    7512007 BOLT
    BOLT
  • 19
    7512024 SCREW
    SCREW
  • 20
    5246747 BRKT-CDI, DIGITAL, LONG
    BRKT-CDI, DIGITAL, LONG
  • 21
    5810317 PAD, BULK FUEL
    PAD, BULK FUEL
  • 22
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
