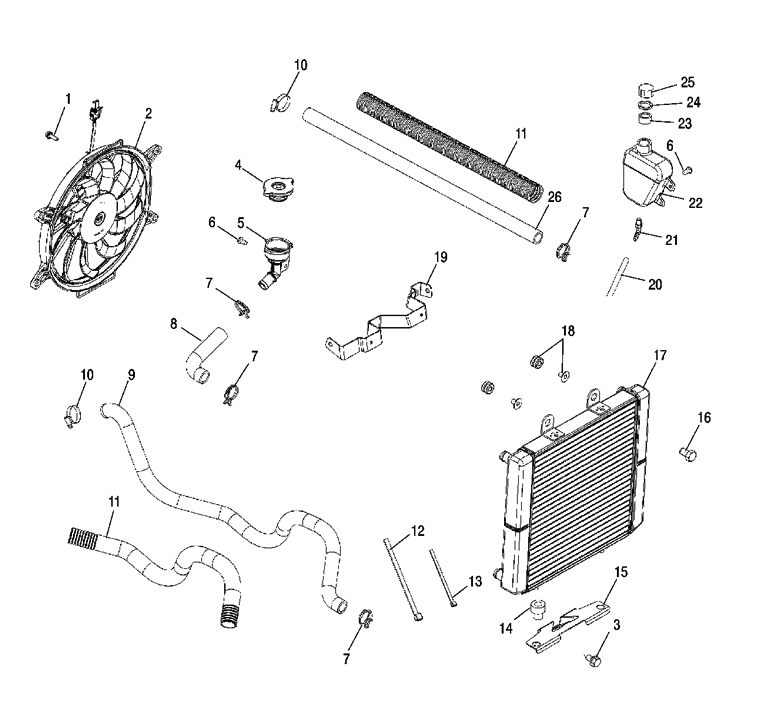

COOLING SYSTEM для Polaris SPORTSMAN X2 500 EFI (QUAD) (A07TH50EA) - 2007 года выпуска`
-
№АртикулНазвание
-
17517975 BOLT-M6 HEX HDBOLT-M6 HEX HD
-
22410383 ASM-FAN AND MOTOR,SPAL,11''ASM-FAN AND MOTOR,SPAL,11''
-
37517386 SCREWSCREW
-
41240044 CAP-PRESSURE,13 PSICAP-PRESSURE,13 PSI
-
55412402 FILLER NECKFILLER NECK
-
67512084 SCREWSCREW
-
77080826 CLAMP-ROTO CLIPCLAMP-ROTO CLIP
-
85412405 HOSE-FILLER NECKHOSE-FILLER NECK
-
95412860 HOSE-LOWER,ENGINEHOSE-LOWER,ENGINE
-
107080696 CLAMP,HOSE,1.25,WORM DRIVECLAMP,HOSE,1.25,WORM DRIVE
-
115521550 PLASTIC,HOSEGUARD 18'' (IF BUILT BEFORE 9/18/06)PLASTIC,HOSEGUARD 18'' (IF BUILT BEFORE 9/18/06)
-
115521550 PLASTIC,HOSEGUARD 18'' (IF BUILT AFTER 9/18/06)PLASTIC,HOSEGUARD 18'' (IF BUILT AFTER 9/18/06)
-
115521748 PLASTIC-HOSE GUARD 20'' (IF BUILT AFTER 9/18/0)PLASTIC-HOSE GUARD 20'' (IF BUILT AFTER 9/18/0)
-
127080138 CABLE TIECABLE TIE
-
137080492 CABLE TIE,11 INCHCABLE TIE,11 INCH
-
145410584 BUSHING-MOUNT,LOWER RADIATORBUSHING-MOUNT,LOWER RADIATOR
-
155247047-067 BRKT-RADIATOR,LOWER, BLACKBRKT-RADIATOR,LOWER, BLACK
-
167515179 SCREWSCREW
-
171240152 RADIATOR-CROSSFLOW (IF BUILT BEFORE 9/18/06)RADIATOR-CROSSFLOW (IF BUILT BEFORE 9/18/06)
-
171240305 RADIATOR-CROSSFLOW (IF BUILT AFTER 9/18/06)RADIATOR-CROSSFLOW (IF BUILT AFTER 9/18/06)
-
185411975 GROMMET/INSERT-ASMGROMMET/INSERT-ASM
-
195250769 BRKT-RADIATOR,UPPERBRKT-RADIATOR,UPPER
-
208450003-1525 LINE,FUEL,1/4 ID(1525 CM.)LINE,FUEL,1/4 ID(1525 CM.)
-
217052065 FITTING,90 DEGREEFITTING,90 DEGREE
-
225436936 TANK-SURGETANK-SURGE
-
235433774 CAP,PLUG9X(GRN),FLEX TEMPCAP,PLUG9X(GRN),FLEX TEMP
-
245810279 GASKETGASKET
-
255430743 CAP, OVERFLOWCAP, OVERFLOW
-
265412859 HOSE-UPPER,ENGINEHOSE-UPPER,ENGINE
