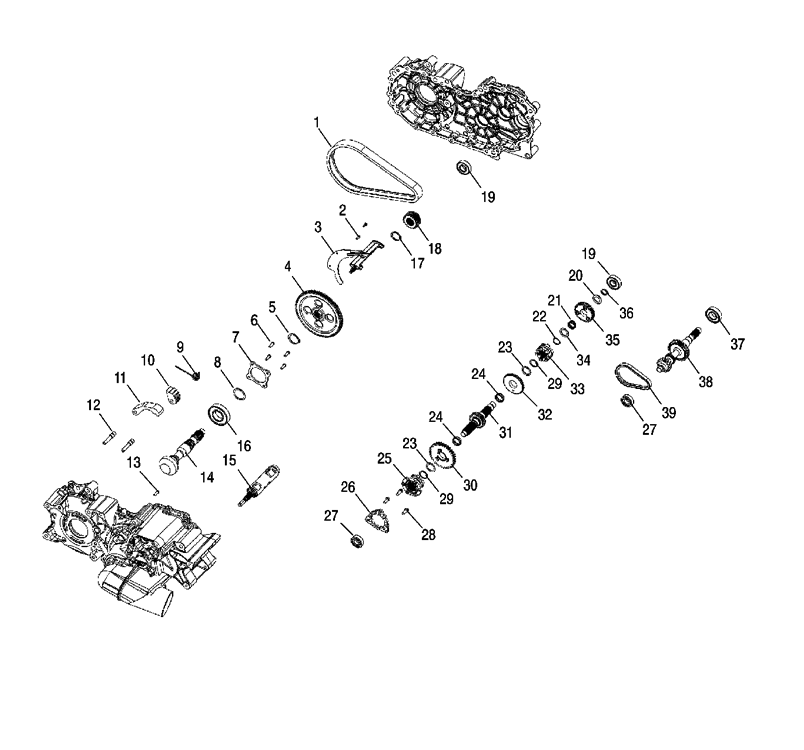

TRANSMISSION - INTERNALS для Polaris SPORTSMAN X2 500 EFI (QUAD) (A07TH50EA) - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    1332533 ASM-GEARCASE
    ASM-GEARCASE
  • 1
    3234057 CHAIN
    CHAIN
  • 2
    3233749 SCREW
    SCREW
  • 3
    3234061 OIL DEFLECTOR
    OIL DEFLECTOR
  • 4
    3234062 GEAR OUTPUT,91T
    GEAR OUTPUT,91T
  • 5
    3233364 RING,RETAINING
    RING,RETAINING
  • 6
    3234086 SCREW-TORX TRUSS HD
    SCREW-TORX TRUSS HD
  • 7
    3234063 COVER-CENTER DRIVE BEARING
    COVER-CENTER DRIVE BEARING
  • 8
    3234271 SHIM 1.700 X 1.385
    SHIM 1.700 X 1.385
  • 9
    3233431 SPRING,TORSION
    SPRING,TORSION
  • 10
    3233434 CAM,CHAIN TENSIONER
    CAM,CHAIN TENSIONER
  • 11
    3233433 SHOE,CHAIN TENSIONER
    SHOE,CHAIN TENSIONER
  • 12
    3233432 PIN,DOWEL
    PIN,DOWEL
  • 13
    3234086 SCREW-TORX TRUSS HD
    SCREW-TORX TRUSS HD
  • 14
    3234263 PINION, 13T CENTER DRIVE
    PINION, 13T CENTER DRIVE
  • 15
    3234360 DRUM,SHIFT
    DRUM,SHIFT
  • 16
    3234065 BEARING-BALL
    BEARING-BALL
  • 17
    3233699 RING-RETAINING
    RING-RETAINING
  • 18
    3234060 SPROCKET,19T
    SPROCKET,19T
  • 19
    3234423 BEARING, BALL 6204 R 20X47X14
    BEARING, BALL 6204 R 20X47X14
  • 20
    3233176 WASHER
    WASHER
  • 21
    3233718 BEARING,NDL,SPLIT CAGE
    BEARING,NDL,SPLIT CAGE
  • 22
    3234336 RING,RETAINING,BSCEXTERNAL0.84
    RING,RETAINING,BSCEXTERNAL0.84
  • 23
    3234248 WASHER,THRUST,1.300X.995X.065
    WASHER,THRUST,1.300X.995X.065
  • 24
    3233103 BEARING, NEEDLE
    BEARING, NEEDLE
  • 25
    3234257 DOG, L/P
    DOG, L/P
  • 26
    3233915 PLATE-PARK 12 FACE
    PLATE-PARK 12 FACE
  • 27
    3234274 BEARING, BALL 6203 C3 17X40X12
    BEARING, BALL 6203 C3 17X40X12
  • 28
    3234247 SCREW,TAPPINGHEXHEAD1/4-20X.75
    SCREW,TAPPINGHEXHEAD1/4-20X.75
  • 29
    3233306 RING,RETAINING
    RING,RETAINING
  • 30
    3234291 GEAR, 33T 6-FACE
    GEAR, 33T 6-FACE
  • 31
    3234280 SHAFT, REVERSE 26T
    SHAFT, REVERSE 26T
  • 32
    3234290 SPROCKET 38T 6-FACE
    SPROCKET 38T 6-FACE
  • 33
    3234258 ENGAGEMENT DOG 6 FACE
    ENGAGEMENT DOG 6 FACE
  • 34
    3233855 WASHER
    WASHER
  • 35
    3234352 GEAR, SPUR
    GEAR, SPUR
  • 36
    3234067 RING-RETAINING
    RING-RETAINING
  • 37
    3233019 BEARING
    BEARING
  • 38
    3234348 SHAFT,INPUT
    SHAFT,INPUT
  • 39
    3234264 CHAIN, .25P X .40W X 50L
    CHAIN, .25P X .40W X 50L
