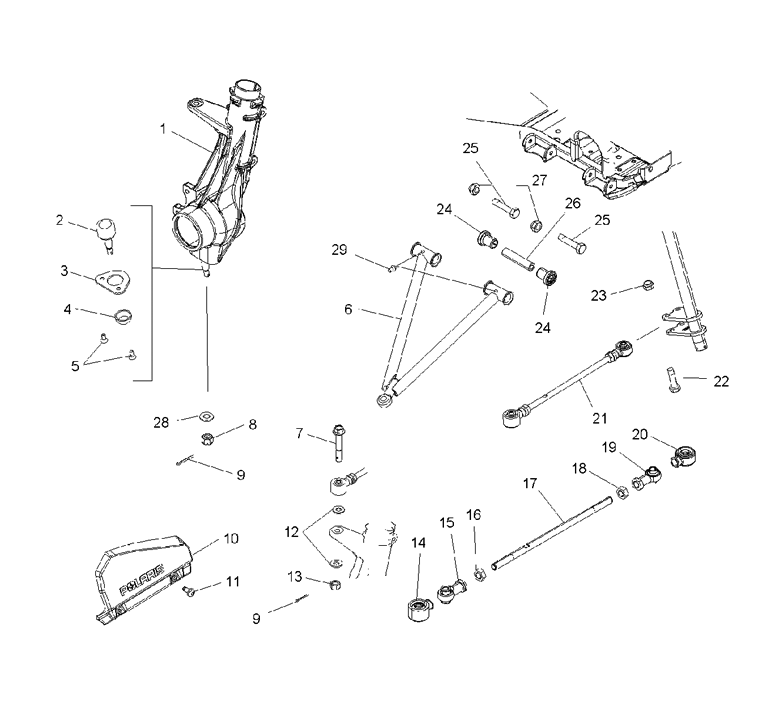

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris SPORTSMAN X2 500 EFI (QUAD) (A07TH50EA) - 2007 года выпуска

  • №
    Артикул
    Название
  • 2
    7061130 BALLJOINT-GREASELESS,STRUT (IF BUILT BEFORE 10/27/06)
    BALLJOINT-GREASELESS,STRUT (IF BUILT BEFORE 10/27/06)
  • 2
    7061153 BALLJOINT-GREASELESS,STRUT (IF BUILT AFTER 10/27/06)
    BALLJOINT-GREASELESS,STRUT (IF BUILT AFTER 10/27/06)
  • 3
    5211121 BRKT, BALL JOINT
    BRKT, BALL JOINT
  • 4
    5412658 BOOT-BALLJOINT,GREASELESS,STRT
    BOOT-BALLJOINT,GREASELESS,STRT
  • 5
    7512284 BOLT, SOCKET
    BOLT, SOCKET
  • 6
    1542340-067 WELD-A-FRAME,FLARED,LH,BLK
    WELD-A-FRAME,FLARED,LH,BLK
  • 6
    1542341-067 WELD-A-FRAME,FLARED,RH,BLK
    WELD-A-FRAME,FLARED,RH,BLK
  • 7
    7517909 BOLT-M10X1.25X65,HX WASH HD
    BOLT-M10X1.25X65,HX WASH HD
  • 8
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 9
    7661203 PIN,COTTER
    PIN,COTTER
  • 10
    5436999-070 SHIELD-CV,FRONT,BASIC, LEFT HAND, BLACK
    SHIELD-CV,FRONT,BASIC, LEFT HAND, BLACK
  • 10
    5437000-070 SHIELD-CV,FRONT,BASIC, RIGHT HAND, BLACK
    SHIELD-CV,FRONT,BASIC, RIGHT HAND, BLACK
  • 11
    7621341 RIVET,
    RIVET,
  • 12
    7556099 WASHER
    WASHER
  • 13
    7547177 NUT-M10X1.25-HX-LOCK-Y
    NUT-M10X1.25-HX-LOCK-Y
  • 14
    5412929 BOOT-SEAL,ROD END,10MM
    BOOT-SEAL,ROD END,10MM
  • 15
    7061138 ROD-END,10MM,1/2-20LEFT HAND,42 DEG
    ROD-END,10MM,1/2-20LEFT HAND,42 DEG
  • 16
    7547028 NUT,JAM, LEFT HAND
    NUT,JAM, LEFT HAND
  • 17
    5134242 ROD-TIE,1/2-20X11.45
    ROD-TIE,1/2-20X11.45
  • 18
    7542711 NUT-JAM
    NUT-JAM
  • 19
    7061139 ROD-END,3/8,1/2-20RIGHT HAND,44DEG
    ROD-END,3/8,1/2-20RIGHT HAND,44DEG
  • 20
    5412928 BOOT-SEAL,ROD END,1/2 IN
    BOOT-SEAL,ROD END,1/2 IN
  • 21
    1822851 ASM-TIE ROD,1/2-20X14.16 (INCL.14-20)
    ASM-TIE ROD,1/2-20X14.16 (INCL.14-20)
  • 22
    7515415 SCREW
    SCREW
  • 23
    7542439 NUT,NYLOK
    NUT,NYLOK
  • 24
    5436832 BUSHING-CONTROL ARM,1.285
    BUSHING-CONTROL ARM,1.285
  • 25
    7518523 SCR-3/8-24X3 3/4 HXFLG GR5-Y
    SCR-3/8-24X3 3/4 HXFLG GR5-Y
  • 26
    5134882 SHAFT-A-ARM,SHORT
    SHAFT-A-ARM,SHORT
  • 27
    7547263 NUT-3/8-24 NYLOK
    NUT-3/8-24 NYLOK
  • 28
    7555957 WASHER (IF BUILT BEFORE 10/27/06)
    WASHER (IF BUILT BEFORE 10/27/06)
  • 29
    7080433 FITTING,LUBRICATION,THREADED
    FITTING,LUBRICATION,THREADED
