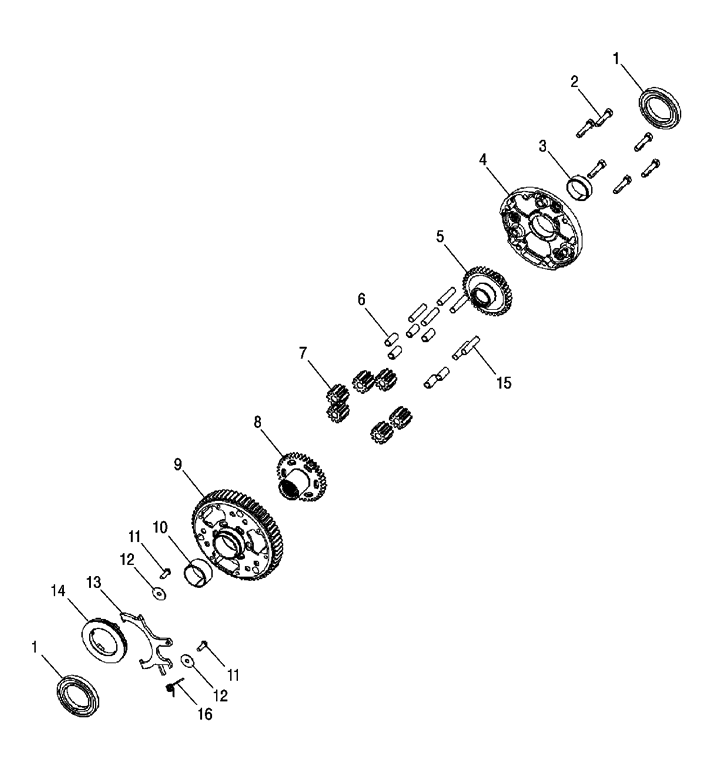

TRANSMISSION - DIFFERENTIAL для Polaris SPORTSMAN X2 500 EFI (QUAD) (A07TH50EA) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1332533 ASM-GEARCASE
    ASM-GEARCASE
  • 1
    3234275 BEARING, BALL 50 X 80 X 10
    BEARING, BALL 50 X 80 X 10
  • 2
    3234267 SCREW, HH, 5/16-24X1.5
    SCREW, HH, 5/16-24X1.5
  • 3
    3234241 PLAIN,BEARING 40X44X15
    PLAIN,BEARING 40X44X15
  • 4
    3234282 COVER, CARRIER MACHINED
    COVER, CARRIER MACHINED
  • 5
    3234363 SIDE, GEAR 36T SUB ASSEMBLY
    SIDE, GEAR 36T SUB ASSEMBLY
  • 6
    3234239 BEARING,PLAIN,10X12X25
    BEARING,PLAIN,10X12X25
  • 7
    3234283 SHAFT, PLANET
    SHAFT, PLANET
  • 8
    3234362 SIDE,GEAR 36T DISCONNECT SUBASM
    SIDE,GEAR 36T DISCONNECT SUBASM
  • 9
    3234281 SPROCKET, CARRIER 59T
    SPROCKET, CARRIER 59T
  • 10
    3234240 PLAIN,BEARING 40X44X25
    PLAIN,BEARING 40X44X25
  • 11
    3234086 SCREW-TORX TRUSS HD
    SCREW-TORX TRUSS HD
  • 12
    3234447 WASHER
    WASHER
  • 13
    3234285 FORK, PIVOT SHIFT REAR DIFF
    FORK, PIVOT SHIFT REAR DIFF
  • 14
    3234284 DOG, ENGAGEMENT
    DOG, ENGAGEMENT
  • 15
    3234238 PIN,DOWEL,10X45
    PIN,DOWEL,10X45
  • 16
    3234276 SPRING, TORSION RETURN
    SPRING, TORSION RETURN
